User manual Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26

Operating instructions and pdf manual for use - Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26 User manual, User manual Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26, Lectrosonics, UCR100, 100, Series, UHF, Port


User manual for Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26

Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26
  • Manufacturer: Lectrosonics
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Receivers
  • Safety instructions
  • Startup and operation of the wireless receivers
  • Tips for setting up your Lectrosonics
  • Settings and expert assistance
  • Contact Lectrosonics service
  • Troubleshooting
  • Warranty information
  • Price: 556 USD
We recommend checking out our discussion threads on the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26, which address similar problems with connecting and setting up Wireless Receivers Lectrosonics.



User manual for the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26

The user manual for the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Receivers.

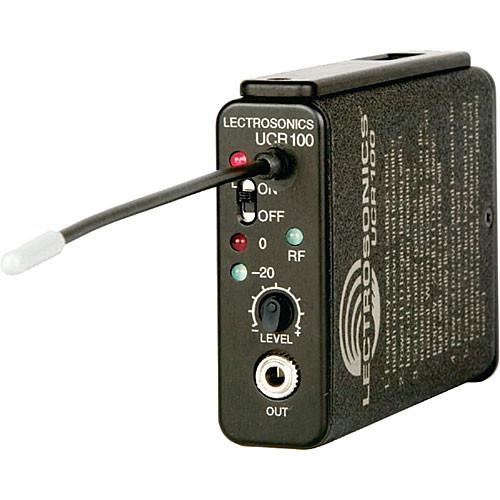

The Lectrosonic UCR100 is a compact wireless microphone receiver designed for easy, convenient operation with smaller DV camcorders, without sacrificing the quality that has become common place with Lectrosonic. The UCR100 offers over 256 selectable frequencies over a 25.6MHz band to avoid interference from local RF sources.Matching transmitters provide a full 100mW of output power, resulting in clean frequency transmission without virtually any drop-outs.
If you own a Lectrosonics wireless receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26Download user manual for Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26
(PDF file, 0.97 MB)
Additional parameters of the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26:
Type of Receiver UCR100 UHF Frequency agile Receiver
RF Carrier Frequency Range 537.6 to 608MHz, 614 to 793.5MHz (in 10 blocks)
Approx. Working Range 300' in adverse conditions
1,000' in ideal conditions
Overall Frequency Response 50Hz to 18kHz (+/- 2dB)
Signal-to-Noise Ratio 105dB (overall system)
# Of Channels 256 per block (using 26MHz wide band)
Type of Outputs 1/8" Mini connector
Headphone Monitoring No
Power Requirements 60mA
Battery Type/Approx. Life 8 Hours with 9V alkaline battery
15 Hours with 9V lithium battery
Display frequency selection is achieved via rotary dials located on the side of the unit
Mounting Options Camera or Belt Mount
Antenna Type 1/4 wave vertical (fixed)
Dimensions (HxWxD) 3.6 x 2.4 x 0.8" (91.44 x 60.96 x 2.032mm)
Weight 7.3 oz (180g)(with battery)
Packaging Info
Package Weight 0.95 lb
Box Dimensions (LxWxH) 13.3 x 5.4 x 3.5"
The user manual for the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26 can be downloaded in .pdf format if it did not come with your new wireless receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lectrosonics users keep a unique electronic library for Lectrosonics wireless receiverss, where you can use our link to download the user manual for the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26.

The user manual lists all of the functions of the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26, all the basic and advanced features and tells you how to use the wireless receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lectrosonics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lectrosonics UCR100 - 100 Series UHF Portable Receiver UCR100-26. User manuals are also available on the Lectrosonics website under Pro Audio - Location Sound - Wireless Receivers.
