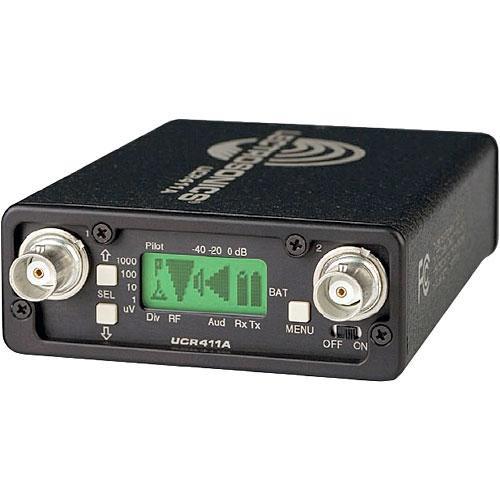

The Lectrosonics UCR411 is a portable, camera mountable receiver designed for professional audio applications in the field or indoors. The receiver is completely compatible with all 400 series wireless transmitters and provides 256 selectable UHF frequencies across a 25.6MHz tuning range. Smart Diversity reception reduces RF interference and dropout and a built-in RF spectrum analyzer searches across the entire 25.6MHz tuning range, locating the strongest possible frequencies in the area. The clear frequencies are marked and displayed on the back-lit LCD. Balanced XLR output provides maximum output gain with minimal noise and the receiver is powered with internal 9V batteries or an external DC power supply.
If you own a Lectrosonics wireless receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-470 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-470:
| Type of Receiver || Diversity / Triple conversion, superheterodyne |
| RF Carrier Frequency Range || Frequency Block 470 |
| Approx. Working Range || 300' in adverse conditions |
1,000' in ideal conditions
| Overall Frequency Response || 30Hz to 20kHz (+/- 1dB) |
| Signal-to-Noise Ratio || 103.5 to 113dB (varies with SmartNR setting) |
| # Of Channels || 256 frequencies in 100kHz steps per 26MHz wide block |
| Type of Outputs || Balanced XLR Male Output |
| Headphone Monitoring || No |
| Power Requirements || Ext DC: Minimum 10 to Maximum 18VDC; 1.6W, 100mA at 12VDC |
Int Batt: 9V alkaline or lithium (90mA @ 9V, 120mA @ 6V)
| Battery Type/Approx. Life || 9V Alkaline: 3.5 hours continuous, 4 hours intermittent |
9V Lithium: Up to 12 hours (continuous and intermittent usage are the same)
| Display || Multi-Function Back-lit LCD display |
| Mounting Options || Camera or Belt Mount |
| Antenna Type || 1/4 wave |
| Dimensions || 3.23 x 1.25 x 4.64" (82.042 x 31.75 x 117.856mm) WxHxD |
| Weight || 14 oz (397g) (with batteries) |
| Package Weight || 3.3 lb |
| Box Dimensions (LxWxH) || 14.1 x 10.7 x 4.2" |
