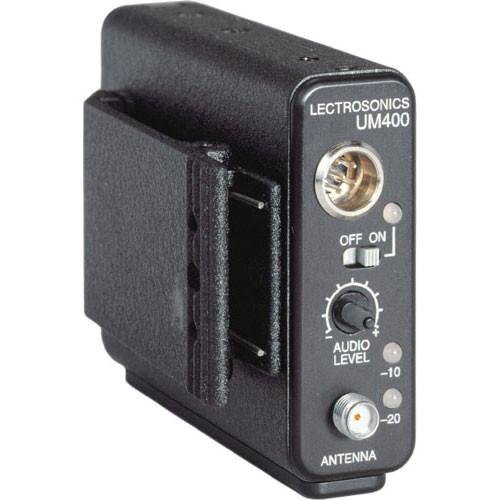

The Lectrosonics UM400a is a UHF bodypack transmitter for use with the UCR411 receiver. The transmitter features 256 user selectable UHF frequencies and digital hybrid signal transmission for optimum range while minimizing noise. Incoming audio signal is digitized at 24-bit resolution, eliminating the noise and artifacts associated with analog compandors.
If you own a Lectrosonics wireless transmitters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics UM400a - UHF Bodypack Transmitter UM400A-22 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lectrosonics UM400a - UHF Bodypack Transmitter UM400A-22Download user manual for Lectrosonics UM400a - UHF Bodypack Transmitter UM400A-22
(PDF file, 1.15 MB)
Additional parameters of the Lectrosonics UM400a - UHF Bodypack Transmitter UM400A-22:
Frequency Selection 256 frequencies in 100 kHz steps
RF Power Output 100 mW (nominal)
Pilot Tone 25 to 32 kHz; 5 kHz deviation
Frequency Stability ± 0.002%
Deviation ± 75 kHz (max)
Spurious Radiation 90 dB below carrier
Equivalent Input Noise -120 dBV (A-weighted)
Input Level Nominal 2 mV to 300 mV, before limiting. Greater than 1 V maximum, with limiting
Input Impedance Dynamic Mic: 300 ohms
Electret Lavaliere: Input is virtual ground with servo adjusted constant current bias
Line Level: 2.7 kOhms
Input Limiter Dual envelope "soft" limiter; greater than 30 dB range
Gain Control Range 43 dB; semi-log rotary control
Modulation Indicators Dual bicolor LEDs indicate modulation of -20, -10, 0, and +10 dB referenced to full modulation
Frequency Response 32 Hz to 20 kHz (+/-1 dB)
THD 0.2% (typical)
SNR SmartNR OFF: 103.5 (no limiting), 108.0 (w/limiting)
SmartNR NORMAL: 107.0 (no limiting), 111.5 (w/limiting)
SmartNR FULL: 108.5 (no limiting), 113.0(w/limiting)

(Note: The dual envelope "soft" limiter provides good handling of transients using variable attack and release time constants. Gradual onset of limiting in the design begins below full modulation, which reduces the measured figure for SNR without limiting by 4.5 dB)
Dynamic Range 125 dB (with full Tx limiting) low frequency roll-off (input)
Adjustment -18 dB/octave; adjustable from 35 to 150 Hz
Controls Two position "ON-OFF" power switch
Audio input gain knob
Low frequency roll-off pot on side panel
Two 16-position rotary switches adjust frequency
Audio Input Jack Switchcraft 5-pin locking (TA5F)
Antenna Detachable, flexible wire supplied
50 ohm port allows connection to test equipment
Battery Precision compartment auto-adjusts to accept any known 9 volt battery
Battery Life 5 hours (alkaline); 10 hours (lithium)
Emission Emission Designator: 180KF3E
Dimensions 3.17 x 2.48 x 0.84" (80.5 x 63.0 x 21.3 mm)
Weight 6.98 oz (198 g), (including battery & antenna)
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 9.95 x 7.9 x 2.9"
