User manual Leica M-A (Typ 127) Rangefinder Camera (Black) 10370

Operating instructions and pdf manual for use - Leica M-A (Typ 127) Rangefinder Camera (Black) 10370 User manual, User manual Leica M-A (Typ 127) Rangefinder Camera (Black) 10370, Leica, M-A, Typ, 127, Rangefinder, Camera, Black, 10370,


User manual for Leica M-A (Typ 127) Rangefinder Camera (Black) 10370

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Leica M-A (Typ 127) Rangefinder Camera (Black) 10370
  • Manufacturer: Leica
  • Basic description and contents of package
  • Product classification: Photography - Film Cameras - 35mm Cameras
  • Safety instructions
  • Startup and operation of the 35mm cameras
  • Tips for setting up your Leica
  • Settings and expert assistance
  • Contact Leica service
  • Troubleshooting
  • Warranty information

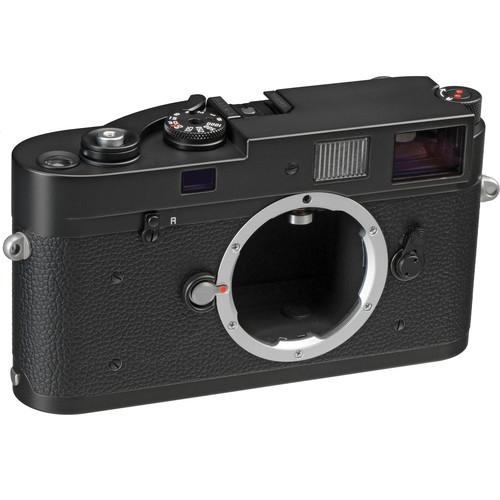

Leica M-A (Typ 127) Rangefinder Camera (Black) 10370 Leica M-A (Typ 127) Rangefinder Camera (Black) 10370
Click to enlarge image

We recommend checking out our discussion threads on the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370, which address similar problems with connecting and setting up 35mm Cameras Leica.



User manual for the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370

The user manual for the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370 provides necessary instructions for the proper use of the product Photography - Film Cameras - 35mm Cameras.

Focusing on the founding principles of photography, the Leica M-A (Typ 127) is a 35mm film rangefinder camera characterized by its simplicity and unobtrusiveness. As a completely mechanical camera, no battery is required for operation and the only exposure control offered is a choice of shutter speed, up to 1/1000 sec. A large, bright 0.72x-magnification viewfinder pairs with a precise rangefinder mechanism to enable comparative manual focusing control with M-mount lenses, along with parallax-corrected compositional framing. The body features black-colored chromed brass top and bottom covers, as well as an all-metal body design, to offer both durability as well as an aesthetic, minimal appearance. Designed for intuitiveness and efficient operability, the precision afforded by the M-A serves to complement a straight-forward working method.
If you own a Leica 35mm cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370:
Lens Mount Leica M bayonet
Lens System Leica M lenses from 16-135mm focal length
Camera
Type Mechanical rangefinder
Film Format 35 mm
Exposure Control Manual (shutter speed on body only; aperture on attached lens)
External Flash Connection Hot shoe with center contact
Flash Synchronization With first curtain; up to 1/50 sec.
Shutter Type Focal plane; mechanical rubber blanket slotted shutter with horizontal movement
Shutter Speed Range 1 to 1/1000 sec. (in 1 EV increments), bulb
Viewfinder
Type Bright line frame viewfinder with automatic parallax correction
Eyepiece Calibrated to -0.5 dpt (optional corrective lenses available)
Parallax Correction Horizontal and vertical offset between viewfinder and lens axis automatically compensated for according to relevant distance setting

At the shortest possible distance for each focal length, the bright line frame size corresponds to an image of approx. 23 x 35 mm. When set to infinity, depending on the focal length between 9% (28mm) and 23% (135mm) more is captured by the film than is shown in the corresponding bright line frame
Magnification 0.72x
Rangefinder Basis 49.9 mm (mechanical measurement basis of 69.25 mm x viewfinder magnification of 0.72x)
Split or superimposed image rangefinder shown as bright field in the center of the viewfinder image
Physical
Film Loading Manual film loading after opening the bottom cover and the rear panel
Film Wind Forward: Manual winding with quick wind lever (compatible with optional motorized winders)
Rewind: Manually with pull-out rewind button, after moving the R lever on front of camera
Tripod Mount 1/4"
Dimensions 5.4 x 1.5 x 3.0" / 138 x 38 x 77 mm
Weight 1.3 lb / 578 g
Packaging Info
Package Weight 4.35 lb
Box Dimensions (LxWxH) 8.7 x 8.6 x 6.5"
The user manual for the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370 can be downloaded in .pdf format if it did not come with your new 35mm cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leica users keep a unique electronic library for Leica 35mm camerass, where you can use our link to download the user manual for the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370.

The user manual lists all of the functions of the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370, all the basic and advanced features and tells you how to use the 35mm cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leica M-A (Typ 127) Rangefinder Camera (Black) 10370. User manuals are also available on the Leica website under Photography - Film Cameras - 35mm Cameras.
