User manual Leica M Digital Rangefinder Camera (Body Only, Black) 10770

Operating instructions and pdf manual for use - Leica M Digital Rangefinder Camera (Body Only, Black) 10770 User manual, User manual Leica M Digital Rangefinder Camera (Body Only, Black) 10770, Leica, M, Digital, Rangefinder, Camera, Body, Only, Bl


User manual for Leica M Digital Rangefinder Camera (Body Only, Black) 10770

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Leica M Digital Rangefinder Camera (Body Only, Black) 10770
  • Manufacturer: Leica
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Leica
  • Settings and expert assistance
  • Contact Leica service
  • Troubleshooting
  • Warranty information

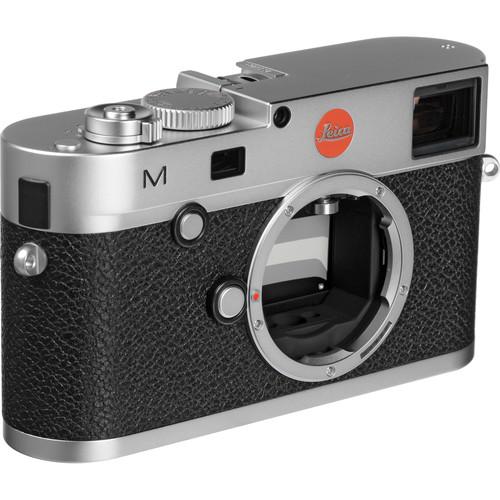

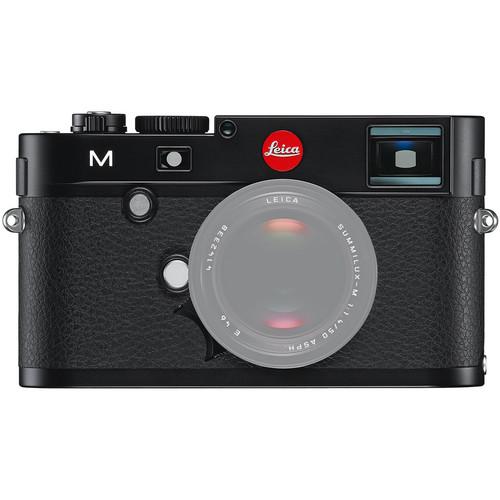

Leica M Digital Rangefinder Camera (Body Only, Black) 10770 Leica M Digital Rangefinder Camera (Body Only, Black) 10770
Click to enlarge image

We recommend checking out our discussion threads on the Leica M Digital Rangefinder Camera (Body Only, Black) 10770, which address similar problems with connecting and setting up Mirrorless System Cameras Leica.



User manual for the Leica M Digital Rangefinder Camera (Body Only, Black) 10770

The user manual for the Leica M Digital Rangefinder Camera (Body Only, Black) 10770 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

The black M Digital Rangefinder Camera from Leica is a traditionally-styled M-series camera that blends elements of Leica's celebrated past with contemporary imaging technology. This camera features a full-frame Leica Max 24MP CMOS sensor and Maestro image processor to realize rich image quality with low noise levels and smooth color and tonal gradations. The sensor and processor combination also avails the ability to shoot continuously up to 3 fps, record full HD 1080p video, and enable a top sensitivity of ISO 6400. Unique among digital cameras, the M maintains Leica's preference for a rangefinder design and incorporates a 0.68x optical viewfinder with split and superimposed manual focusing and automatic parallax correction. Alternatively, the M is also the first M-series camera to integrate live view shooting capabilities, with the added convenience of being able to check focus and composition on the rear 3.0" 920k-dot LCD monitor.

As with past M-series cameras, the M retains the ability to utilize the vast network of M-mount lenses and is also compatible with Leica R-mount lenses via an optional adapter. When working in live view, and since focusing operation is entirely manual, focus peaking and 10x live view zoom can be utilized to ensure critical focus. While using the optical viewfinder, internal LEDs display shooting and camera information and frame lines are displayed to match lens' focal lengths with focusing accuracy to 6.6'.

The M's body design is constructed from die-cast magnesium alloy and wrapped in a synthetic leather covering while the top and bottom plates are made from milled brass and the rear LCD is covered with scratch-resistant Corning Gorilla Glass. Altogether, this durable design is built for enhanced strength and resistance to splashes, dust, and inclement conditions. An integrated thumb rest, along with a minimal, yet intuitive ergonomic control scheme avail quick access to necessary camera controls. Additionally, a redesigned 1800mAh lithium-ion battery permits increased working times and reliability for all-day shooting.
If you own a Leica mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica M Digital Rangefinder Camera (Body Only, Black) 10770 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica M Digital Rangefinder Camera (Body Only, Black) 10770:
Specifications
    Imaging
    Lens Mount Leica M
    Camera Format Full-Frame
    Pixels 24 Megapixel
    Max Resolution 24 MP: 5952 x 3976
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 36 x 24 mm
    File Formats Still Images: DNG, JPEG
    Movies: MJPEG, MOV
    Memory Card Type SD
    SDHC
    SDXC
    AV Recording
    Video Recording Yes, NTSC/PAL
    Resolution 1920 x 1080: 25 fps, 24 fps
    1280 x 720: 25 fps, 24 fps
    640 x 480: 30 fps, 25 fps, 24 fps
    Video Format High Definition
    MOV
    1920 x 1080p / 25 fps
    1920 x 1080p / 24 fps
    High Definition
    MOV
    1280 x 720p / 25 fps
    1280 x 720p / 24 fps
    Standard Definition
    MOV
    640 x 480p / 30 fps
    640 x 480p / 25 fps
    640 x 480p / 24 fps
    Aspect Ratio 4:3, 16:9
    Audio Recording Built-in Mic: With Video, Mono
    Optional External Mic: With Video, Stereo
    Focus Control
    Focus Type Manual
    Focus Mode Manual Focus (M)
    Viewfinder/Display
    Viewfinder Type Optical
    Viewfinder Magnification Approx. 0.68x
    Diopter Adjustment - 3 to +3 m
    Display Screen 3" Rear Screen   LCD (920,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 200-6400 (Extended Mode: 100-6400)
    Shutter Type: Electronic & Mechanical
    Speed: 60 - 1/4000 seconds,  Bulb Mode
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Manual
    Compensation: -3 EV to +3 EV (in 1/3 EV steps)
    White Balance Modes Auto, Cloudy, Daylight, Flash, Fluorescent (Natural White), Fluorescent (White), Kelvin, Manual, Shade, Tungsten
    Burst Rate Up to 3 fps at 24 MP
    Flash
    Built-in Flash No
    Max Sync Speed 1 / 180 seconds
    External Flash Connection Hot Shoe
    Performance
    Start-up Time 0.7 seconds
    Continuous Shooting Up to 3 fps
    Self Timer 2 seconds, 12 seconds
    Power
    Battery 1x Rechargeable Lithium-ion Battery Pack, 7.4 VDC, 1800 mAh
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Physical
    Dimensions (WxHxD) 5.5 x 3.1 x 1.7" / 139.0 x 80.0 x 42.0 mm
    Weight 1.5 lb / 680 g
    Packaging Info
    Package Weight 5.55 lb
    Box Dimensions (LxWxH) 8.9 x 8.6 x 6.6"
    The user manual for the Leica M Digital Rangefinder Camera (Body Only, Black) 10770 can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leica users keep a unique electronic library for Leica mirrorless system camerass, where you can use our link to download the user manual for the Leica M Digital Rangefinder Camera (Body Only, Black) 10770.

    The user manual lists all of the functions of the Leica M Digital Rangefinder Camera (Body Only, Black) 10770, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leica service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leica M Digital Rangefinder Camera (Body Only, Black) 10770. User manuals are also available on the Leica website under Photography - Digital Cameras - Mirrorless System Cameras.
