The user manual for the Leica Macro-Elmar-M 90mm f/4 Lens 11670 provides
necessary instructions for the proper use of the product Photography - Lenses - Rangefinder Lenses.

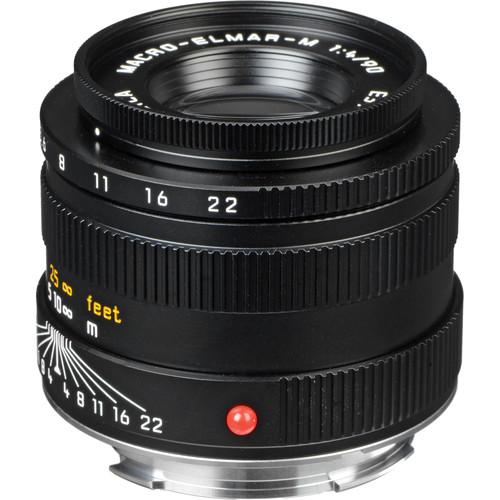

The Leica Macro-Elmar-M 90mm f/4 Lens is a prime telephoto lens featuring a retractable design to maintain a compact, portable form factor. The 90mm focal length and manual focus design is well-suited to portraiture applications, as well as for reportage from greater distances. When working with close-up subject matter, the lens is able to achieve a minimum focusing distance of 2.6' with a reproduction ratio of 1:6.7.
The simple lens design incorporates four elements within four groups, and each element has been coated with a multi-layered anti-reflective coating to reduce lens flare and ghosting for color neutrality and increased clarity.
When coupled with the optional Macro-Adapter-M and used on a camera featuring live view, this lens is also able to achieve a minimum focusing distance of 16.1" with a reproduction ratio of 1:2. The lens' retractable design also enables it to maintain infinity focus when used with the Macro-Adapter-M.
If you own a Leica rangefinder lenses and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Leica Macro-Elmar-M 90mm f/4 Lens 11670 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica Macro-Elmar-M 90mm f/4 Lens 11670:
Specifications
Focal Length
90mm
Aperture
f/4 to f/22
Camera Mount Type
Leica M quick-change bayonet
Angle of View
27°
Smallest Object Field
6.7 x 9.6" / 169 x 244 mm
Entrance Pupil
0.9" / 22 mm (position from bayonet flange)
Minimum Focus Distance
2.6' / 80 cm
Reproduction Ratio
1:6.7
Optical Design
4 elements in 4 groups
Focus
Manual
Filter Thread
39 mm
Dimensions (Ø x L)
2 x 2.3" / 52 x 59 mm (lens extended, in working position) 2 x 1.6" / 52 x 41 mm (lens collapsed, in storage position)
