User manual Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US

Operating instructions and pdf manual for use - Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US User manual, User manual Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US, Lenovo, 12.5, ThinkPad, Yoga, 12, Multi-Touch, 20DL0037US,


User manual for Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US

Lenovo 12.5
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Laptops - Ultrabooks
  • Safety instructions
  • Startup and operation of the ultrabooks
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
Lenovo 12.5 Lenovo 12.5 Lenovo 12.5 Lenovo 12.5 Lenovo 12.5 Lenovo 12.5 Lenovo 12.5 Lenovo 12.5 Lenovo 12.5
Click to enlarge image

We recommend checking out our discussion threads on the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US, which address similar problems with connecting and setting up Ultrabooks Lenovo.



User manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US

The user manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Ultrabooks.

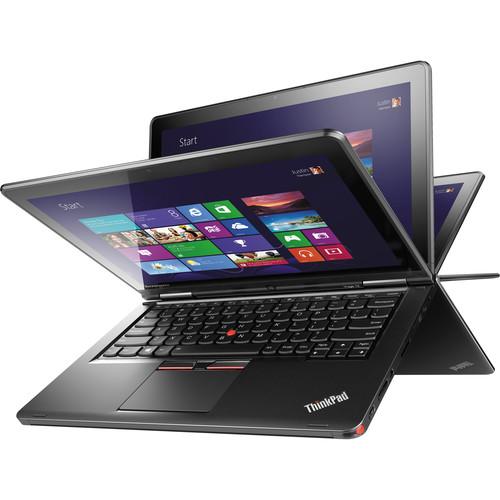

The 12.5" ThinkPad Yoga 12 Multi-Touch Ultrabook from Lenovo is a system whose screen can rotate 360° to vary between laptop, tent, stand, and tablet mode. That means you can select a specific mode based on what you need to do and combine that mode with the keyboard and/or the 10-point multi-touch control to help maximize your productivity.

Constructed from magnesium alloy and polyphenylene sulfide, the Yoga 12 is powered by a 2.2 GHz Intel Core i5-5200U Dual-Core processor which allows you to run multiple applications simultaneously and features a burst speed of up to 2.7 GHz. The onboard 4GB of 1600 MHz PC3-12800 DDR3L RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. The 12.5" anti-glare multi-touch IPS display supports 10-finger gestures and features an HD 1366 x 768 native resolution, LED-backlighting, 300 cd/m2 brightness, and a 16:9 aspect ratio. The integrated Intel HD Graphics 5500 delivers a sharp, clear picture and you'll also be able to output video to an external display using the system's Mini HDMI port, which supports dual independent displays with a maximum resolution of 1920 x 1080 @ 60 Hz.

For long term storage of your files, the Yoga 12 has a 500GB 7200 rpm SATA III hard drive. If you want to add external peripherals, the Yoga 12 offers 2 x USB 3.0 ports, once of which doubles as an always-on charging port. Network connectivity is achieved using 802.11ac Wi-Fi and Bluetooth 4.0 technology will also allow you to connect additional compatible peripherals. Other integrated features include a 4-in-1 SD & MMC media card reader, a 720p webcam, dual array microphones, and 2 x 1.5W stereo speakers that support HD audio and Dolby Home Theater v4.

The Yoga 12 operates using an included 45W AC adapter and an 8-cell/47Wh lithium-polymer battery that will last for up to 8 hours before recharging is required. The installed operating system is Windows 8.1 Pro (64-bit).
If you own a Lenovo ultrabooks and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US:
Specifications
    Performance
    Processor Intel Core i5-5200U Dual-Core
    Base Clock Speed 2.2 GHz
    Max Boost Speed 2.7 GHz
    L3 Cache 1 x 3 MB
    System Bus 5 GT/s
    Memory Installed: 4 GB
    Memory Type  PC3-12800 1600 MHz DDR3L SDRAM
    Graphics Type Integrated
    Graphics Card Intel HD Graphics 5500
    Display
    Panel Type IPS
    Size 12.5"
    Aspect Ratio 16:9
    Native Resolution 1366 x 768
    Touchscreen Yes
    Finish Matte
    Brightness 300 cd/m2
    External Resolution Up to 1920 x 1080
    Drives
    Bays 1 x 2.5" (7 mm)
    Storage Drive 1 x 500 GB 7,200 rpm HDD; SATA
    Optical Drive None
    Input/Output Connectors
    Ports 2 x USB 3.0
    Display 1 x Mini-HDMI
    Audio 1 x Integrated Speaker
    1 x Integrated Microphone
    1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
    Media Card Slots SD/SDHC/SDXC
    MMC
    Communications
    Network None
    Wi-Fi 802.11ac
    Bluetooth Bluetooth 4.0
    Webcam Yes
    720p Video
    General
    Operating System Windows 8.1 (64-bit)
    Security HDD User Password Protection, Power-On Password, Infineon TPM Software Professional Package
    Keyboard Type: Standard Notebook Keyboard
    Features: Backlight
    Pointing Device TrackPoint
    Battery 8-Cell Non-Removable Lithium-Polymer  Providing up to 8 Hours per Charge (47 Wh)
    Power Requirements Not Specified By Manufacturer
    Dimensions (WxHxD) 12.4 x 8.7 x 0.7" / 31.5 x 22.1 x 1.8 cm
    Weight 3.48 lb / 1.58 kg Starting weight
    Packaging Info
    Package Weight 5.5 lb
    Box Dimensions (LxWxH) 15.0 x 13.2 x 3.4"
    The user manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US can be downloaded in .pdf format if it did not come with your new ultrabooks, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo ultrabookss, where you can use our link to download the user manual for the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US.

    The user manual lists all of the functions of the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US, all the basic and advanced features and tells you how to use the ultrabooks. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US. User manuals are also available on the Lenovo website under Computers & Solutions - Laptops - Ultrabooks.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US

    Post new comment to Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US

    Subject: Window 10 update frozen at 57%
    Date: 23.04.2021 15:47:39Author: John Collins
    It has been more than an hour now. How do I get my yoga 12 to finish loading the update?
    Reply

    Post new comment/question/response regarding the Lenovo 12.5" ThinkPad Yoga 12 Multi-Touch 20DL0037US
