User manual for the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW
The user manual for the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Attached Storage Drives.

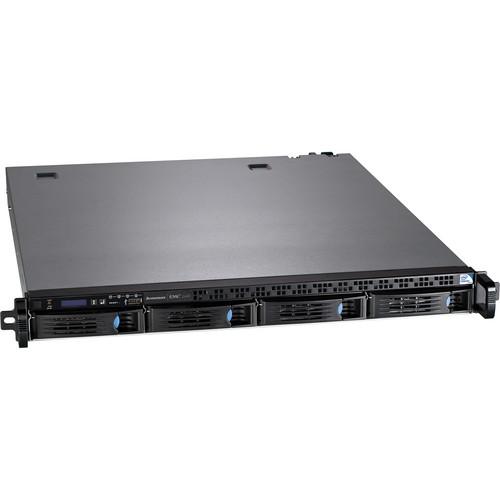

The 8TB px4-300r 4-Bay Network Storage from LenovoEMC is a high-performance Server Class rackmount array that is powered by the LenovoEMC storage technology. It has a maximum storage capacity of up to 16TB. It comes in a space-saving 1U form factor that is suitable for use in small- to medium-sized businesses and distributed enterprises for advanced data protection and local and remote content sharing.
If you own a LenovoEMC network attached storage drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW:
1U form factor <20" (50.8 cm) depth accommodates shallow racks
Processor
Intel Celeron E1500 Dual Core @ 2.2 GHz
Memory
2 GB RAM
Ethernet Ports
2 x RJ-45 10/100/1,000 Mb/s (RJ-45 connector)
Hard Disk Drive
4 x 3.5" Hot swap SATA-II Server Class 7200 rpm hard disk drive Installed: 8 TB (4 x 2 TB)
RAID
RAID 1, 10, 5, hot spare
RAID/storage pool should be the same capacity, speed, and manufacturer. Mixing different types of drives may result in unpredictable behavior.
Power Consumption
Maximum: 150 W Minimum: 55 W (drives spun down) Peak: 220 W for 5s
These values represent a fully loaded device with the highest capacity HDD. Values may vary with other configurations.
iSCSI
Supports both file and block storage pools, 256 hosts maximum with the following parameters: Block Storage Pools; 32 LUNS maximum per pool. 128 LUNs maximum per device File Storage Pools; 256 LUNs maximum per pool. 256 LUNs maximum per device
USB
3 x USB 2.0 ports
LAN Standards
IEEE 802.3, IEEE 802.3u
AC Voltage
100 to 240 VAC, 50 to 60 Hz
Acoustic Noise
39.6 dBA maximum
Temperature
Ambient Temperature Operating: 50 to 95°F (10 to 35°C) Ambient Temperature Non-Operating: -40 to 140°F (-40 to 60°C) Temperature Gradient Operating: 53.6°F (12°C) per hour Maximum Wet Bulb Operating: 79.88°F (26.6°C) Maximum Wet Bulb Non-Operating: 84.92°F (29.4°C)
Humidity
Operating: 8 to 85% RH (non-condensing) Non-Operating: 5 to 95% RH (non-condensing)
Altitude
Altitude Operating: Up to 7,500' (2,286 m) Altitude Non-Operating: Up to 40,000' (12,192 m)
Microsoft Windows XP / Vista / 7 / 8 (all versions - exclusive of XP 64-bit for Personal Cloud) Microsoft Internet Explorer 7.0, Firefox 3.x, Chrome 9 or later browser Available 10/100/1000 Mb/s network Ethernet port (required)
MAC
Mac OS X 10.6 - 10.8 Firefox 3.x; Safari 4, Chrome 9 or later browser Available 10/100/1000 Mb/s network Ethernet port (required)
Linux Users
Supported Linux distributions: Redhat Enterprise 6, Ubuntu 11, OpenSUSE 11.4, other compatible Linux versions Network adapter 10/100/1000 Ethernet
Personal Cloud and Remote Access Specific Requirements: Internet connection UPnP (Universal Plug and Play) compatible router or administrative rights to port forward To implement Personal Cloud, the user must have the ability to expose a specific port to the internet
Recommended minimum sustained connection speeds for a good Personal Cloud experience Download: 2.5 Mb/s Updload: 500 kb/s Personal Cloud is not compatible with Active Directory Personal Cloud is not compatible with XP 64-bit
Certifications
Windows Server 2008 R2 and Windows Server 2012 VMware vSphere ESX 5.1 iSCSI and NAS XenServer 5.5, 5.6 (with MPIO), iSCSI & NFS
Dimensions (L x W x H)
21.00 x 17.00 x 1.70" (53.34 x 43.18 x 4.32 cm)
Weight
17.20 lb (7.80 kg) with 0 HDDs 33.0 lb (15.00 kg) with 4 HDDs
The user manual for the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW can be downloaded in .pdf
format if it did not come with your new network attached storage drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other LenovoEMC users keep a unique electronic library
for LenovoEMC network attached storage drivess,
where you can use our link to download the user manual for the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW.
The user manual lists all of the functions of the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW,
all the basic and advanced features and tells you how to use the network attached storage drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from LenovoEMC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the LenovoEMC px4-300r 4-Bay Network Storage (8TB) 70BJ9007WW. User manuals are also
available on the LenovoEMC website under Computers & Solutions - Networking - Network Attached Storage Drives.
