User manual LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C

Operating instructions and pdf manual for use - LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C User manual, User manual LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C, LG, 55LX341C, 55, -Class, Full, HD, Commercial, LED, TV, 55L


User manual for LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C

LG 55LX341C 55
  • Manufacturer: LG
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your LG
  • Settings and expert assistance
  • Contact LG service
  • Troubleshooting
  • Warranty information
  • Price: 927 USD
LG 55LX341C 55 LG 55LX341C 55 LG 55LX341C 55 LG 55LX341C 55 LG 55LX341C 55

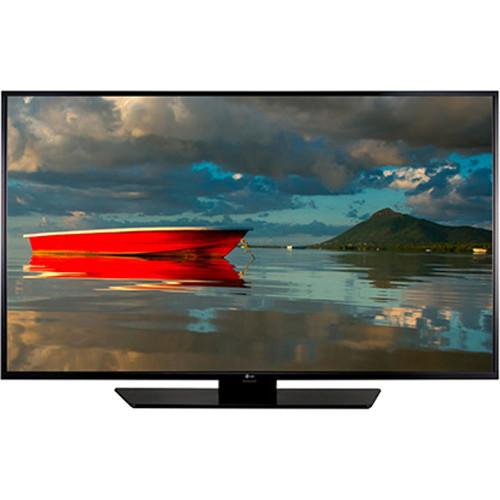

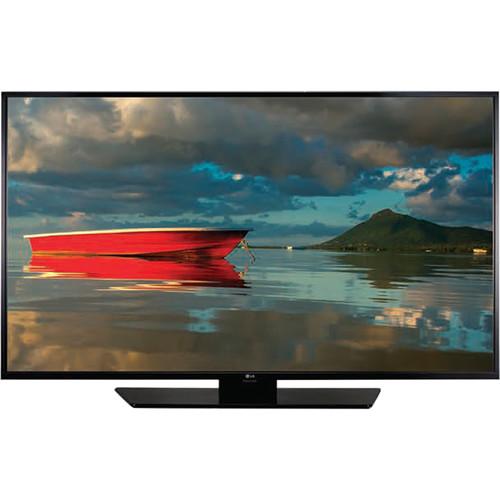

Click to enlarge image

We recommend checking out our discussion threads on the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C, which address similar problems with connecting and setting up Commercial Monitors LG.



User manual for the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C

The user manual for the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

The black LG 55LX341C 55"-Class Full HD Commercial LED TV is designed for use in professional and hospitality environments. This model has a 55""-class edge-lit LED display with a 330 cd/m² brightness output and features a 1920 x 1080 native resolution for viewing detailed high-definition content. The 1200:1 contrast ratio showcases this TV's ability to handle light and dark on-screen images. The panel has a 9ms response time to combat image blur and distortion on moving images.

This LG commercial TV features RF antenna, RGB, USB and two HDMI ports for interfacing a variety of video sources. The RF input allows you to receive free over-the-air high-definition content. This model also has dual 10W speakers built-in for producing stereo sound. A digital optical port is also available for outputting audio to an external audio system. As an ENERGY STAR qualified TV, this model was designed with efficient power management in mind.
If you own a LG commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C:
Specifications
Display
Technology Edge LED
Diagonal Size 54.6" / 138.8 cm
Native Resolution 1920 x 1080
Brightness 330 cd/m²
Dynamic Contrast Ratio 1,000,000:1
Contrast Ratio (Typical) 1200:1
Viewing Angle (H/V) 178°
Response Time 9 ms, GTG
Frame Rate 60 Hz
Video
Broadcast System Analog: NTSC
Digital: ATSC / QAM / VSB
Aspect Ratio Modes: 16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom 1
Processing Real Cinema 24p (3:3 pull down)
Supported Codecs DivX HD, JPEG
Speaker Output External: 1 x Rear (variable/fixed/line out, 3.5mm, stereo, single ended type (GRD, L+, R+), 1 W at 8 ohms)
Audio
Audio Output 2 x 10 W
Sound System 2.0-channel
Sound Modes Standard, News, Music, Cinema, Sport, Game
Supported Codecs MP3, AC3, MPEG, AAC, HEAAC, CDDA, LPCM
Connectivity
Inputs 1 x HDMI (rear)
1 x HDMI (side)
1 x USB (side)
1 x RGB (rear)
1 x RS-232C (rear)
1 x RF Antenna (rear)
1 x RCA Component Video (rear)
1 x RCA Composite Video (rear)
1 x Stereo RCA (rear)
Outputs 1 x Digital Optical (rear)
1 x 1/8" (3.5 mm) (rear)
Other 1 x Power
General
Bezel Width Bezel On (L/R, U, B): 0.6, 0.5, 0.7" / 15.1, 12.7, 17.8 mm
Bezel Off (L/R, U, B): 0.5, 0.4, 0.6" / 12.6, 10.2, 15.3 mm
VESA Compatibility 300 x 300 mm
Compliances Safety: UL
EMC: FCC
ETC: RoHS, cUL, NOM, Energy Star 7.0
Power Requirements 110 to 240 VAC, 50/60 Hz
Power Consumption Typical: 54 W
Standby: <0.5 W
Dimensions (WxHxD) With Stand: 48.9 x 30.5 x 8.7" / 1242.1 x 774.7 x 221.0 mm
Without Stand: 48.9 x 28.5 x 2.2" / 1242.1 x 723.9 x 55.9 mm
Weight With Stand: 46.1 lb / 20.9 kg
Without Stand: 31.7 lb / 14.4 kg
Packaging Info
Package Weight 57.0 lb
Box Dimensions (LxWxH) 52.0 x 32.0 x 5.5"
The user manual for the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LG users keep a unique electronic library for LG commercial monitorss, where you can use our link to download the user manual for the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C.

The user manual lists all of the functions of the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LG service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LG 55LX341C 55"-Class Full HD Commercial LED TV 55LX341C. User manuals are also available on the LG website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
