User manual Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B

Operating instructions and pdf manual for use - Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B User manual, User manual Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B, Lorex, by, FLIR, 8-Channel, 1080p, DVR, with,


User manual for Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B

Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B
  • Manufacturer: Lorex by FLIR
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Kits
  • Safety instructions
  • Startup and operation of the surveillance kits
  • Tips for setting up your Lorex by FLIR
  • Settings and expert assistance
  • Contact Lorex by FLIR service
  • Troubleshooting
  • Warranty information
  • Price: 419 USD
Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B
Click to enlarge image

We recommend checking out our discussion threads on the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B, which address similar problems with connecting and setting up Surveillance Kits Lorex by FLIR.



User manual for the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B

The user manual for the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Kits.

Record HD analog surveillance footage using the 8-Channel 1080p DVR with 1TB HDD from Lorex. Recording in 1080p at 15 fps on all 8-channels, the DVR provides live streaming and playback options, allowing you to keep an eye on all the cameras simultaneously. With 1TB of included storage space, and the option to expand up to 4TB, the DVR is capable of storing your footage 24/7. For backup storage options, two USB ports are located on the DVR for easy storage removal and transferring to other HDDs. HDMi and VGA ports allow you to connect two viewing monitors for live viewing or playback options. Motion detection and scheduled recording can be arranged for conserving storage space and bandwidth. View your footage remotely on a PC, Mac, or mobile device using the Flir Cloud Storage application. With push notifications, instant email notifications, and time stamps, you can stay informed of every monitored move.

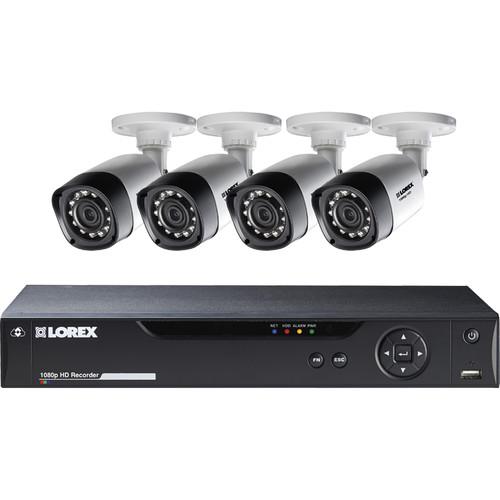

The DVR includes 4 1080p bullet cameras which feature HD resolution recording and a 3.6mm fixed lens. With night vision up to 90' away and a 70° horizontal field of view, the cameras provide detailed footage viewable using the DVR. Connected to the DVR using BNC cabling and featuring IP66-rated housings, the cameras are designed for easy installation and can be utilized for indoor or outdoor use.
If you own a Lorex by FLIR surveillance kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B:
Specifications
System
Operating System Linux embedded
Pentaplex Operation Simultaneous view / record / playback / backup / remote monitoring
Number of Channels 8
Supported Camera Types 1080p MPX, 720p HD, analog
Inputs & Outputs
Video Inputs 8 x BNC (1 Vp-p CVBS 75 ohms)
VGA Output Yes
HDMI Output Yes
Audio Input 1 x RCA
Audio Output 1 x RCA
USB 1 x USB (at the back)
1 x USB (at the front)
PTZ Control RS-485 Pelco D and P protocol
Video Output Resolution 1920 x 1080 HDMI, 1280 x 1024, 1024 x 768
Display
Live Display 1, 4, 8, 9
Live Display Speed 240 NTSC
200 PAL
OSD Controls Configurable
System Navigation USB mouse / IR remote control, front panel
Motion Area Setting Adjustable grid; 22 x 18
Sensitivity Levels 100
Firmware Upgrades Automatic over the internet, via USB, and network
User Access By user group
Time Synchronization Auto time sync by NTP server
Recording
Video Compression H.264
Audio Compression G.711
Recording Resolution NTSC: 1080p (1920 x 1080), 720p (1280 x 720), 960 x 480, 704 x 480, 352 X 480, 704 x 240, 352 x 240
PAL: 1080p (1920 x 1080), 720p (1280 × 720), 960 × 576, 704 × 576, 352 × 288
Recording Rate NTSC: 120 fps @ 1080p, 240 fps @ 720p
PAL: 96 fps @ 1080p, 200 fps @ 720p
Recording Quality Control 6 levels
Recording Schedule By hour / by day / by recording mode / by motion / by channel
Pre Recording Max. 30 seconds
Post Recording Max. 5 minutes
Reliability Watchdog / auto-recovery after power failure
Covert Video Yes
Playback
Playback Channels 1 / 4 / 8
Playback Speed Variable; max. up to 4x
Playback Players Backup Player
Search By time and event
Log Search Up to 1,000 lines for motion detected / configuration changes / connects / disconnects / video loss
Audio Play Yes
Storage & Archive
Storage Type Up to 1 x SATA HDD
Storage Capacity 1 x 4TB HDD
Backup Media USB Flash Drive & HDD
Backup File Format DAV, ASF
Connectivity
Cloud Connectivity Lorex Flir Cloud
Supported Operating Systems Windows / Mac OS X
Remote Software Configuration Client Software (PC), Safari (Mac)
Email Notification Text with snapshot
Mobile App Support iPad, iPhone, Android
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by user
Network Protocols HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
Network Interface 1 x RJ-45, 10/100/1000 Mbps
Network Speed Control 48 Kb to 8 MB/sec per camera
General Attributes
Power Consumption About 10 W (no HDD included)
Power Supply Voltage 100 to 240 VAC
12 VDC, 2 A, 50 to 60 Hz
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Relative Humidity Range 10 to 90% RH
Dimensions (W x D x H) 12.8 x 10.0 x 2.2" / 325.1 x 254.0 x 55.9 mm
Weight 3.3 lb / 1.5 kg
Packaging Info
Package Weight 13.2 lb
Box Dimensions (LxWxH) 15.354 x 14.488 x 8.504"
The user manual for the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B can be downloaded in .pdf format if it did not come with your new surveillance kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lorex by FLIR users keep a unique electronic library for Lorex by FLIR surveillance kitss, where you can use our link to download the user manual for the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B.

The user manual lists all of the functions of the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B, all the basic and advanced features and tells you how to use the surveillance kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lorex by FLIR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B. User manuals are also available on the Lorex by FLIR website under Surveillance - Surveillance Video - Surveillance Kits.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B

Post new comment to Lorex by FLIR 8-Channel 1080p DVR with 1TB HDD and LHV21081TC4B

Subject: Missing Manual
Date: 21.08.2023 22:23:55Author: DAVID KING
Inherited LHV100800 system with the office, so have cameras and DVR but no manual on hos to use.
Reply

Subject: Need a manual
Date: 23.10.2022 04:33:07Author: Michael
I have a lorex from 2016 I purchased from Costco, I can't find my manual, I finally hooked up to a wifi modem with Comcast and would like to download updates and view my cameras from my cell phone but don't know how to thank you
Reply

Subject: Manual
Date: 01.01.2022 17:16:44Author: Angie
Hi can I please get manual too?
Reply

Subject: Password
Date: 05.11.2018 02:29:45Author: Robert Childs
I can’t get my password to log in tried every password I have used in the past but keeps getting password incorrect when trying to log in
Reply

Subject: manual
Date: 22.10.2018 16:02:44Author: Gary Leffler
lost manual for LHV100800
Reply

Subject: Looking for manual
Date: 23.02.2018 01:53:23Author: Steven Hanner
Looking for manual for Lorex 1080p HD MPX DVR. The manual did not come with the system.
Reply

Subject: usermanual
Date: 22.06.2017 15:18:08Author: bert
I am trying to find the user manual for the lorex 4 channel 1080p system,According to you the seller is required to supply one but there was nothing in the box.Then on your website there is no clear indication as to where to download it from ,you have a lot of advertisement that will direct you to different websites,Please send me the link to where i can download the user manual.

Thank you in advance Bert
