User manual M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS

Operating instructions and pdf manual for use - M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS User manual, User manual M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS, M-Audio, AV32, Compact, Desktop, Speakers, Profe


User manual for M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS
  • Manufacturer: M-Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your M-Audio
  • Settings and expert assistance
  • Contact M-Audio service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD

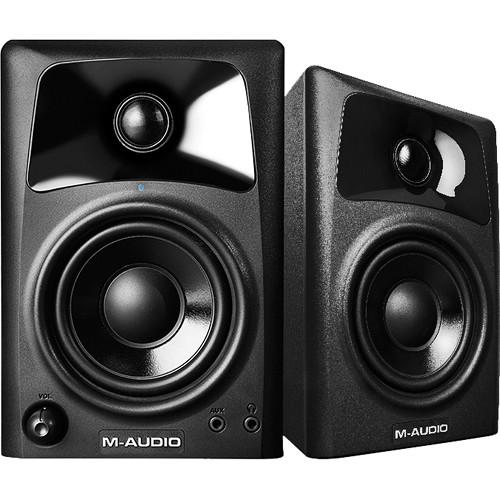

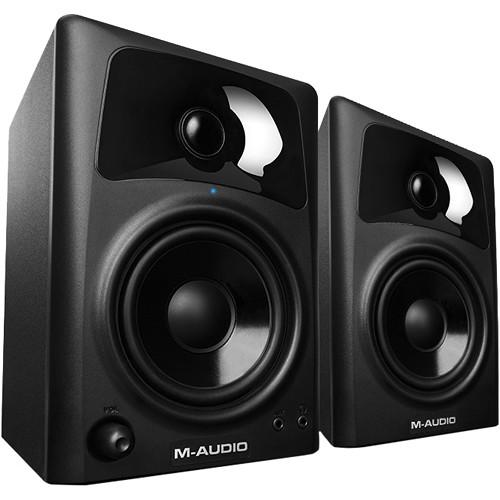

M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS
Click to enlarge image

We recommend checking out our discussion threads on the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS, which address similar problems with connecting and setting up Studio Monitors M-Audio.



User manual for the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS

The user manual for the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

The M-Audio AV32 Compact Desktop Speakers for Professional Media Creation (Pair) use acoustically-inert MDF cabinets to eliminate resonances, and 10W per Channel into 4 ohms per channel into a 3" polypropylene woofer in a bass reflex design. The woofer is complemented by a 1" wave-guided ferrofluid cooled silk dome tweeter to deliver a frequency response of 80 to 20,000 Hz and an RMS SPL level of 101.5 dB at 1 meter.

The rear panel of the monitors feature RCA inputs for connecting gaming systems, DJ gear, mixers and more. A front panel 1/8" (3.5mm) stereo auxiliary input allows for the connection of a laptop, smartphone, or other mobile device. A front panel 1/8" headphone output allows you to monitor directly using headphones. The monitors are suitable for a wide range of professional and consumer applications.
If you own a M-Audio studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for M-Audio AV32 Compact Desktop Speakers for Professional AV32XUSDownload user manual for M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS
(PDF file, 0.93 MB)
Additional parameters of the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS:
Type Two-way desktop reference speaker
Input Connectors 2x RCA (left and right line inputs)
1x 1/8" aux input
Low Frequency Driver 3.0" (7.6 cm) polypropylene-coated woofer with high-temperature voice coil
High Frequency Driver 1.0" (2.5 cm) silk cone tweeter
Frequency Response 80 to 20,000 Hz
Crossover Frequency 3.3 kHz
RMS Level 101.5 dB at 1 m
SNR >90 dB (typical, A-weighted)
Polarity Positive signal at "+" input produces outward low-frequency cone displacement
Dynamic Power 10 W per channel at 4 ohm
Input Impedance 10 kilOhm unbalanced
Input Sensitivity 100 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum
Protection RF interference
Output current limiting
Over temperature
Turn on/off transient
Subsonic filter
Indicators Blue power LED for aligning wave guide
Power Requirements 100 to 120 V at 50/60 Hz
200 to 240 V at 50/60 Hz
Powered via detachable 2-conductor line cord
Cabinet Vinyl-laminated MDF
Dimensions (H x W x D) 7.9 x 5.3 x 6.3" (20.1 x 13.5 x 16.0 cm)
Weight 11.7 lb (5.3 kg)
Packaging Info
Package Weight 7.0 lb
Box Dimensions (LxWxH) 14.3 x 9.8 x 8.2"
The user manual for the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other M-Audio users keep a unique electronic library for M-Audio studio monitorss, where you can use our link to download the user manual for the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS.

The user manual lists all of the functions of the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from M-Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the M-Audio AV32 Compact Desktop Speakers for Professional AV32XUS. User manuals are also available on the M-Audio website under Pro Audio - Recording - Studio Monitors.
