User manual M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110

Operating instructions and pdf manual for use - M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110 User manual, User manual M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110, M-Audio, M3, Three-Way, 8, Active, Studio, Monitor, M3EIGH


User manual for M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
M-Audio M3 Three-Way 8
  • Manufacturer: M-Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your M-Audio
  • Settings and expert assistance
  • Contact M-Audio service
  • Troubleshooting
  • Warranty information
  • Price: 299 USD
We recommend checking out our discussion threads on the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110, which address similar problems with connecting and setting up Studio Monitors M-Audio.



User manual for the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110

The user manual for the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110 provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

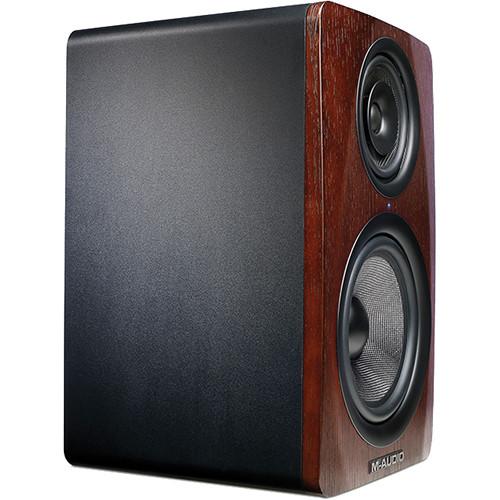

The M3 Three-Way 8" Active Studio Monitor by M-Audio features an 8" woven Kevlar low-frequency woofer and inline high- and mid-frequency drivers. The mids are supported by a 5" woven Kevlar driver, while the highs are amplified through a 1" silk dome tweeter. The enclosures are powered by Class AB triamplification, providing 220W total per side. M-Audio makes connection easy, providing XLR and 1/4" TRS balanced connectors, as well as an unbalanced RCA input. Each speaker has an integrated 3-band EQ and a switchable low-cut filter, for use with subwoofers. The real wooden speaker baffles add to the M3's allure, while the internal bracing optimizes performance.
If you own a M-Audio studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for M-Audio M3 Three-Way 8Download user manual for M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110
(PDF file, 1.27 MB)
Additional parameters of the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110:
Specifications
Frequency Response 40 Hz ~ 20 kHz
Crossover Frequencies Low-Mid: 450 Hz
Mid-High: 3.9 kHz
Amplifier Power Low-frequency: 150W
Mid-frequency: 35W
High-frequency: 35W
LF Roll Off Switchable: flat, 60 Hz, 80 Hz
Equalizer Control Bands LF: ± 6 dB @ 100 Hz
MF: ± 6 dB @ 1 kHz
HF: ± 6 dB @ 10 kHz
Bypass
Polarity Positive signal at + input produces outward LF cone displacement
Input Impedance 20kΩ balanced, 10kΩ unbalanced
Input Sensitivity 85 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum
Protection Circuits Output current limiting; over-temperature; transient on/off protection to prevent speaker "pops"; subsonic filter; external mains fuse
Cabinet Wood veneer front baffle with vinyl-laminated cabinet
Dimensions (W x H x D) 10.6 x 17.1 x 11.2" (268 x 434 x 285 mm)
Weight 28.2 lb (12.8 kg)
Packaging Info
Package Weight 35.0 lb
Box Dimensions (LxWxH) 21.0 x 16.0 x 15.0"
The user manual for the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110 can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other M-Audio users keep a unique electronic library for M-Audio studio monitorss, where you can use our link to download the user manual for the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110.

The user manual lists all of the functions of the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from M-Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the M-Audio M3 Three-Way 8" Active Studio Monitor M3EIGHTX110. User manuals are also available on the M-Audio website under Pro Audio - Recording - Studio Monitors.
