User manual Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4

Operating instructions and pdf manual for use - Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4 User manual, User manual Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4, Mackie, 402VLZ4, 4-Channel, Ultra-Compact, Mixer, 402-VLZ4,


User manual for Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

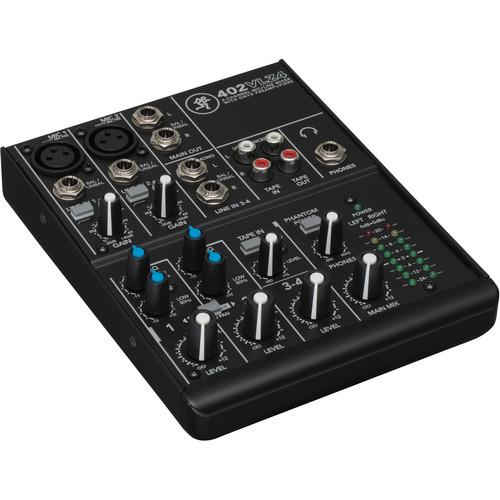

Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4
  • Manufacturer: Mackie
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Mackie
  • Settings and expert assistance
  • Contact Mackie service
  • Troubleshooting
  • Warranty information
  • Price: 100 USD
We recommend checking out our discussion threads on the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4, which address similar problems with connecting and setting up Analog Recording Mixers Mackie.



User manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4

The user manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4 provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

The Mackie 402VLZ4 4-Channel Ultra-Compact Mixer features Onyx microphone preamps in an ultra-compact design and is suitable for professional low-input applications. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for discernible tactile control. With features like instrument level inputs, phantom power, and level metering, the 402VLZ4 4-Channel Ultra-Compact Mixer is a good choice for anybody who is big on performance, but light on inputs. The bottom panel of the mixer features has three non-threaded holes that allow it to be fitted with an optional microphone stand adapter (sold separately). This lets you support the mixer on a standard microphone stand and adjust its height and level to whatever suits your preferences.
If you own a Mackie analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4Download user manual for Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4
(PDF file, 0.98 MB)
Additional parameters of the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4:
Specifications
    Noise Main Mix Noise:
    Main Mix Knob Down, Channel Level Knobs Down: -103 dBu
    Main Mix Knob at Unity, Channel Level Knobs Down: -98 dBu
    Main Mix Knob at Unity, Channel Level Knobs at Unity: -92 dBu
    Signal-to-Noise Ratio, ref. +4 dBu 102 dB
    (20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1-2 gain at unity, channel EQs flat, stereo-pan button in)
    Total Harmonic Distortion (THD) 20 Hz to 80 kHz Bandwidth: <0.005%
    20 Hz to 20 kHz Bandwidth: <0.003%
    (1 kHz @ 35 dB gain)
    Crosstalk / Attenuation Main Mix Knob Down: -70 dBu
    Channel Level Knob Down: -94 dBu
    (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity)
    Frequency Response Microphone Input to Main Output (Gain at Unity):
    +0, -1 dB, 20 Hz to 50 kHz
    +0, -3 dB, <10 hz to>100 kHz
    Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
    Microphone in to main out, maximum gain
    Common Mode Rejection Ratio Better than -70 dB at 1 kHz
    Maximum Level Microphone In: +21 dBu
    Tape In: +24 dBu
    All Other Inputs: +22 dBu
    All Other Outputs: +22 dBu
    Impedance Microphone In: 2.55 kΩ
    Instrument Input: 1 MΩ
    All Other Inputs: 10 kΩ or greater
    Tape Out: 1 kΩ
    Phones Out: 60 Ω
    All Other Outputs: 120 Ω
    Equalizer High Shelving: ±15 dB at 12 kHz
    Low Shelving: ±15 dB at 80 Hz
    Power Consumption 8 W, 100 to 120 VAC, 50 to 60 Hz
    Power Supply External AC Connector: 2-Pin IEC 250 VAC
    Operating Temperature 32 to 104°F (0 to 40°C)
    Dimensions 7.3 x 5.8 x 1.6" (186.0 x 147.0 x 41.0 mm)
    Weight 3.0 lb (1.4 kg) with power supply
    2.5 lb (1.1 kg) without power supply
    Packaging Info
    Package Weight 4.35 lb
    Box Dimensions (LxWxH) 12.6 x 9.0 x 4.3"
    Product Demo
    The user manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4 can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Mackie users keep a unique electronic library for Mackie analog recording mixerss, where you can use our link to download the user manual for the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4.

    The user manual lists all of the functions of the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Mackie service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mackie 402VLZ4 4-Channel Ultra-Compact Mixer 402-VLZ4. User manuals are also available on the Mackie website under Pro Audio - Recording - Analog Recording Mixers.
