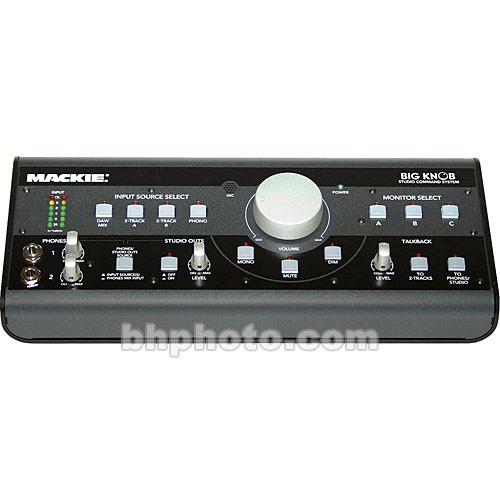

The Mackie BIG KNOB is a compact, moderately priced, tabletop control room speaker selector and router unit, that effectively replaces the monitoring section of a mixing board in the often console-less professional and project DAW recording studio. The versatility of this unit invites possible use as an audio control center for a more elaborate home stereo or Home Theater system, as well.
If you own a Mackie studio monitor controllers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie BIGKNOB - Control Room Monitoring Distributor BIG KNOB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie BIGKNOB - Control Room Monitoring Distributor BIG KNOB:
Input Impedance Line Input:
24 kOhms(Balanced)
12 kOhms(Unbalanced)
Phono Input:
47 kOhms/220 pF
Output Impedances Line Output:
300 Ohms(Balanced)
150 Ohms(Unbalanced)
Headphone Output:
150 Ohms
Sensitivity (0 VU) 80 dB SPL nominal(Talkback Microphone)
Maximum Input Level Line Inputs, Balanced: +28 dBu
Line Inputs, Unbalanced: +14 dBu
RIAA Input @ 1 kHz, Nominal Gain: 79 mV
Maximum Output Level Line Outputs, Balanced: +22 dBu
Line Outputs, Unbalanced: +8 dBu
Noise Unity Gain: -86 dBu max., with DAW, 2-Track A, B Assigned*
Monitor A, B, and C Outputs: -90 dBu typical*
Studio Output: -90 dBu typical*
DAW, 2-Track A and B Outputs: - 90 dBu typical*
Phono Input: -71 dBu max.(all outputs)**
Equivalent Input Noise: 0.89 uV, -119 dBu max.
*20 kHz Bandwidth, +4 dB level setting, 150 Ohm source
**Nominal 41.8 dB Gain @ 1 kHz, inputs shorted
THD + N >0.015%, 20 Hz - 20 kHz @ +4 dBu(Line Level, Inputs to Outputs, Unity Gain)
0.015%, 20 Hz - 20 kHz @ +4 dBu(RIAA Input, Nominal Gain)
Crosstalk Adjacent Inputs: 90 dB @ 1 kHz
Left to Right/Right to Left: 70 dB @ 1 kHz
Muted/Level Off: 90 dB @ 1 kHz
Input Connections 2 x 1/4" TRS Phone DAW Phones Mix In, Bal/Unbal
2 x 1/4" TRS(L/Mono, R) 2-Track A In, Bal/Unbal
2 x 1/4" TRS(L/Mono, R) 2-Track B In, Bal/Unbal
2 x 1/4" TRS(L/Mono, R) DAW Mix In, Bal/Unbal
2 x RCA Phono(L, R) RIAA Phono In
1 x 1/4" TS Phone Talkback Footswitch In
Output Connectors 6 x 1/4" TRS Phone Monitor A,B,C Out, Bal/Unbal
2 x 1/4" TRS Phone 2-Track A Out, Bal/Unbal
2 x 1/4" TRS Phone 2-Track B Out, Bal/Unbal
2 x 1/4" TRS Phone DAW Out, Bal/Unbal
2 x 1/4" TRS Phone Phones Amp Out, Bal/Unbal
2 x 1/4" TRS Phone Studio Out, Bal/Unbal
Speaker Output 1/4" TRS Phone, +4 dB/-10dB Switchable(Powered Speakers Only)
Speaker Switching 3 x Selector Switches with LED's
Meters 6-Segment LED:
-24 dB, -8 dB, -4 dB, 0 dB, +8 dB, OL
Talkback Mic Yes, Internal Omnidirectional Electret Condenser
Talkback Mic Input No
Headphone Output Yes, x2
Dimensions 13.5 x 3.2 x 5.9" (343 x 89 x 150mm)
Weight 3.5 lb (1.6 kg)
Packaging Info
Package Weight 8.15 lb
Box Dimensions (LxWxH) 18.1 x 8.9 x 5.3"
