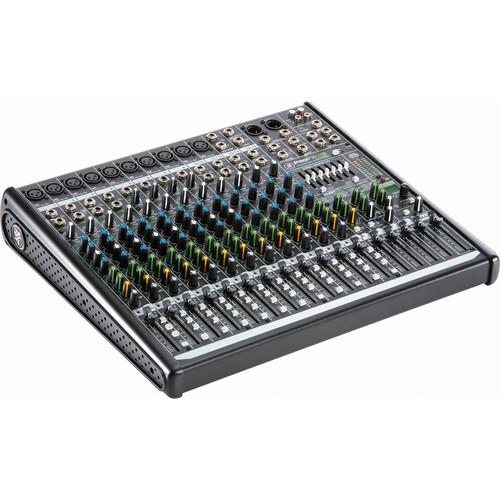

The Mackie ProFX16v2 16-Channel Mixer & Carry Bag Kit from B&H comes with everything you need to take your show on the road. Including the ProFX16v2 16-Channel Mixer with Built-In FX and a protective carry bag with plenty of extra storage space, this kit is a great start towards building your sound reinforcement rig.
If you own a Mackie sound reinforcement mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Mackie ProFX16v2 16-Channel Mixer & Carry Bag Kit in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie ProFX16v2 16-Channel Mixer & Carry Bag Kit:
Specifications
Mackie ProFX16v2 16-Channel Sound Reinforcement Mixer with Built-In FX
Equivalent Input Noise
150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -128 dBu
Residual Output Noise
All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -85 dBu
Frequency Response
Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz
THD+N
22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.01%
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -100 dB
Common Mode Rejection Ratio
Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level
All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
Impedance
Mic In 3.3 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization
Mono Channels: Low ±15 dB @ 80 Hz Mid ±15 dB @ 100 Hz - 8 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
Stereo Channels Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz
Maximum Voltage Gain
Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 60 dB 1/4" Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 81 dB FX Send: 90 dB
Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 40 dB XLR Main Output: 56 dB Monitor Send: 61 dB FX Send: 70 dB
Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB
XLR Main Output: 46 dB Monitor Send: 51 dB FX Send: 55 dB
Tape Input to: XLR Main Output: 36 dB
USB Input to: XLR Main Output: 36 dB
Stereo Return to: Mon Output: 30 dB XLR Main Output: 26 dB
Digital Effects
I/O: mono input / stereo output Number of Presets: 16
Meters
Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ
Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
USB
USB Recording to Computer (Mac & PC)
Phantom Power
48 VDC to all mic channels simultaneously
AC Power Requirements
Power Consumption: 40 watts Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Class II Detachable Line Cord: Yes
