User manual Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB

Operating instructions and pdf manual for use - Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB User manual, User manual Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB, Magewell, XI006AUSB, 6-Channel, USB, 3.0, Vide


User manual for Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB
  • Manufacturer: Magewell
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Magewell
  • Settings and expert assistance
  • Contact Magewell service
  • Troubleshooting
  • Warranty information
  • Price: 589 USD
We recommend checking out our discussion threads on the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB, which address similar problems with connecting and setting up Computer Hardware Magewell.



User manual for the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB

The user manual for the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

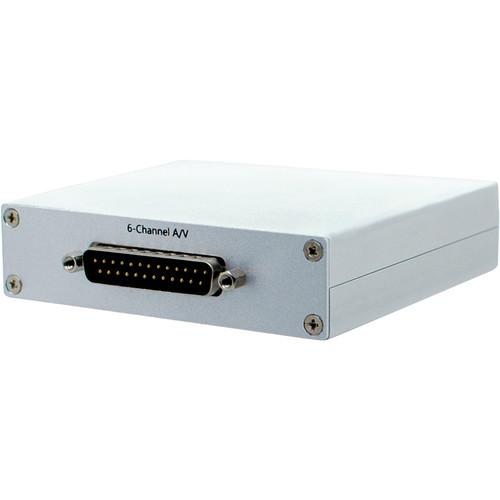

Stream up to six composite video sources to your PC with the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture Box. To keep the unit compact, a DB25 port is used along with the included breakout cable to provide the six A/V connections. Both NTSC and PAL standards are supported by the capture device, and each channel can be streamed at its own frame rate up to 30 fps. This capture device features discrete video processing to take the processing load off your computer's CPU. The capture devices processing can perform deinterlacing, frame clipping, and color adjustment in real-time. The internal processing also allows for the device to stream a single source at multiple resolutions to multiple software programs. This card is plug-and-play, so it can be used with any software compatible with your computer's drivers.
If you own a Magewell computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB:
Host Interface USB 3.0, 300-350 MB/s throughput
Input Interface 1 x DB25 interface (can connect to 6 CVBS and 6 unbalanced stereo audio line-in)
Video Input 6 x NTSC/PAL Composite video
Audio Input 6 x Stereo audio
Audio Sampling Up to 24-bit, 96 KHz
Video Sampling 10-bit, 57.27 MHz (4x Oversampling)
Color Space YUYV, UYVY, I420, NV12, RGB 24 Bits, RGB 32 Bits
Hardware adjustable
Deinterlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
Image Scale Hardware 5-Tap scale
Image Flip Horizontal; vertical
Image Size Change Function Yes
Image Adjustment Horizontal; vertical
Saturation adjustment/control of monochrome and color
Gamma adjustment
Seperate adjustment of brightness and contrast of R/G/B
OS Compatibility Windows XP Professional, Server2003, Vista, Server 2008, 7, Server 2008 R2
Software Compatibility Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
VideoLAN for Windows
Onboard Memory 128 MB DDR2
Firmware Upgradeable Yes
Power Consumption <= 3.5 W
Dimensions 3.9 x 3.9 x 1" / 98 x 98 x 25 mm
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 8.1 x 7.4 x 3.4"
The user manual for the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Magewell users keep a unique electronic library for Magewell computer hardwares, where you can use our link to download the user manual for the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB.

The user manual lists all of the functions of the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Magewell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Magewell XI006AUSB 6-Channel USB 3.0 Video Capture XI-006-A-USB. User manuals are also available on the Magewell website under Professional Video - Post Production - Computer Hardware.
