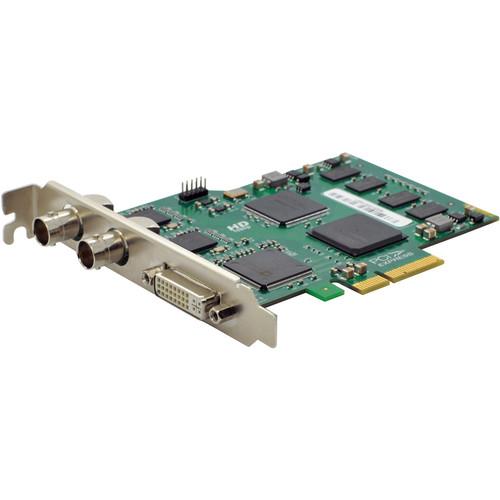

Capture up to three HD streams with the Magewell XI102XE-HD PCI Express Video Capture Card. The front panel features two SDI inputs capable of 1920 x 1080 resolution, as well as a DVI input which can take HDMI and analog component/composite inputs using the included breakout cable. The capture card features advanced real-time video processing. When a source is connected, the capture card will automatically scale the video input so no excess black space is recorded. Interlaced source material can be automatically deinterlaced for better compatibility with digital workflows. The color of the footage can also be adjusted before it is recorded or streamed by your computer. The XI102XE-HD is supported natively by Windows and Linux drivers, enabling it to be plug-and-play compatible with your existing system.
