User manual for the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH

The user manual for the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

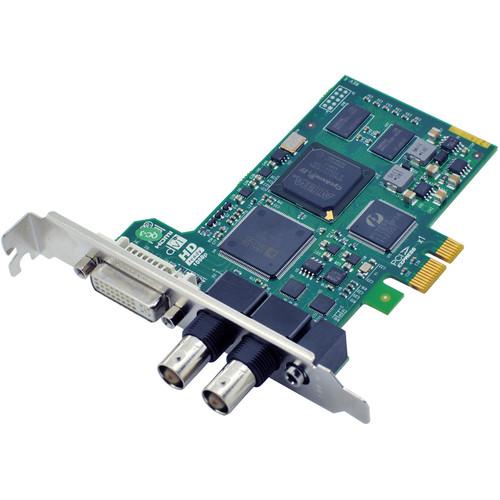

Stream digital and analog video to your computer with the Magewell XI102XE PCI Express Video Capture Card. This card has DVI and composite video connections on the front panel. Audio can be input into the card via the 3.5mm front panel audio jack. The DVI port can accept HDMI or component video with the included breakout cable or a VGA signal with the included DVI-I to VGA adapter. Regardless of the input, the XI102XE will detect the frame size and standard of the input signal, and will automatically adjust the output from the card to match it. If the source is interlaced, the XI102XE will automatically deinterlace it for easier integration into digital workflows.
If you own a Magewell computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH:
Specifications
    Host Interface PCI-Express x1, Low-profile, 200 MB/s transmission bandwidth
    Input Interface 1 x DVI-I Interface (switch to HDMI, VGA, YPbPr)
    2 x BNC Interface (connect 2 channel CVBS)
    1 x 3.5mm unbalanced audio interface
    DVI Input 1 x 1080p/60 Hz HD-DVI signal
    HDMI Input 1 x 1080p/60 Hz HDMI signal
    1 x LPCM audio signal
    VGA Input 1 x VGA signal
    YPbPr Input 1 x YPbPr signal
    CVBS Input 2 x SD video signal
    Analog Audio Input 1 x Analog audio signal
    Input Format DVI: DVI 1.0 single connection (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)
    HDMI: HDMI 1.3, supports 36 bits DeepColor
    YPbPr: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
    VGA: 640×400 - 2048×1536
    CVBS: PAL/NTSC
    HD Output 40×30 - 2048×1536, frame rate: 1-100 fps
    SD Output 176×144-768×576, frame rate: 1-30 fps
    Sampling Rate Video: 10-bit precision
    CVBS: 57.27 MHz (4x Oversampling)
    RGB/ YPbPr: 170 MHz
    HDMI/ DVI: 225 MHz

    Audio: up to 24-bit/96 KHz
    Color Space YUYV, UYVY, I420, RGB 24-bit, RGB 32-bit
    Color Space Hardware Color Switch
    Deinterlacing Vertical filter deinterlacing; motion-adaptive deinterlacing
    Scaling Hardware 5-Tap Scale
    Image Mirroring Horizontal; vertical
    Image Crop Yes
    Image Adjustment Horizontal; vertical
    Saturation adjustment/control of monochrome and color
    Gamma adjustment
    Seperate adjustment of brightness and contrast of R/G/B
    OS Compatibility Windows XP Professional
    Windows Server 2003
    Windows Vista
    Windows Server 2008
    Windows 7
    Windows Server 2008 R2
    Windows 8
    Windows 8.1
    Software Compatibility Windows Media Encoder
    Adobe Flash Media Live Encoder
    Real Producer Plus
    VideoLAN for Windows
    Onboard Memory 256 MB DDR2
    Firmware Upgradeable Yes
    Installation PCI-Express x1, x4, x8, or x16 slot, 4RU chassis.
    Power Consumption <= 6W
    Dimensions 4 x 3.3" / 103 x 84 mm
    The user manual for the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Magewell users keep a unique electronic library for Magewell computer hardwares, where you can use our link to download the user manual for the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH.

    The user manual lists all of the functions of the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Magewell service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Magewell XI102XE Single DVI Dual CVBS Full Height XI-102-XE-FH. User manuals are also available on the Magewell website under Professional Video - Post Production - Computer Hardware.
