User manual Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20

Operating instructions and pdf manual for use - Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20 User manual, User manual Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20, Magnus, VPH-20, Video, Pan, Tilt, Fluid, Head, VPH-20,


User manual for Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20
  • Manufacturer: Magnus
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads
  • Safety instructions
  • Startup and operation of the video tripod heads
  • Tips for setting up your Magnus
  • Settings and expert assistance
  • Contact Magnus service
  • Troubleshooting
  • Warranty information
  • Price: 50 USD
We recommend checking out our discussion threads on the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20, which address similar problems with connecting and setting up Video Tripod Heads Magnus.



User manual for the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20

The user manual for the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.

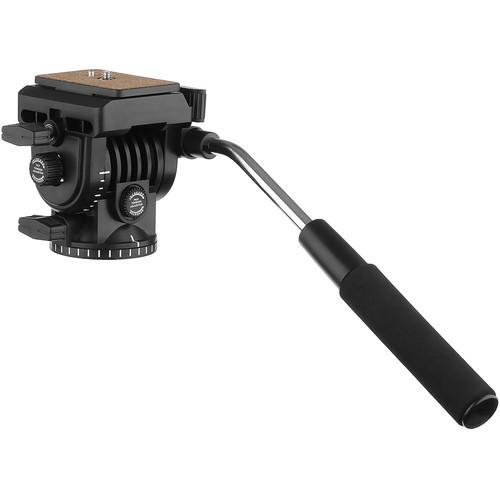

The Magnus VPH-20 Video Pan & Tilt Fluid Head is a fluid cartridge tripod head supporting loads up to 11 lb. It smoothly pans 360° and tilts 180° and comes with a removable, right-sided pan arm and a quick release plate. The tripod mount thread on the bottom is 3/8"-16 and can be converted to 1/4"-20 with an included reducing bushing for compatibility with all tripods. You can also use the head on all camera sliders.

Pan and tilt are independently lockable by separate locking knobs and tension-adjustable by separate tension knobs. The quick release plate features a cork surface that provides padding for your camera and has a 1/4"-20 threaded mounting stud and a locking pin to prevent your camera from accidentally moving.
If you own a Magnus video tripod heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20Download user manual for Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20
(PDF file, 1.18 MB)
Additional parameters of the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20:
Load Capacity 11 lb (5 kg)
Pan 360°
Tilt 180°
Pan / Tilt Lock Separate locking knobs
Tension Control Pan and Tilt adjustment knobs
Tripod Mount Types 3/8"-16 thread (3/8"-16 to 1/4"-20 reducing bushing included)
Quick Release Plate Included, 1/4"-20 threaded stud and locking pin
Dimensions With pan arm included: 4 x 5.2 x 14" (10.2 x 13.2 x 35.6 cm)
Weight 1.8 lb (.8 kg)
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 14.4 x 5.3 x 3.75"
The user manual for the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20 can be downloaded in .pdf format if it did not come with your new video tripod heads, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Magnus users keep a unique electronic library for Magnus video tripod headss, where you can use our link to download the user manual for the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20.

The user manual lists all of the functions of the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20, all the basic and advanced features and tells you how to use the video tripod heads. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Magnus service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Magnus VPH-20 Video Pan & Tilt Fluid Head VPH-20. User manuals are also available on the Magnus website under Professional Video - Tripods, Supports & Rigs - Tripod Heads & Accessories - Video Tripod Heads.
