User manual Marantz TT42 Automatic Turntable TT42

Operating instructions and pdf manual for use - Marantz TT42 Automatic Turntable TT42 User manual, User manual Marantz TT42 Automatic Turntable TT42, Marantz, TT42, Automatic, Turntable, TT42, Video


User manual for Marantz TT42 Automatic Turntable TT42

Marantz  TT42 Automatic Turntable TT42
  • Manufacturer: Marantz
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Home Audio Components - Turntables
  • Safety instructions
  • Startup and operation of the turntables
  • Tips for setting up your Marantz
  • Settings and expert assistance
  • Contact Marantz service
  • Troubleshooting
  • Warranty information
  • Price: 329 USD
We recommend checking out our discussion threads on the Marantz TT42 Automatic Turntable TT42, which address similar problems with connecting and setting up Turntables Marantz.



User manual for the Marantz TT42 Automatic Turntable TT42

The user manual for the Marantz TT42 Automatic Turntable TT42 provides necessary instructions for the proper use of the product TVs & Entertainment - Home Audio Components - Turntables.

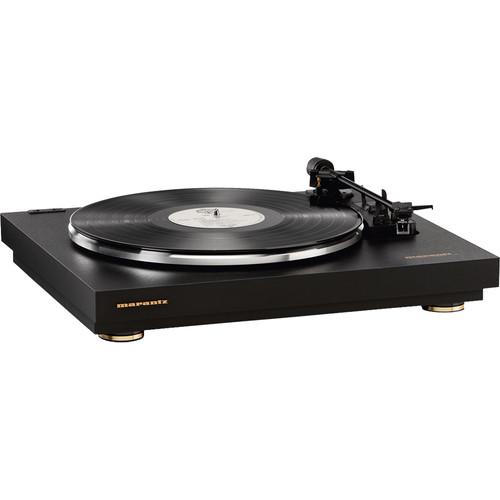

The TT42 from Marantz is a fully automatic turntable that combines a classic turntable design with modern audio technologies. The fully automatic mechanism plays records at a touch of a button. By pressing play, the tone arm is automatically and precisely lifted onto the record groove and once the playback has concluded, it returns to its resting position. The turntable features a low-coloration tone arm, DC servo motor, and belt drive that ensures interference-free playback. The TT42 ships with a dust cover and a preinstalled cartridge and stylus.
If you own a Marantz turntables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marantz TT42 Automatic Turntable TT42 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marantz TT42 Automatic Turntable TT42:
Specifications
Turntable
Speeds 33-1/3 and 45 RPM
Motor Electronically controlled DC motor
Drive Mechanism Belt-driven
Cartridge DN251S / AT3600
Stylus Diamond - Conical
Tone Arm Straight
Effective Arm Length 8.3" / 21.1 cm
Frequency Range 20 Hz to 18 kHz
Signal to Noise Ratio Rumble Unweighted: 42 dB
Rumble Weighted: 65 dB
Wow and Flutter ±10/0.07%
Power Output 4 mV/1 kHz
Connectors 2x RCA
General Attributes
Power Requirements 115 V / 60 Hz, 230 V / 50 Hz
Power Consumption 1.5 W
Dimensions (W x D x H) 16.5 x 14.2 x 5.4" / 42.0 x 36.0 x 13.7 cm
Weight 11.9 lb / 5.4 kg
Packaging Info
Package Weight 15.0 lb
Box Dimensions (LxWxH) 21.3 x 19.2 x 9.1"
The user manual for the Marantz TT42 Automatic Turntable TT42 can be downloaded in .pdf format if it did not come with your new turntables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marantz users keep a unique electronic library for Marantz turntabless, where you can use our link to download the user manual for the Marantz TT42 Automatic Turntable TT42.

The user manual lists all of the functions of the Marantz TT42 Automatic Turntable TT42, all the basic and advanced features and tells you how to use the turntables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marantz service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marantz TT42 Automatic Turntable TT42. User manuals are also available on the Marantz website under TVs & Entertainment - Home Audio Components - Turntables.
