User manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-WHSU
The user manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-WHSU provides
necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

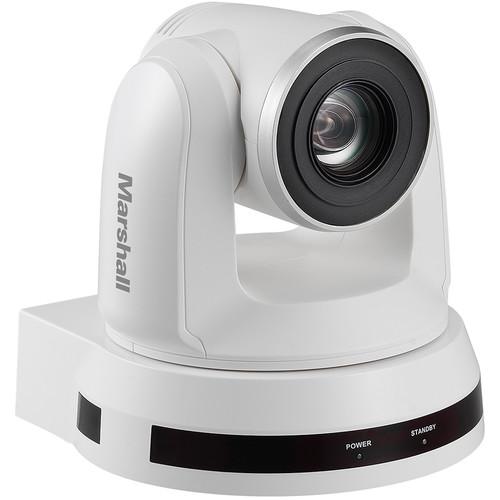

The white CV620 2MP Full HD Broadcast PTZ Conference Camera with 3G-SDI to USB 3.0 Converter from Marshall Electronics is built around a professional grade 1/2.8" image sensor with a smooth 20x optical zoom. The camera incorporates useful outputs such as 3G-SDI, Component VGA, HD-DVI, and Composite outputs. Remote operation and control via RS232/RS422 using common protocols makes it compatible with most integrated control systems.
If you own a Marshall Electronics ptz cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-WHSU in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-WHSU:
Specifications
Image Sensor
1/2.8"
Resolution
2 MP
Supported Resolutions
1080p, 1080i, 720p
Frame Rate
60, 59.94, 50, 30, 29.97, 25 fps
Zoom
20x optical, 12x digital
Lens
4.7 to 94 mm
Aperture
F1.6-3.5
Pan/Tilt Adjustment
340° Horizontal Pan, 120° Vertical Tilt
I/O
Hd/3G-SDI BNC, Component-VGA, HD-DVI, Composite Video
Serial
RS-422/RS-232 Remote Control Interface at High Communication Speeds
Dimensions (L x W x H)
6.85 x 7.32 x 7.19" (174 x 186 x 185 mm)
Weight
4.4 lb (2 kg)
