User manual for the Metric Halo ULN-2 Expanded FireWire Audio 000-50006 DSP

The user manual for the Metric Halo ULN-2 Expanded FireWire Audio 000-50006 DSP provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

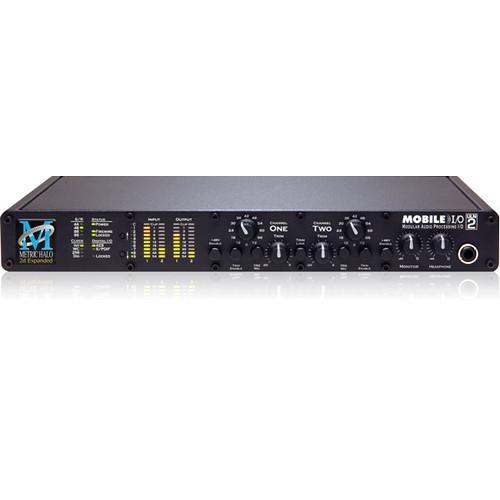

The ULN-2 Expanded FireWire Audio Converter and Interface +DSP from Metric Halo is a portable FireWire-based multi-format audio converter, interface, and processor design for professional applications. The unit offers 2 balanced analog inputs on Neutrik XLR/TRS combo connectors, as well as AES/EBU and S/PDIF digital I/O connectors, plus 8 channels of ADAT optical I/O with switchable TOSLINK support. It also has 2 balanced 1/4" analog outputs and 2 balanced 1/4" monitor outputs for connecting to power amps and self-powered monitors. BNC word clock I/O connectors let you keep perfect sync with your other professional audio devices, while a pair of FireWire 400 connectors support connection to a computer at up to 400Mbps.

The unit has extremely low-noise preamps with a lot of gain and an ultra-fast slew rate. 24-bit/96kHz converters are provided on all channels to provide high-quality clean audio. Each of the analog inputs has balanced 1/4" analog sends and returns, letting you use the unit as a stand-alone pre/direct box, as an active splitter, or as an analog patch. An integrated headphone amp with a dedicated volume control provides convenient private monitoring.

The ULN-2 Expanded has a v.5 configurable mixer that provides mixing and routing with near-zero latency. It also has flexible powering options, thanks to the 4-pin XLR power input, which provides compatibility with a variety of broadcast battery systems. It is also bus-powerable via FireWire for terrific flexibility and mobility. Metric Halo's unique +DSP processing is built-in to provide you with world-class effects without sacrificing your computer's processing power or introducing any additional latency into your monitor path. It also has a preset system and routing memory for stand-alone operation.
If you own a Metric Halo audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Metric Halo ULN-2 Expanded FireWire Audio 000-50006 DSP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Metric Halo ULN-2 Expanded FireWire Audio 000-50006 DSPDownload user manual for Metric Halo ULN-2 Expanded FireWire Audio 000-50006 DSP
(PDF file, 30.97 MB)
Additional parameters of the Metric Halo ULN-2 Expanded FireWire Audio 000-50006 DSP:
Specifications
    Gain Stepped Gain Range: +6dB to +72dB in 6dB Steps
    Range with Trim: -14dB to +70dB
    Max Gain: 72dB
    Input Impedance 3.3 kOhms
    Total Harmonic Distortion (THD) 0.0005%
    IMD -96dBu
    EIN -130.5dBu (150 Ohm Source)
    -132.0dBu (50 Ohm Source)
    -134.0dBu (0 Ohm Source)
    Frequency Response 18Hz - 20kHz ±0.1dB
    8Hz - 50kHz ±1.0dB
    3Hz - 100kHz ±3.0dB
    Crosstalk -107dB (Trim Link Engaged)
    -132dB (Trim Link Disengaged)
    Headroom 20dB Above Digital Clip (Preamp)
    Phantom Power 48V Regulated, High Current, Individually Switchable, P48 Test Compliant, Short Circuit/Hot-Swap Protected
    Connectors 2 x XLR/TRS Neutrik Combo Analog Inputs
    1 x XLR AES/EBU Digital Input
    1 x XLR AES/EBU Digital Output
    1 x RCA S/PDIF Digital Input
    1 x RCA S/PDIF Digital Output
    1 x Optical ADAT Digital Input
    1 x Optical ADAT Digital Output
    2 x FireWire 400 Connectors
    2 x BNC Word Clock Connectors (In/Out)
    1 x 1/4" Stereo Monitor Output
    1 x 1/4" Stereo Analog Output
    2 x 1/4" Sends
    2 x 1/4" Returns
    1 x 4-Pin XLR Power Input
    1 x 2.1mm Coaxial DC Power Connector
    Controls Stepped Gain (12 Steps)
    Continuous Attenuator on Return
    Attenuation Link
    Mic/Line Selector Switch
    Independent Monitor Volume Controls
    Independent Phantom Power Controls
    Power 8W @ 9-30VDC
    Dimensions (WxDxH) 13.5 x 8.25 x 1.73" (343 x 210 x 44mm)
    Weight 4 lbs (1.8kg)
    Packaging Info
    Package Weight 7.6 lb
    Box Dimensions (LxWxH) 19.3 x 14.7 x 5.1"
