User manual for the Midas DL351 Modular I/O Unit DL351

The user manual for the Midas DL351 Modular I/O Unit DL351 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixer Accessories.

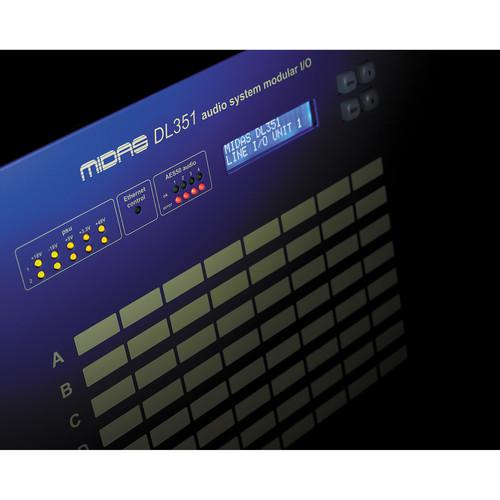

The Midas DL351 Modular I/O Unit has the capacity to house up to 8 cards in a user-configurable format, which can be any combination of 8 analog mic/line in, 8 analog out (XLR), 8 analog TRS line-level in and out, 8 digital in and out (4 AES/EBU pairs), or a 25-pin D-sub card with 8 analog mic/line inputs and 8 outputs.

MIDI in, out, and thru, and GPIO connections are supplied as standard. Its digital audio interface is via 4 AES50 ports, one of which can be configured as a spare redundant connection. Dual-redundant power supplies with locking IEC connectors are fitted as standard.
If you own a Midas digital mixer accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Midas DL351 Modular I/O Unit DL351 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas DL351 Modular I/O Unit DL351:
Specifications
    Inputs Analog: 3-pin XLR balanced; 8 x 1/4" TRS (returns)
    Digital: AES3 (two channels of digital audio) on 3-pin XLR
    MIDI: 5-pin DIN
    GPIO: 25-pin D-type (opto isolated)
    System connector: 3 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR
    N+1 connector: 1 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR providing redundant backup
    Outputs Analog: 3-pin XLR balanced; 8 x 1/4" TRS (sends)
    Digital: AES3 (two channels of digital audio) on 3-pin XLR
    MIDI: 5-pin DIN
    GPIO: 25-pin D-type (opto isolated)
    System connector: 3 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR
    N+1 connector: 1 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR providing redundant backup
    Sample Rates Input: accepts any frequency between 32 to 96k
    Output: 48k, 96k or auto tracking to inputs
    Conversion A/D and D/A: 24-bit, 96k and 128 times over sampling
    Bypass Sample rate converter can be bypassed
    Operating Temperature 41 - 104°F (5 - 40°C)
    Storage Temperature -4 - 140°F (-20 - 60°C)
    Power Requirements 100 - 240 VAC, 50 - 60 Hz
    Dimensions 7U x 16.1" (7U x 41.0 cm )
    Weight 110.2 lb (50.0 kg)
    Packaging Info
    Package Weight 46.9 lb
    Box Dimensions (LxWxH) 24.0 x 21.0 x 18.5"
    The user manual for the Midas DL351 Modular I/O Unit DL351 can be downloaded in .pdf format if it did not come with your new digital mixer accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Midas users keep a unique electronic library for Midas digital mixer accessoriess, where you can use our link to download the user manual for the Midas DL351 Modular I/O Unit DL351.

    The user manual lists all of the functions of the Midas DL351 Modular I/O Unit DL351, all the basic and advanced features and tells you how to use the digital mixer accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Midas service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Midas DL351 Modular I/O Unit DL351. User manuals are also available on the Midas website under Pro Audio - Recording - Digital Mixer Accessories.
