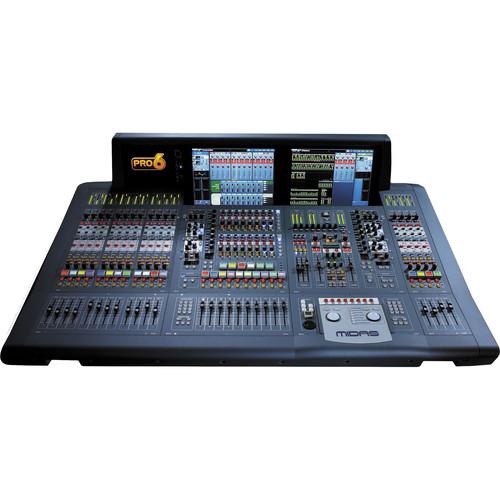

The touring package version of the MIDAS PRO6 Live Audio Mixing System is designed for live sound reinforcement such as in concert venues, theaters, houses of worship, broadcast, tours, and more. The system requires the Pro 6 version of the MIDAS DL371 modular, upgradeable, remote processing engine (Sold Separately) connected via Cat 5e cabling to a networked system of up to 11 discrete I/O devices, depending on the user's specific I/O requirements.
The package is designed to work with the DL351 modular stage box (sold separately), which features 56 MIDAS designed microphone inputs as well as eight analog XLR outputs. Additional I/O can be connected using any of the MIDAS DL series digital I/O units as well as the console's three rear panel card slots that can house any combination of MIDAS DL series I/O cards.
The default configuration features eight line inputs and eight analogue outputs, but the flexibility of the system allows for it to be quickly reconfigured with whatever connections are required. Redundant power supplies are included with every system as part of the PRO3's failure-tolerant architecture.
Additionally, the console features 8 auxiliary returns, all with 4-band parametric EQ and insert points. The auxiliary returns may be used as returns using the unit's eight internal multi-channel FX processors or as additional microphone input channels.
The console's 56 possible input channels may be routed to 27 phase coherent mix busses which comprise 16 user-configurable buses (as mixes, subgroups, or mix minus groups) and eight matrix buses. The matrix busses can receive their sources from inputs or groups which allows them to be used as eight additional auxiliary (monitor mix and fx sends) for a total of 24 mixes (plus L, R & Mono) for monitor mixing. All buses can be linked as stereo pairs, except the mono bus. As with other MIDAS digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.
The flexibility of being able to add both additional I/O and DSP modules allows for the console to be upgraded to a full PRO9 configuration over time, with features like 88 input channels, eight multichannel FX processors and 35 mix busses. Increased flexibility can be added to the system by utilizing a Klark Teknik DN9650 Network Bridge digital format converter offering MADI and Dante connectivity.
The standard PRO6 live audio system is modular, allowing for some variations in physical placement and system size. This version of the console is designed for touring applications and arrives in custom flight case.
If you own a Midas digital mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Midas PRO6 Live Audio Mixing System with 64 Input PRO6/CC/TP in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas PRO6 Live Audio Mixing System with 64 Input PRO6/CC/TP:
Specifications
I/O
Maximum Input Capacity: 288 Maximum Output Capacity: 294 Primary Inputs: 56 Return Inputs: 8 Maximum simultaneous mix channels: 80 Number of groups/auxes: 16 Number of matrices: 16 Groups that provide mixes in monitor mode: 32 Mix buses: 35 VCAs: 10 POPulation groups: 6 Effects devices: 8 Maximum Klark Teknik DN370: 36 Configurable 'area B': yes
Stage I/O: DL351 (56 inputs and 8 outputs, configurable I/O)
Expandability
Digital snake: dual redundant HyperMac (192 x 192) Cat 53 digital snake included Fiber-optic connections for optional maximum 500 m snake Additional I/O options: DL251 Audio System I/O DL351 Modular I/O DL431 Mic Splitter DL451 Modular I/O
I/O Card Options DL441 analog input (mic module) DL442 analog output module DL443 analog jack I/O module DL444 8 analog mic in and 8 analog line out module DL452 AES/EBU input and output module Option of 150 m fiber optic cable
Processor
32-bit
Reverb
Hall, Plate, Chamber and Room, with five variations of each
Pre-delay: 0 to 990 ms Pattern (density) Adjustable 0 to 9 increments (Grainy to Dense) Level (depth) Adjustable 0 to 9 increments (Distant to Close) Decay time 0.1 to 18 seconds Room size 8 to 90 meters linear dimension LF decay Adjustable ±7 increments ref. 1 kHz decay time HF decay Adjustable ±7 increments ref. 1 kHz decay time
Controls
Input mute: Removes audio feed from reverberation section. Reverb mute: Clears unwanted reverberant signal. Input level control: From 6 dB gain to infinite attenuation. Headroom indicator: 10-point LED display, 0 dB to -27 dB. Display" Simultaneous display of all parameter information. Parameter selection and store functions are verified by individual LEDs
Sampling Frequency
96 kHz
Latency Delay
<2 ms input to master (no compensation)
Dynamic Range
110 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain
80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix
Maximum Voltage Gain
80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix
Crosstalk
At 1 kHz: -100 dB physically adjacent input channel At 10 kHz: -100 dB physically adjacent input channels
Cut and Mix Transitions
Fader/pan cut off at 1 kHz: -100 dB Fader/pan cut off at 10 kHz: -100 dB
Display Screen
2 x 15" daylight-viewable color screens
LCD
33 x RGB color
Faders
29 x touch-sensitive faders with 1024 steps of resolution
Encoders
102 x touch-sensitive with 512 steps
Power Requirements
100 to 240 VAC, 50 to 60 Hz
Operating Temperature
41 to 104°F (+5 to 40° C)
Storage Temperature
-4 to 140° (-20 to 60°C)
Dimensions
Control Center: 51.18 x 39.37 x 15.75" (1300 x 1000 x 400 mm) DL251 I/O Box (5U): 19.0 x 17.5 x 16.1" (48.3 x 44.5 x 41.0 mm) DL351 I/O Box (7U): 19.0 x 24.5 x 16.1" (48.3 x 62.2 x 41.0 mm) DL371 I/O Box (7U): 19.0 x 24.5 x 16.1" (48.3 x 62.2 x 41.0 mm) DL451 I/O Box (3U): 19.0 x 10.5 x 16.1" (48.3 x 26.7 x 41.0 mm)
Weight
Control center: 265 lb (120 kg) DL351: 110 lb (50 kg) DL371: 66 lb (30 kg) DL451: 29 lb (13 kg) Total: 470 lb (213 kg)
