User manual Midas Verona 40-Channel Console V/400/8/IP

Operating instructions and pdf manual for use - Midas Verona 40-Channel Console V/400/8/IP User manual, User manual Midas Verona 40-Channel Console V/400/8/IP, Midas, Verona, 40-Channel, Console, V/400/8/IP, Video


User manual for Midas Verona 40-Channel Console V/400/8/IP

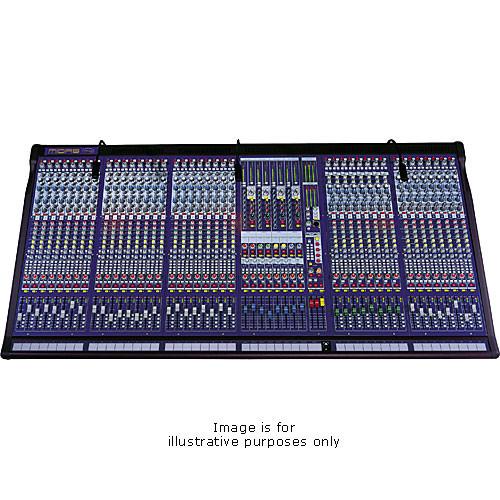

Midas  Verona 40-Channel Console V/400/8/IP
  • Manufacturer: Midas
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Midas
  • Settings and expert assistance
  • Contact Midas service
  • Troubleshooting
  • Warranty information
  • Price: 10 USD
We recommend checking out our discussion threads on the Midas Verona 40-Channel Console V/400/8/IP, which address similar problems with connecting and setting up Sound Reinforcement Mixers Midas.



User manual for the Midas Verona 40-Channel Console V/400/8/IP

The user manual for the Midas Verona 40-Channel Console V/400/8/IP provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

The Midas Verona is a large-format sound reinforcement console aimed squarely at the professional concert-sound market. The Verona retains the quality and feature set expected of Midas, resulting in ultra-quiet performance, flexible signal routing and an overall pristine sound quality. The console is an 8-bus unit with a variety of chassis configurations. This console features 40 input channels with balanced XLR microphone preamplifiers and 1/4" phone line inputs.
If you own a Midas sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Midas Verona 40-Channel Console V/400/8/IP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas Verona 40-Channel Console V/400/8/IP:
Total # Of Inputs 40
Mic/Line Inputs 40 Line: 1/4" Phone
40 Mic: 3-pin XLR
Stereo Line Inputs 4 Stereo: L/R 1/4" Phone
In-Line Inputs/Returns No
AUX Sends 4 Aux Sends: Balanced XLR Male
AUX Returns No
Inserts 40 Line: TRS 1/4" Phone
8 Group: TRS 1/4" Phone
2 Stereo Out: TRS 1/4" Phone
BUS (Group) Outputs 4 Group Outputs: 1/4" Phone
2 Trk Master I/O Main Outputs: Left / Right / Mono (sub) Balanced 3-pin XLR
2Trk In: L/R RCA Phono
2Trk Out: L/R RCA Phono
ALT I/O No
Monitor Outputs Monitor Out: L/R 1/4" Phone
EQ Section Hi Pass Slope: 12dB/Oct
Hi Pass Frequency: 80Hz
Treble Gain: +15 to -15dB
Treble Frequency: 12k
Hi Mid Gain: +15 to -15dB
Hi Mid Frequency: 400Hz to 8kHz
Hi Mid Bandwidth: 1 Oct. (Q=1.4)
Lo Mid Gain: +15 to -15dB
Lo Mid Frequency: 100Hz to 2kHz
Lo Mid Bandwidth: 1Oct. (Q=1.4)
Bass Gain: +15dB to -15dB
Bass Shelving Frequency: 80Hz
Solo/Mute Mute / PFL on all channels
Channel Level Control Faders
Trim/Gain Control Rotary Potentiometers
Phantom Power +48V Phantom Power (all mono channels)
Metering peak meters
Frequency Response 20Hz to 20kHz
Dynamic Range Not Specified By Manufacturer
Signal-to-Noise Ratio Summing Noise -90dBu
Total Harmonic Distortion (THD) Typ. 0.0007%
Power Supply External EPS 1200 External Power Supply
Dimensions (WxHxD) 61.78 x 9.15 x 30.76" (1569 x 232.34 x 781.25mm)
Weight 143.3lbs (65kg)
The user manual for the Midas Verona 40-Channel Console V/400/8/IP can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Midas users keep a unique electronic library for Midas sound reinforcement mixerss, where you can use our link to download the user manual for the Midas Verona 40-Channel Console V/400/8/IP.

The user manual lists all of the functions of the Midas Verona 40-Channel Console V/400/8/IP, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Midas service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Midas Verona 40-Channel Console V/400/8/IP. User manuals are also available on the Midas website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
