User manual for the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP

The user manual for the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP provides necessary instructions for the proper use of the product Pro Audio - Furniture & Racks - Cable & Power Management.

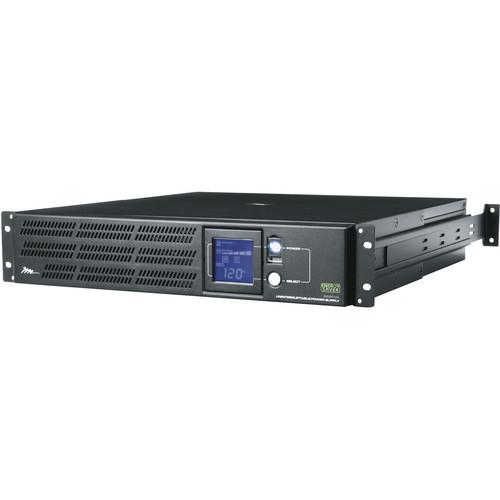

The Middle Atlantic UPS-2200R-CHIP Corded Uninterruptible Power Supply is line interactive with AVR. The UPS occupies 2 rackspaces and has a rear mounting range of 19 to 32". Moreover, this easy to install UPS requires only one person to mount the unit. It operates on 120 VAC / 60Hz current and has a nominal output of 120 V. The UPS has a capacity of 2150 VA and 1650 W. Moreover, it has a priority outlet bank consisting of 4 outlets dedicated to ensure maximum run time of critical components. Furthermore, it features a hardwired J-Box output and one critical and one non-critical load NEMA 5-20R receptacle.
If you own a Middle Atlantic cable & power management and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP:
Input
Input Voltage 120 V
Voltage Range 80 to 145 VAC
Frequency 60 Hz +/- 3 Hz (auto sensing)
Protection Circuits Resettable thermal fuse
Cord Length 9' (2.7 m)
Cord Type 12/3
Plug NEMA 5-20P
Consumption Green Mode Consumption: Less than 9 W at full battery capacity
Output Voltage 120 V
Capacity 2150 VA / 1650 W
Waveform Pure Sine Wave
Output Frequency Range On Line Output Frequency: 57 to 63 Hz for 60 Hz nominal
On Battery Output Frequency: 60 +/- 0.1 Hz
Transfer Rate 4 ms typical line to battery / battery to line
Overload Protection On line mode:
100% ≤ Load < 110% warning, 120 sec shutdown
110% ≤ Load < 125% warning, 40 sec shutdown
125% ≤ Load warning, 10 sec shutdown
On battery mode:
100% ≤ Load < 110% warning, 30 sec shutdown
110% ≤ Load < 125% warning, 10 sec shutdown
125% ≤ Load warning, 3 sec shutdown
Total Harmonic Distortion (THD) At 0% Total System Load:

Utility Mains THD: 2.0%
Battery Backup THD: 1.9%

At 20% Total System Load:

Utility Mains THD: 2%
Battery Backup THD: 1.3%

Typical 120 V power with 2-4% THD.

Surge Protection Lightning / Surge Protection:
L-N=>381 J (127 J x 3) Clamp voltage 270 V (Max energy 10 / 1000 μs)
RJ11 / RJ45 Protection:
Sidactor x 1 Clamp voltage 275 V Fuse (0.75 A / 250 V) x 2
Battery
Rating 12 V / 9.0 AH x 4
Charger Auto Charger: 1 A
Battery Hot Swappable External Battery: Yes
Run Time Run Time at Half Load: 13 minutes
Run Time at Full Load: 6.4 minutes
Diagnostics Control Panel: LCD Display Indicators, Power On
Audible Alarms: On Battery, Low Battery
Environmental
Operating Temperature 32 to 104° F (0 to 40° C)
Relative Humidity 0 to 95% Non-condensing
Communication & Connection
Software Middle Atlantic Power Manager
Communications Interface Primary: RS232 communication & control
                 Analog status notification & control
Secondary: Analog status notification only
USB Interface Yes (built-in)
Control UPS: Supports control via the Internet
Outlet: Bank control
Physical
Output Receptacles (8) NEMA 5-20R
Dimensions (W x H x D) 17 x 3.5 x 19.3" (432 x 423 x 89 mm)
Weight 77 lb (34.9 kg)
The user manual for the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP can be downloaded in .pdf format if it did not come with your new cable & power management, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Middle Atlantic users keep a unique electronic library for Middle Atlantic cable & power managements, where you can use our link to download the user manual for the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP.

The user manual lists all of the functions of the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP, all the basic and advanced features and tells you how to use the cable & power management. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Middle Atlantic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Middle Atlantic UPS-2200R-CHIP Corded UPS-2200R-CHIP. User manuals are also available on the Middle Atlantic website under Pro Audio - Furniture & Racks - Cable & Power Management.
