User manual Miller 1690 Arrow 40 Tripod System 1690

Operating instructions and pdf manual for use - Miller 1690 Arrow 40 Tripod System 1690 User manual, User manual Miller 1690 Arrow 40 Tripod System 1690, Miller, 1690, Arrow, 40, Tripod, System, 1690, Video


User manual for Miller 1690 Arrow 40 Tripod System 1690

Miller  1690 Arrow 40 Tripod System 1690
  • Manufacturer: Miller
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems
  • Safety instructions
  • Startup and operation of the tripod systems
  • Tips for setting up your Miller
  • Settings and expert assistance
  • Contact Miller service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Miller 1690 Arrow 40 Tripod System 1690, which address similar problems with connecting and setting up Tripod Systems Miller.



User manual for the Miller 1690 Arrow 40 Tripod System 1690

The user manual for the Miller 1690 Arrow 40 Tripod System 1690 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.

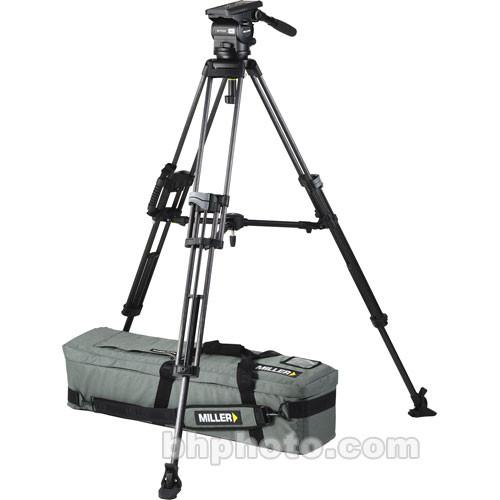

The Miller 1690 Arrow 40 tripod system consists of the Arrow 40 fluid head, 694 pan arm, 860 camera plate, 1576 Sprinter II 2-stage carbon fiber tripod, 990 mid-level spreader, and the Arrow 872 soft case.
If you own a Miller tripod systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Miller 1690 Arrow 40 Tripod System 1690 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Miller  1690 Arrow 40 Tripod System 1690Download user manual for Miller 1690 Arrow 40 Tripod System 1690
(PDF file, 3.07 MB)
Additional parameters of the Miller 1690 Arrow 40 Tripod System 1690:

Go To

General
Load Capacity 35.2 lbs (16.0 kg)
Maximum Height 66.7" (169.4 cm)
Maximum Height w/o Column Extended N/A
Minimum Height 23.8" (60.5 cm)
Folded Length 40.2" (102.0 cm)
Leveling Bubble/Illuminated Yes/Yes
Weight 22.1 lbs (10.05 kg)
Warranty 3-Year Warranty
Head
Counter Balance System 7-Step plus zero
Quick Release/Wedge Plate Yes
Balance Plate Yes
Tilt Drag 7-Step plus zero
Tilt Range -90 to +90°
Tilt Lock Caliper disc brake system
Spring Loaded Counter Balance 7-Step plus zero
Pan Range 360°
Pan Lock Caliper disc brake system
Legs
Material Carbon fiber composite
Head Attachment Fitting 100mm
Leg Stages/Sections 2/3
Leg Lock Type Sprint-Loks
Independent Leg Spread Yes
Spiked/Retractable Feet No
Center Brace Mid-level
Packaging Info
Package Weight 33.0 lb
Box Dimensions (LxWxH) 37.5 x 12.9 x 11.2"
The user manual for the Miller 1690 Arrow 40 Tripod System 1690 can be downloaded in .pdf format if it did not come with your new tripod systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Miller users keep a unique electronic library for Miller tripod systemss, where you can use our link to download the user manual for the Miller 1690 Arrow 40 Tripod System 1690.

The user manual lists all of the functions of the Miller 1690 Arrow 40 Tripod System 1690, all the basic and advanced features and tells you how to use the tripod systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Miller service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Miller 1690 Arrow 40 Tripod System 1690. User manuals are also available on the Miller website under Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.
