User manual for the MIPRO MA-708 Portable Sound System with CD MA-708PADB (5AH)
The user manual for the MIPRO MA-708 Portable Sound System with CD MA-708PADB (5AH) provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

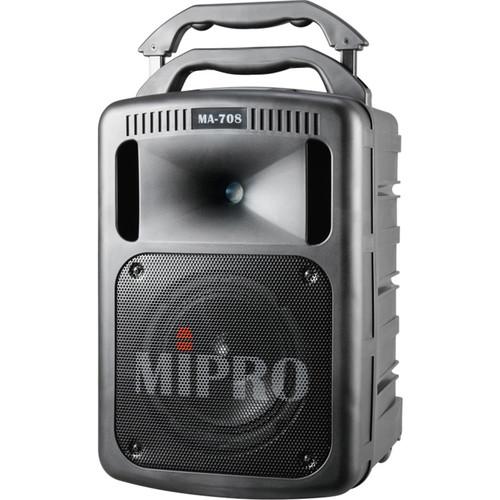

The black MA-708 Portable Sound System from Mipro is a modular, compact, and portable sound system package for music playback and voice reinforcement. The MA-708 Portable System can be powered by internal batteries and is housed in a rugged enclosure. The basic system is comprised of a 190W power amplifier, a control panel, and a rechargeable battery power supply. With the built-in rechargeable batteries, you can use the speaker for up to 7 hours. Alternatively, the MA-708 can be plugged into AC for continuous use. For wireless audio streaming, the MA-708 PA System comes with a built-in Bluetooth music player.
|
If you own a MIPRO portable pa systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MIPRO MA-708 Portable Sound System with CD MA-708PADB (5AH) in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the MIPRO MA-708 Portable Sound System with CD MA-708PADB (5AH):
| Maximum Power Output | 190 W; class D | | Sensitivity | Typical: 89 dB
Maximum: 108 dB | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Speaker | Tweeter: 1.0" (2.5 cm) compression driver
Bass: 8.0" (20.3 cm) woofer | | Coverage | 80 x 60° | | Audio Inputs | Wired: 1 x XLR & 1 x 1/4" (6.3 mm)
Wireless: Up to 4 wireless microphones
Audio Player: CDM-2A; CDM-2; CDM-2B; CDM-3A; DPM-3
Line-In: Unbalanced RCA jack | | Audio Output | Unbalanced line RCA jack | | Bluetooth | Supported | | Volume Control | Manual or wireless via ACT-32HR | | Controls | Tone, voice priority & echo on wireless mics | | Storage | Space for up to two handheld or bodypack transmitters | | Charge Time | Up to 8 hours (automatic charging management) | | Standby Time | Up to 7 hours | | Battery Indicator | 4-level indicator | | Power Supply | AC:
Built-in 100 to 240 VAC switching power supply (maximum 220 W consumption)
DC & Battery:
24 to 32 VDC, 12 V/4.5 AH rechargeable gel cell battery (2 x MB-70)or optional 2 x MB-80 | | Dimensions | 13.2 × 21.5 × 12.8" (33.6 × 54.5 × 32.5 cm) | | Weight | Approximately 36.0 lb (16.3 kg) with MB-70 batteries included | | Frequency Range | UHF 480 to 934 MHz | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Receiving Mode | CPU-controlled diversity receiving | | Oscillation Mode | PLL synthesized | | Sensitivity | 6 dBμV, at S/N > 80 dB | | Spurious Emissions | <82 dB | | S/N Ratio | >100 dBA | | THD | <0.5% @ 1 kHz (Dev = 32 kHz) | | Frequency Response | 60 Hz to 15 kHz (overall system) | | Squelch | PiloTone and NoiseLock dual-squelch circuit | | Audio Output | 610 mV rms | | Power Supply | 12 to 15 VDC | | Current Consumption | <250 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions | 3.0 x 1.4 x 5.6" (7.5 x 3.5 x 14.1 cm) | | Weight | Approximately 126.0 g (4.4 oz) | | Frequency Range | 480 to 934 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL Synthesized | | Channel Set-up | ACT sync | | Output Power | 10 mW/30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | Group, channel, battery status and error codes | | SPL | Maximum 140 dB | | Battery Type | 2 x AA alkaline | | Current Consumption | Approximately 92 mA | | Dimensions | 2.0 x 9.2" (5.0 x 23.3 cm) | | Weight | Approximately 8.7 oz (246.0 g) excluding batteries | |
