User manual Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32
Operating instructions and pdf manual for use - Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32 User manual, User manual Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32, Moog, Mother-32, Semi-Modular, Analog, Synthesizer, MOTHER-3
User manual for Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32
Manufacturer: Moog
Basic description and contents of package
Product classification: Pro Audio - Musical Instruments - Synthesizer Modules
Safety instructions
Startup and operation of the synthesizer modules
Tips for setting up your Moog
Settings and expert assistance
Contact Moog service
Troubleshooting
Warranty information
Price: 599 USD
We recommend checking out our discussion threads on the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32,
which address similar problems with connecting and setting up Synthesizer Modules Moog.
User manual for the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32
The user manual for the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Modules.

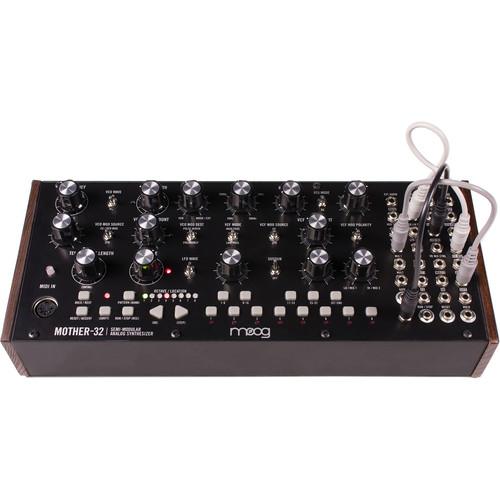

The Mother-32 from Moog is a semi-modular analog synthesizer with an integrated 32-step sequencer and 32-point patchbay with Eurorack compatibility. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI. The single oscillator is switchable between saw and square waveforms and offers pulse width modulation. The on-board LFO is capable of generating frequencies at audio levels and can be routed to the VCO, pulse width, filter cutoff. The classic 24 dB ladder filter is switchable between low-pass and high-pass with controls for cutoff and resonance. The envelope offers controls for attack and decay with sustain available via toggle switch.
The on-board sequencer offers 32 steps and can be saved into 64 sequencer preset slots. Each step can record note, glide, gate length, accent, rest, and ratchet information, while the sequencer itself can clock to MIDI and offers a global swing. The on-board 13-note keyboard can record into the sequencer in real-time or be used to step-record data. Additionally, the keyboard can transpose a running sequence in real-time.
The front panel of the Mother-32 can be removed from the chassis and placed within a standard Eurorack enclosure, making it fully compatible with a variety of Eurorack modules. The patch-bay offers 32 input and output points for signal routing including VCO waveform output, voltage control over resonance, LFO rate control, external audio input, keyboard CV tracking, and connections for controlling the sequencer. The Mother-32 ships with a power supply and 5 patch cables
If you own a Moog synthesizer modules and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32:
Specifications
Sound Engine
100% Analog
Keys
Momentary Pads: 13
Polyphony
Monophonic
Patchbay
32x 1/8" / 3.5 mm jacks
Rear Panel I/O
Audio Output: 1/4" / 6.35 mm
Power
Power Supply: 100-250 VAC, 50/60 Hz, +12 VDC 1 A Power Consumption: 2.8 W Eurorack Current Draw: +12 VDC, 230 mA (10-pin header)
Dimensions (W × H × D)
Desktop Case: 12.6 x 4.2 x 5.2" / 31.9 x 10.7 x 13.3 cm Eurorack Mounting: 60 HP Module Depth: 0.7" / 17.5 mm
Moog Mother-32 Semi-Modular Analog Synthesizer: Quick Listen
The user manual for the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32 can be downloaded in .pdf
format if it did not come with your new synthesizer modules, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Moog users keep a unique electronic library
for Moog synthesizer moduless,
where you can use our link to download the user manual for the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32.
The user manual lists all of the functions of the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32,
all the basic and advanced features and tells you how to use the synthesizer modules.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Moog service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Moog Mother-32 Semi-Modular Analog Synthesizer MOTHER-32. User manuals are also
available on the Moog website under Pro Audio - Musical Instruments - Synthesizer Modules.
