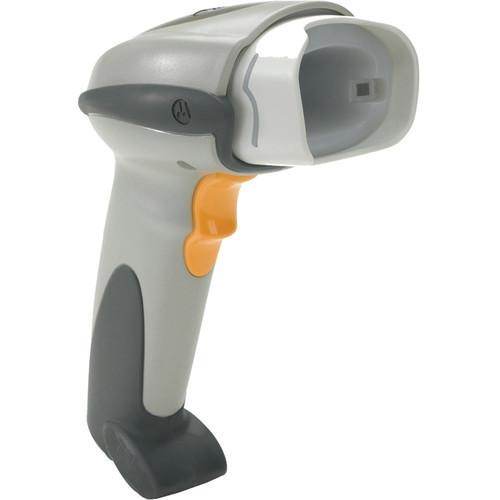

Capture 1D and 2D barcodes, images, and direct part marks with the versatile Motorola Symbol DS6707-DP Handheld DPM Digital Imager Scanner. This unit is fully compatible with 1D, PDF417, Postal, 2D, and DPM symbologies and has a good working range of 0 to 6.2". The DS6707-DP can also capture 1.3-megapixel images which can be exported as BMP, JPEG, and TIFF formats. For durability the scanner is rated to withstand multiple drops from 6' onto concrete.
An integrate LED light source is available for enhanced image and barcode capture in poor lighting conditions. Also, the DS6707-DP features a viewfinder, 360° omni-directional scanning, and a laser bulls-eye aiming pattern for fast, accurate target acquisition. Other abilities of this unit include text enhancement technology to make it more legible and compatibility with Remote Scanner Management. Additionally, it features both USB and RS232 interfaces.
If you own a Motorola barcode scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Motorola Symbol DS6707-DP Handheld DPM Digital DS6707-DP20001ZZR in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Motorola Symbol DS6707-DP Handheld DPM Digital DS6707-DP20001ZZR:
Aiming: 650 nm laser diode Illumination: 630 nm LED
Field of View
Vertical: 30° Horizontal: 40°
Roll
0-360°
Pitch
±65° or greater
Yaw
±60° or greater
Ambient Light Immunity
Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting
Supported Symbologies
1D: UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1DataBar (formerly RSS), Code 128, Code 128 Full ASCII, GS1-128 (formerly UCC/EAN-128), Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 PDF417: PDF417 and microPDF417 Postal: U.S. Postnet and Planet, U.K., Japan, Australian, Dutch, 4 State Postal, Post US4 2D: MaxiCode, DataMatrix (ECC 200), QR Code, microQR, Aztec DPM: Data matrix marks applied by dot peening; laser etch, ink marks, chemical etch, inkjet mold, case and thermal spray
Working Distance
Code 39, 3 mil: Up to 1.21" (3.07 cm) Code 39, 4 mil: Up to 1.83" (4.65 cm) Code 39, 5 mil: Up to 1.96" (4.98 cm) Code 39, 7.5 mil: Up to 2.96" (7.52 cm) Code 39, 10 mil: Up to 3.50" (8.89 cm) Code 39, 20 mil: Up to 6.21" (15.77 cm) 100% UPC, 13 mil: Up to 3.59" (9.12 cm) PDF417, 6.67 mil: Up to 1.59" (4.04 cm) PDF417, 10 mil: Up to 2.21" (5.61 cm) PDF417, 15 mil: 0.92-3.05" (2.34-7.75 cm) Data Matrix, 4 mil: Up to 1.00" (2.54 cm) Data Matrix, 5 mil: Up to 1.29" (3.28 cm) Data Matrix, 7.5 mil: Up to 1.71" (4.34 cm) Data Matrix, 10 mil: Up to 2.13" (5.41 cm) QR Code, 4 mil: Up to 1.00" (2.54 cm) QR Code, 5 mil: Up to 1.25" (3.18 cm) QR Code, 7.5 mil: Up to 1.67" (4.24 cm) QR Code, 10 mil: Up to 2.00" (5.08 cm)
Electrical Safety: UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1 Laser Safety: EN60825-1:1994 +A1: 2002 +A2 :2001, IEC60825-1, 21CFR1040.10 and 21CFR1040.11, CDRH Class II, IEC Class 2 EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24; Medical electrical equipment: EN60601-1-2: 2002 Environmental: Compliant with RoHS directive 2002/95/EECC
Temperature
Operating: 32 to 122°F (0 to 50°C) Storage: -40 to 158°F (-40 to 70°C)
Humidity
5-95%, non-condensing
Power Requirements
5 VDC ±10% at 350 mA
Dimensions
6.6 x 5.1 x 2.8" (16.6 x 12.9 x 7.1 cm)
Weight
7.4 oz (209 g)
