User manual for the MOTU Monitor 8 - Monitor Mixer, Headphone Amplifier, and 9340
The user manual for the MOTU Monitor 8 - Monitor Mixer, Headphone Amplifier, and 9340 provides
necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

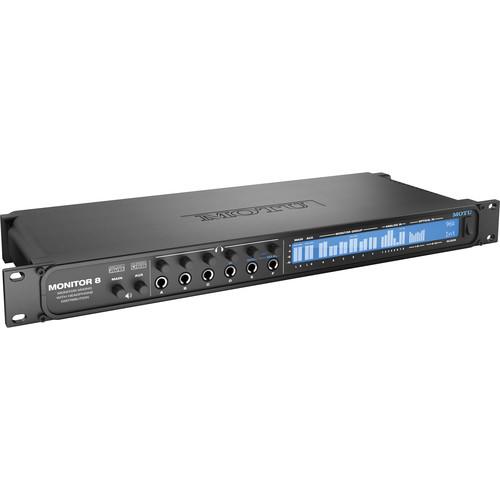

The Monitor 8 from MOTU is a single rack space 24 x 16 x 8 monitor mixer, 6-channel headphone amplifier and a USB 2.0 audio interface with industry-standard AVB networking for sub-millisecond network latency. The unit mixes 24 physical channels, multi-channel computer audio, and 64 AVB audio network channels to eight stereo bus outputs (Main, Aux, and monitor groups A-F). Each group output provides multiple mirrored outputs, which can be fed to in-ear monitoring systems or other stereo destinations. The Monitor 8 connects to a computer through USB 2.0, which provides more than enough bandwidth for the twenty-four channels, and, when connected through AVB networking, supports hundreds of network channels.
All devices on an AVB network can stream audio to and from a computer, and everything can be controlled simultaneously from any computers, tablets, and smartphones connected to the network. The interface delivers excellent analog performance with digitally controlled analog trim on the analog inputs, and includes a forty-eight-channel software mixer modeled after large format mixing consoles, DSP effects with 32-bit floating point precision, flexible matrix-style routing and splitting, stand-alone operation, and Wi-Fi control.
|
If you own a MOTU audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MOTU Monitor 8 - Monitor Mixer, Headphone Amplifier, and 9340 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the MOTU Monitor 8 - Monitor Mixer, Headphone Amplifier, and 9340:
| Mac OS System Requirements | 1 GHz Intel-based Mac or faster
2 GB RAM; 4 GB or more recommended
Mac OS X version 10.8 or later
Available high-speed USB 2.0 or AVB Ethernet port*
A large hard drive (at least 500 GB for recording)
*AVB Ethernet audio interface operation requires OS X Yosemite | | Windows System Requirements | * Windows support is coming soon…
1 GHz Pentium-based PC compatible or faster
2 GB RAM; 4 GB or more recommended
Windows 8 or later
Available high-speed USB 2.0 port
A large hard drive (at least 500 GB for recording) | | Web App Support | Any web client platform: Mac, Windows, Linux, iOS, Android
Any web browser: Safari, Firefox, Chrome, Opera, Explorer
Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi | | Included Software | Thunderbolt and USB 2.0 drivers
MOTU AVB Discovery App for Mac (finds connected MOTU interfaces)
MOTU AVB Discovery App for iOS (available from Apple App Store)
MOTU AVB Control web app (served from the hardware itself)
AudioDesk 4.0 for Mac & Windows (separate download) | | Mac OS Compatibility | MOTU Digital Performer
Avid Pro Tools (version 9 or later)
Apple Logic Pro
Apple Logic Express
Apple Garage Band
Apple SoundTrack Pro
Ableton Live
Propellerhead Record & Reason
Steinberg Cubase
Cockos Reaper
Native Instruments Kontakt
Waves stand-alone apps (and plug-ins, via compatible host) | | Windows Compatibility | *Windows support coming soon… MOTU Digital Performer
Avid Pro Tools (version 9 or later)
Ableton Live
Cakewalk Sonar
Steinberg Cubase
Propellerhead Record & Reason
Image Line FL Studio
Sony Vegas Pro
Sony Sound Forge
Sony Acid
Cockos Reaper
Native Instruments Kontakt
Waves stand-alone apps (and plug-ins, via compatible host) | | Sample Rate | 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Analog Inputs | 8 x 1/4" TRS line inputs (balanced/unbalanced)
Max Level: +24 dbU (digitally adjustable -96 to +22 dB)
Trim: -96 to +22 dB (digitally adjustable) | | Analog Outputs | 10 x 1/4" TRS line out (balanced, DC coupled)
6 x 1/4" TS line out (summed mono)
2 x XLR line out (pin 2 hot)
Max Level: +22 dBu
Trim: 127 to 0 dB (digitally adjustable)
12 x 1/4" TRS stereo headphone | | Digital Inputs | 2 banks (16 ch) of ADAT optical input at 1x rates
1 bank (8 ch) of SMUX optical input at 2x rates | | Total I/O Channels | 2 banks (16 ch) of ADAT optical input at 1x rates
1 bank (8 ch) of SMUX optical input at 2x rates | | Total I/O Connections | 24 inputs and 30 outputs (54 total) at 1x rates
16 inputs and 30 outputs (46 total) at 2x rates
8 inputs and 30 outputs (38 total) at 4x rates | | Total I/O Channels | 24 inputs and 16 outputs (40 total) at 1x sample rates
16 inputs and 16 outputs (32 total) at 2x sample rates
8 inputs and 16 outputs (24 total) at 4x sample rates | | Computer I/O | 1 x USB 2.0 audio class compliant, (USB 3.0 and iOS compatible)
1 x AVB Ethernet (requires OS X Yosemite) | | Headphone | 12 x 1/4" TRS stereo phone (mirrored in 6 pairs) | | Front Panel | 6 x 1/4" TRS headphone output
1 x digital rotary encoder for main out volume
1 x digital rotary encoder for aux out volume
6 x digital rotary encoders for phone volume
324 x 24 pixel LCD for level meters / menu navigation
1 x AC power switch | | Power | International 100-240 VAC auto-switching supply, 50-60 Hz, 0.5 A max | | Line Output | Connector Type: 1/4" TRS, balanced, tip hot Dynamic Range: 123 dB THD+N (A-weighted): -110 dB Max Level (unweighted): +22 dBu Trim Range (in 1 dB steps): 128 dB (-127 to 0 dBu) | | Line Input | Connector Type: 1/4" TRS, bal/unbal, tip hot Dynamic Range: 110 dB THD+N (A-weighted): -104 dB Max Level (unweighted): +24 dBu Trim Range (in 1 dB steps): 118 dB (-96 to +22 dB) | | Phones | Connector Type: 1/4", TRS stereo Dynamic Range: 108 dB THD+N (A-weighted): -100 dB Max Level (unweighted): Max 80 mw Trim Range (in 1 dB steps): 128 dB | | Dimensions (W x H x D) | 17.0 x 1.8 x 7.0" / 43.2 x 4.4 x 17.8 cm (without rack ears)
19.0 x 1.8 x 7.0" / 48.3 x 4.4 x 17.8 cm (with rack ears) | | Weight | 14.3 lb / 6.5 kg | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 23.7 x 11.5 x 5.5" | |
