User manual for the MSI H170 GAMING M3 ATX Motherboard H170 GAMING M3
The user manual for the MSI H170 GAMING M3 ATX Motherboard H170 GAMING M3 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Motherboards.

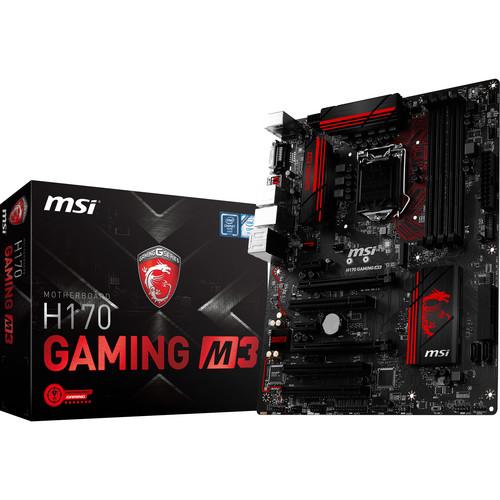

The MSI H170 GAMING M3 ATX Motherboard is a standard-sized motherboard that offers enough space to feature seven PCI slots as well as four memory slots. With an LGA1151 socket, you can build a Windows system that runs on a 6th-generation Skylake Intel processor. The memory slots can accept up to 64GB of DDR4 2133 MHz ECC memory modules. For drive support, this motherboard sports six SATA connectors along with an SATA Express and an M.2 slot, which utilizes the PCIe lanes to offer a bandwidth of 32 Gb/s.
MSI has equipped this motherboard with two PCIe 3.0 x16, two PCIe 3.0 x1, and three PCI slots. The two PCIe 3.0 x16 slots allow you to install two dedicated graphics cards that can be linked via AMD CrossFire technology. This motherboard is also compatible with integrated Intel graphics chipsets, which output visuals via the motherboard's DVI-D and HDMI ports. To complete the multimedia experience, it comes with Audio Boost 3 with Nahimic Sound technology to deliver clear sound and music through 8-channel HD audio jacks.
This motherboard is outfitted with four USB 2.0 and four USB 3.0 ports as well as a PS/2 combo port to connect with your peripherals such as a printer, external drive, and scanner. To access the Internet, it also includes a Killer Gigabit LAN controller that has been enhanced with Advanced Stream Detect 2.0, which maximizes the networking performance for your online games.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI H170 GAMING M3 ATX Motherboard H170 GAMING M3 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI H170 GAMING M3 ATX Motherboard H170 GAMING M3:
Specifications
CPU Support
Supports 6th Gen Intel Core i3/i5/i7 processors along with Intel Pentium and Celeron processors for Socket LGA1151
Chipset
Intel H170 Chipset
RAM
4 x DDR4 memory slots support up to 64 GB Supports DDR4 2133 MHz Dual channel memory architecture Supports ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Slots
2 x PCIe 3.0 x16 slots 2 x PCIe 3.0 x1 slots 3 x PCI slots
Display
1 x HDMI port, supports a maximum resolution of 4096 x 2160 @ 24 Hz, 2560 x 1600 @ 60 Hz 1 x DVI-D port, supports a maximum resolution of 1920 x 1200 @ 60 Hz Supports 2-Way AMD CrossFire technology
Storage
Intel H170 Express Chipset 6 x SATA 6 Gb/s ports 1 x M.2 slot, support PCIe 3.0 x4 and SATA III standards 1.7", 2.4", 3.1" (42.0 mm, 60.0 mm, 80.0 mm) length M.2 SSD cards Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with optional Turbo U.2 Host Card 1 x SATA Express port Supports RAID 0, RAID 1, RAID 5, and RAID 10 Supports Intel Smart Response Technology for Intel Core processors
USB
Intel H170 Chipset 6 x USB 3.0 (SuperSpeed USB) (4 ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) (4 ports on the back panel, 2 ports available through the internal USB connectors)
Audio
Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN
1 x Killer E2400 Gigabit LAN controller
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 6 x SATA 6 Gb/s connectors 1 x SATA Express connector 1 x USB 2.0 connector (support additional 2 USB 2.0 ports) 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial port connector 1 x Parallel port connector 1 x Slow mode switch
Back Panel I/O Ports
1 x PS/2 keyboard/ mouse port 4 x USB 2.0 ports 1 x DVI-D port 1 x HDMI port 4 x USB 3.0 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function that records your motherboard specifications. 1 x 128 Mb flash UEFI AMI BIOS ACPI 5.0, PnP 1.0a, SM BIOS 2.8 Multi-language
