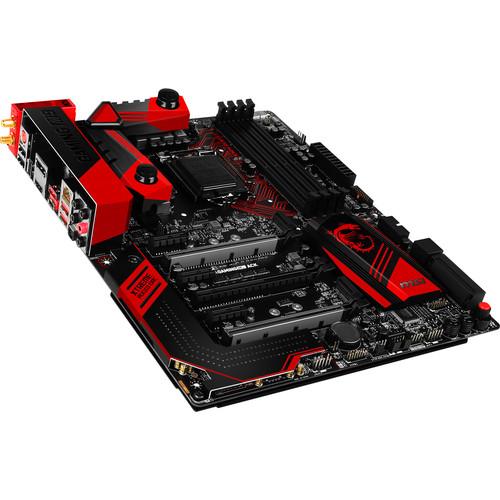

Build a system with a 6th-generation Intel processor and up to 64GB of DDR4 RAM with the Z170A Gaming M9 ACK ATX Motherboard from MSI. It comes built with a Killer Wi-Fi adapter that delivers 802.11ac speeds and Bluetooth 4.1 technology. You also receive two USB 3.1 ports, and one of these ports features a Type-C connector. MSI has equipped this motherboard with two 32 Gb/s M.2 slots to support high-speed PCIe M.2 SSDs. In addition to the M.2 slots, this motherboard features three PCIe 3.0 x16 slots along with SLI and CrossFire technologies so you can build a high-powered gaming machine. Moreover, MSI has included overclocking capabilities such as Click BIOS 5, OC Engine 2, and three buttons to adjust the settings for your processor, RAM, and graphics cards.
This motherboard offers an LGA 1151 socket along with four DIMM slots. It comes with six SATA 6 Gb/s and two SATA Express connectors. To enhance the performance of your drives, the Z170 chipset provides various RAID modes for your SATA-based storage drives as well as RAID 0 or RAID 1 for M.2 drives. With Killer DoubleShot Pro, the built-in Killer Gigabit LAN controller works with the Wi-Fi to maximize networking performance for online games. MSI also includes software for your mouse and keyboard to enhance them with macro combinations, which let you run multiple commands with a single click.
MSI has outfitted this motherboard with three USB 2.0 and two USB 3.0 ports as well as a PS/2 combo port. For visuals, it comes with a single HDMI port along with a DisplayPort. To complete the multimedia experience, it's built with a C-Media 122dB 384kHz/32-Bit HD audio processor, ESS SABRE HiFi dedicated DAC, and Nahimic Sound Technology along with other audio components to deliver clear sound and music. It also provides three PCIe 3.0 x1 slots for expansion cards.
If you own a MSI motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the MSI Z170A Gaming M9 ACK ATX Motherboard Z170A GAMING M9 ACK in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MSI Z170A Gaming M9 ACK ATX Motherboard Z170A GAMING M9 ACK:
Specifications
CPU Support
Supports 6th Gen Intel Core i3/i5/i7 processors along with Intel Pentium and Celeron processors for Socket LGA1151
Chipset
Intel Z170 Express Chipset
RAM
4 x DDR4 memory slots support up to 64 GB Supports DDR4 3600(OC)/3200(OC)/3000(OC)/2800(OC)/2600(OC)/2400/2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Slots
3 x PCIe 3.0 x16 slots (support x16/x4/x0 or x8/x4/x8 or x8/x1/x8 modes) 3 x PCIe 3.0 x1 slots
Display
1 x HDMI port, supports resolutions of 4096 x 2160 @ 24 Hz, 2560 x 1600 @ 60 Hz 1 x DisplayPort, supports resolutions of 4096 x 2304 @ 24 Hz, 3840 x 2160 @ 60 Hz, 2560 x 1600 @ 60 Hz, 1920 x 1200 @ 60 Hz Supports 3-Way AMD CrossFire technology Supports 2-Way NVIDIA SLI technology
Storage
Intel Z170 Express Chipset 6 x SATA 6 Gb/s ports (4 ports reserved for SATA Express port) 2 x M.2 slots, support PCIe 3.0 x4 and SATA III standards 1.7 x 2.4 x 3.1" / 42.0 x 60.0 x 80.0 mm length M.2 SSD cards Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with optional Turbo U.2 Host Card 2 x SATA Express ports (PCIe 3.0 x2) Supports Intel Smart Response Technology for Intel Core processors
RAID
Intel Z170 Express Chipset Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
ASMedia ASM1142 Chipset 1 x USB 3.1 (SuperSpeed USB 10 Gbps) port on the back panel 1 x USB 3.1 Type-C port on the back panel
Intel Z170 Express Chipset 6 x USB 3.0 (SuperSpeed USB) (2 ports on the back panel, 4 ports available through the internal USB connector) 5 x USB 2.0 (High-speed USB) (3 ports on the back panel, 2 ports available through the internal USB connectors)
Audio
Cmedia CM6632 codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN
1 x Killer E2400 Gigabit LAN controller
Wireless LAN
Killer Wireless 1535 module Supports 2x2 802.11a/b/g/n/ac with advanced features Supports 20/40 MHz at 2.4 GHz and 20/40/80 MHz at 5 GHz Supports Miracast
Bluetooth
Killer Wireless 1535 module Supports Bluetooth v4.1
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 6 x SATA 6 Gb/s connectors 2 x SATAe connectors 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x GAME BOOST button 1 x Power button 1 x Reset button 1 x BIOS FLASHBACK+ button 1 x HOTKEY switch 1 x Slow mode switch 1 x Clear CMOS jumper 1 x 2-Digit Debug Code LED
Back Panel I/O Ports
1 x Clear CMOS button 1 x PS/2 keyboard/ mouse port 1 x USB 2.0 port 1 x USB 2.0 port (HOTKEY) 1 x USB 2.0 port (BIOS FLASHBACK+) 1 x DisplayPort 1 x HDMI port 1 x USB 3.1 Type-A port 1 x USB 3.1 Type-C port 1 x LAN (RJ45) port 2 x USB 3.0 ports 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.
