User manual Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E

Operating instructions and pdf manual for use - Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E User manual, User manual Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E, Nady, 351VR, VHF, Wireless, Lavalier, Micropho


User manual for Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Wireless Systems
  • Safety instructions
  • Startup and operation of the wireless systems
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 140 USD
We recommend checking out our discussion threads on the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E, which address similar problems with connecting and setting up Wireless Systems Nady.



User manual for the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E

The user manual for the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

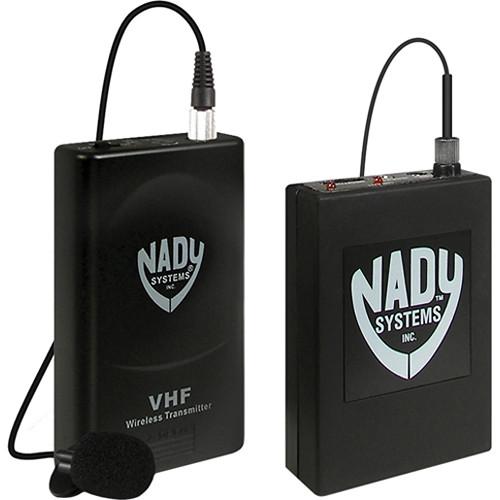

The Nady 351VR VHF Wireless Lavalier Microphone System is a portable system ideal for camera-mounted applications, or portable location use. The 351VR features a portable, camera-mountable receiver that may also be worn with a belt-clip. Also included is the WLT bodypack transmitter with LM-14O omnidirectional lavalier. Both the receiver and transmitter are powered with a 9V battery for up to 15 hours.
If you own a Nady wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/EDownload user manual for Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E
(PDF file, 0.26 MB)
Additional parameters of the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E:
Specifications
    System
    Type of System Portable Camera Mountable Lavalier
    RF Carrier Frequency Range Choice of 6 channel between 171.905 - 215.200 MHz
    Approx. Working Range Up to 250 feet (depending on site conditions)
    Overall Frequency Response 25Hz - 20kHz ± 3dB
    Total Harmonic Distortion (THD) < 0.3%
    Frequency Stability +/- 0.005%, crystal controlled
    Modulation FM, ± 15 kHz
    Receiver
    Type of Outputs 3.5 mm mini jack; Headset output; 3.5 mm mini jack
    Power Requirements Single 9V alkaline, internal
    Display "TX" on; "LOW BATT": unit "ON" (single flash), Low Battery Alert (steady)
    Antenna Type Soft-wire, detachable
    Transmitter
    Type of Transmitter Nady WLT Bodypack
    Type of Microphone LM-14O Lavalier
    Polar Pattern Omnidirectional
    Battery Type/Approx. Life Battery: 9V Alkaline
    Battery Life: Up to 15 hours
    Mute Switch OFF/STANDBY/ON switch
    Display Unit "ON" (single flash), Low Battery Alert (steady)
    Packaging Info
    Package Weight 0.9 lb
    Box Dimensions (LxWxH) 10.5 x 8.0 x 3.0"
    The user manual for the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E can be downloaded in .pdf format if it did not come with your new wireless systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady wireless systemss, where you can use our link to download the user manual for the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E.

    The user manual lists all of the functions of the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E, all the basic and advanced features and tells you how to use the wireless systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady 351VR VHF Wireless Lavalier Microphone System 351VR LT/O/E. User manuals are also available on the Nady website under Pro Audio - Location Sound - Wireless Systems.
