User manual Nady ALD-800 Wireless Assistive Listening System ALD 800/EE

Operating instructions and pdf manual for use - Nady ALD-800 Wireless Assistive Listening System ALD 800/EE User manual, User manual Nady ALD-800 Wireless Assistive Listening System ALD 800/EE, Nady, ALD-800, Wireless, Assistive, Listening, System,


User manual for Nady ALD-800 Wireless Assistive Listening System ALD 800/EE

Nady ALD-800 Wireless Assistive Listening System ALD 800/EE
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - IFB & Cueing
  • Safety instructions
  • Startup and operation of the ifb & cueing
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE, which address similar problems with connecting and setting up IFB & Cueing Nady.



User manual for the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE

The user manual for the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE provides necessary instructions for the proper use of the product Pro Audio - Location Sound - IFB & Cueing.

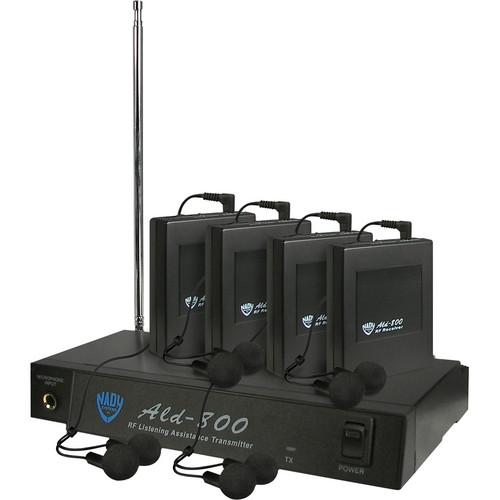

The ALD-800 from Nady is a versatile VHF wireless assistive listening system that allows you to share an audio source with multiple listeners up to 300' away, ideal for museums, theaters, houses of worship, educational facilities, and more. The system includes a base station transmitter and 4 beltpack receivers. The system can support an unlimited number of receivers (sold separately), allowing you to add as many listeners as you like. The system is pre-tuned to 1 of 8 channels designated for listening assistance by the FCC. This provides clear transmission, and also allows you to set up multiple systems for different applications in the same vicinity.

The transmitter has mic and line level 1/4" input connectors with a manual input gain control. It also offers an automatic level control function. It has an extendable and positionable antenna, and LED indicators to show when the unit is turned on and transmitting audio. The transmitter operates on DC power via the included wall adapter.

Each beltpack receiver is compact and lightweight, fitting easily into a pocket or clipping to clothing. The top panel offers a power/volume wheel with a power LED indicator. A standard 3.5mm headphone jack accommodates the included stereo earbuds, or most other consumer headphones. The receiver uses the headphone cable as the antenna to minimize bulk and weight. Each receiver operates on a single 9V battery.
If you own a Nady ifb & cueing and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE:
Specifications
    System
    Frequency Response 100Hz - 15kHz ±3dB
    Signal to Noise Ratio 60dB
    Total Harmonic Distortion (THD) < 0.5%
    Carrier Frequency EE: 72.9MHz
    Frequency Stability > 0.005%
    Modulation FM, ±75kHz Max
    Wireless Range Up to 300' (91 m) Line-Of-Sight
    Transmitter
    Inputs 1 x 1/4" Mic Input (9VDC @ 1mA for Condenser Mic)
    1 x 1/4" Line Input
    Input Impedance Line: 100 kOhms
    Output Power 80,000µV @ 3 m
    Controls and Indicators 1 x Power Switch
    1 x Audio Input Gain Knob
    1 x Power LED
    1 x Audio Modulation LED
    Antenna Permanently Mounted Telescoping Whip
    Power Requirements 9VDC, Regulated @ 200mA, Adapter Included
    Dimensions (HxWxD) 1.25 x 8.25 x 4.25" (32 x 209 x 108mm)
    Weight 18.2 oz (500g)
    Receiver
    Audio Output 250mW Max into 16 Ohms
    Connectors 3.5mm Stereo Headphone Jack
    Controls and Indicators 1 x Power/Volume Wheel
    Antenna Uses Headphone Cable (Earbuds Included)
    Sensitivity 2µV for 12dB Sinad with Squelch Defeated, Squelches at 10µV for Minimum 50dB S/N Ratio
    Mute Mute Threshold: 8-10µV
    Battery Type/Life 1 x 9V Alkaline, Approx 17-20 Hours
    Dimensions (HxWxD) 3.35 x 2.75 x 0.75" (85 x 65 x 23mm)
    Weight 2.65 oz (73g) (Without Battery)
    Packaging Info
    Package Weight 3.2 lb
    Box Dimensions (LxWxH) 10.6 x 9.6 x 5.2"
    The user manual for the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE can be downloaded in .pdf format if it did not come with your new ifb & cueing, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady ifb & cueings, where you can use our link to download the user manual for the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE.

    The user manual lists all of the functions of the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE, all the basic and advanced features and tells you how to use the ifb & cueing. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady ALD-800 Wireless Assistive Listening System ALD 800/EE. User manuals are also available on the Nady website under Pro Audio - Location Sound - IFB & Cueing.
