User manual Nady J-12M 12" Passive Full Range 2-Way J-12 M

Operating instructions and pdf manual for use - Nady J-12M 12" Passive Full Range 2-Way J-12 M User manual, User manual Nady J-12M 12" Passive Full Range 2-Way J-12 M, Nady, J-12M, 12, Passive, Full, Range, 2-Way, J-12, M,


User manual for Nady J-12M 12" Passive Full Range 2-Way J-12 M

Nady J-12M 12
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 132 USD
We recommend checking out our discussion threads on the Nady J-12M 12" Passive Full Range 2-Way J-12 M, which address similar problems with connecting and setting up PA Speakers Nady.



User manual for the Nady J-12M 12" Passive Full Range 2-Way J-12 M

The user manual for the Nady J-12M 12" Passive Full Range 2-Way J-12 M provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

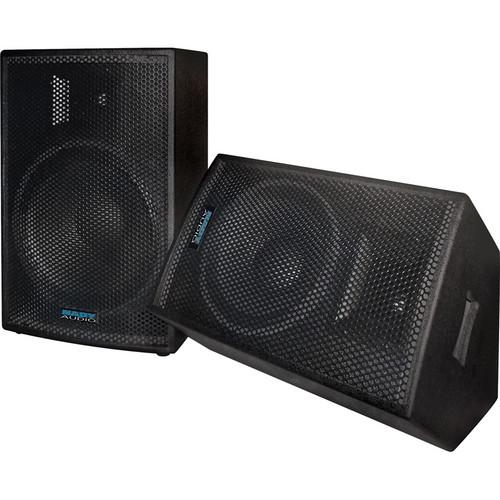

The J-12M from Nady is a powerful and versatile 2-way speaker ideal for touring applications. The rugged MDF cabinet has a durable polymer finish and a multi-purpose cabinet design for varying applications. It can be used at a 30° angle for distant stage monitoring, at a 45° angle for closer monitoring, at a 90° angle for horizontal shelf placement, or used upright for use as a front-of-house speaker.

The cabinet houses a 12" woofer and a 1" titanium tweeter to deliver a wide frequency response. The ported cabinet design helps to extend bass frequencies and provide a treble punch. A 7.5 x 6" directivity horn on the tweeter provides excellent imagining with a wide sweet spot, while a 2nd-order internal crossover with a tweeter surge protection circuit ensures that each driver performs to its fullest potential.

The speaker has a 700W peak power handling capability to deliver plenty of volume with low distortion. Speakon and 1/4" inputs allow you to connect to a variety of professional sound systems and devices. Integrated handles provide easy portability, while a standard 25mm pole socket lets you mount the speaker on a stand or on top of a subwoofer.
If you own a Nady pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady J-12M 12" Passive Full Range 2-Way J-12 M in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nady J-12M 12" Passive Full Range 2-Way J-12 M:
Specifications
    Active or Passive Passive
    Frequency Response 35Hz - 20kHz
    Power Capacity 700W Peak, 350W RMS
    Sensitivity 90dB
    SPL 92dB
    Impedance 8 Ohms
    Low Frequency Driver 12" (305mm) Woofer with 40 oz Magnet and 2" Voice Coil
    High Frequency Driver 1" (25mm) Titanium Tweeter with 1" Voice Coil and 7.5 x 6" Horn
    Dispersion 125°
    Enclosure 15mm MDF Cabinet with Polymer Finish, Metal Grille, Integrated Handles, and Rubber Feet
    Input Connections 1 x Speakon Input
    2 x 1/4" Inputs
    Mounting 35mm Pole Socket
    Dimensions (HxWxD) 22.2 x 14 x 15.8" (564 x 355 x 400mm)
    Weight 34.8 lbs (15.8kg)
    The user manual for the Nady J-12M 12" Passive Full Range 2-Way J-12 M can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady pa speakerss, where you can use our link to download the user manual for the Nady J-12M 12" Passive Full Range 2-Way J-12 M.

    The user manual lists all of the functions of the Nady J-12M 12" Passive Full Range 2-Way J-12 M, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady J-12M 12" Passive Full Range 2-Way J-12 M. User manuals are also available on the Nady website under Pro Audio - Live Sound - PA Speakers.
