User manual Nady SCM-800 Studio Condenser Microphone SCM 800

Operating instructions and pdf manual for use - Nady SCM-800 Studio Condenser Microphone SCM 800 User manual, User manual Nady SCM-800 Studio Condenser Microphone SCM 800, Nady, SCM-800, Studio, Condenser, Microphone, SCM, 800, Video


User manual for Nady SCM-800 Studio Condenser Microphone SCM 800

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

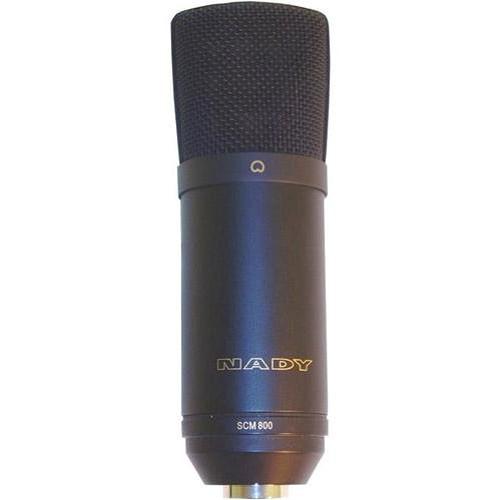

Nady  SCM-800 Studio Condenser Microphone SCM 800
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Large Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the large diaphragm condenser
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 47 USD
We recommend checking out our discussion threads on the Nady SCM-800 Studio Condenser Microphone SCM 800, which address similar problems with connecting and setting up Large Diaphragm Condenser Nady.



User manual for the Nady SCM-800 Studio Condenser Microphone SCM 800

The user manual for the Nady SCM-800 Studio Condenser Microphone SCM 800 provides necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

The SCM-800 Studio Condenser Microphone from Nady is designed for project studio recording, podcasts, light broadcast applications, and similar scenarios. The large diaphragm condenser microphone features a cardioid polar pattern for minimizing noise and feedback. There are transformerless FET output electronics for further minimizing noise, resulting in clear audio reproduction. Additionally, the large-diaphragm condenser element is internally shockmounted to reduce handling noise.
If you own a Nady large diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady SCM-800 Studio Condenser Microphone SCM 800 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nady  SCM-800 Studio Condenser Microphone SCM 800Download user manual for Nady SCM-800 Studio Condenser Microphone SCM 800
(PDF file, 0.15 MB)
Additional parameters of the Nady SCM-800 Studio Condenser Microphone SCM 800:

Go To

Operating Principle Pressure Gradient
Transducer Condenser
Diaphragm 0.98" (25.0 mm)
Polar Pattern Cardioid
Frequency Range 30 Hz to 20 kHz
Signal to Noise Ratio 70 dB
Equivalent Noise Level 20 dB A-Weighted
Maximum SPL 128 dB SPL 1%
Impedance 250 ohms
Load Impedance 1 kOhms
Sensitivity -40 dB
Power Requirements 48 V
Output Connectors 3-Pin XLR
Operating Current Consumption 5.0mA
General
Length 5.94" (151.0 mm)
Diameter 1.97" (50.0 mm)
Weight 11.8 oz (335 g)
Packaging Info
Package Weight 1.0 lb
Box Dimensions (LxWxH) 7.2 x 3.0 x 2.6"
The user manual for the Nady SCM-800 Studio Condenser Microphone SCM 800 can be downloaded in .pdf format if it did not come with your new large diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady large diaphragm condensers, where you can use our link to download the user manual for the Nady SCM-800 Studio Condenser Microphone SCM 800.

The user manual lists all of the functions of the Nady SCM-800 Studio Condenser Microphone SCM 800, all the basic and advanced features and tells you how to use the large diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady SCM-800 Studio Condenser Microphone SCM 800. User manuals are also available on the Nady website under Pro Audio - Recording - Large Diaphragm Condenser.
