User manual Nady WA-120 Portable Wireless PA System WA 120 LT/F

Operating instructions and pdf manual for use - Nady WA-120 Portable Wireless PA System WA 120 LT/F User manual, User manual Nady WA-120 Portable Wireless PA System WA 120 LT/F, Nady, WA-120, Portable, Wireless, PA, System, WA, 120, LT/F,


User manual for Nady WA-120 Portable Wireless PA System WA 120 LT/F

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Nady WA-120 Portable Wireless PA System WA 120 LT/F
  • Manufacturer: Nady
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your Nady
  • Settings and expert assistance
  • Contact Nady service
  • Troubleshooting
  • Warranty information
  • Price: 130 USD
We recommend checking out our discussion threads on the Nady WA-120 Portable Wireless PA System WA 120 LT/F, which address similar problems with connecting and setting up Portable PA Systems Nady.



User manual for the Nady WA-120 Portable Wireless PA System WA 120 LT/F

The user manual for the Nady WA-120 Portable Wireless PA System WA 120 LT/F provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

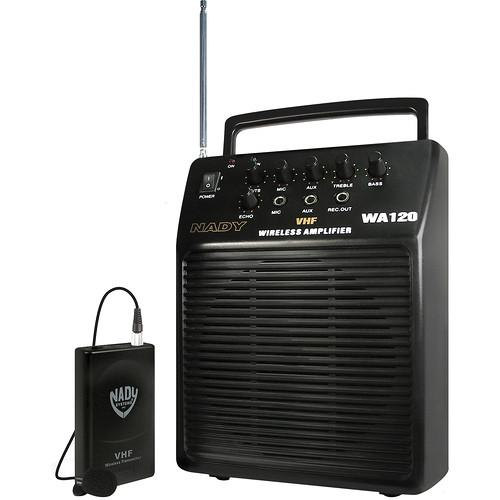

The Nady WA-120 Portable Wireless PA System is a lightweight, battery and AC powered speaker and wireless microphone system for presentations, tour applications, fitness instruction, worship, education and many other applications. The WA-120 speaker / receiver features a 20 watt amplifier and lightweight design with a carrying handle. Inputs for wired microphones and line level devices are also provided. The WLT bodypack transmitter and lavalier microphone are also included in this system.
If you own a Nady portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nady WA-120 Portable Wireless PA System WA 120 LT/F in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nady WA-120 Portable Wireless PA System WA 120 LT/FDownload user manual for Nady WA-120 Portable Wireless PA System WA 120 LT/F
(PDF file, 0.95 MB)
Additional parameters of the Nady WA-120 Portable Wireless PA System WA 120 LT/F:
Output Power 20W maximum, 4 ohms
Power External AC Power: 100~120VAC/60Hz or 200~240VAC/50Hz(as supplied)
AC Power consumption: 40 VA
External Power: 13V 1500mA AC/AC adapter
Internal Batteries: 8 "D" size alkaline batteries (SUM-1)
Charging current,9V battery charger: 5-70mA (DC)
Input Sensitivity MIC/TS: -52dB +/-2dB, 150-15KHz +/-3dB
Frequency Response MIC: -52dB +/-2dB, 150-15KHz +/-3dB
AUX: -18dB +/-2dB, 100-15KHz +/-3dB
THD 1%
Inputs One wireless mic, hardwired mic and AUX line inputs
EQ Section Treble: +/-5dB at 10KHz
Bass: +/-4dB at 200 Hz
Output Level 280mV at 100 Kohms
Frequency Range 170.245 MHz - 215.200 MHz
Distance 100 ft. typical, up to 200 ft. line of sight
Dimensions 8.3 x 10.6 x 5.4" (211 X 270 X 137mm)
Weight 5.3 lbs. (2.4 Kg.)
Packaging Info
Package Weight 6.0 lb
Box Dimensions (LxWxH) 15.5 x 11.7 x 8.3"
The user manual for the Nady WA-120 Portable Wireless PA System WA 120 LT/F can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nady users keep a unique electronic library for Nady portable pa systemss, where you can use our link to download the user manual for the Nady WA-120 Portable Wireless PA System WA 120 LT/F.

The user manual lists all of the functions of the Nady WA-120 Portable Wireless PA System WA 120 LT/F, all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nady service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nady WA-120 Portable Wireless PA System WA 120 LT/F. User manuals are also available on the Nady website under Pro Audio - Live Sound - Portable PA Systems.
