User manual for the Nagra LB Portable Stereo Audio Recorder LB

The user manual for the Nagra LB Portable Stereo Audio Recorder LB provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

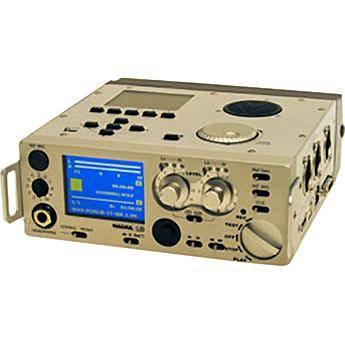

The Nagra LB is a stereo audio recorder designed for broadcasting and location recording that packs a wealth of features into a lightweight, compact, and portable design. It offers a pair of analog XLR inputs and a stereo digital XLR input for sending audio to the device. The LB can record audio at rates up to 24-bit/192kHz in Linear PCM, MPEG-1 layer 2, and MP3 formats. Audio is captured to readily-available CompactFlash memory cards. A 2GB internal memory serves as a backup if the CF card becomes full, and also provides a brief window for CF cards to be swapped mid-recording.

The unit has a built-in mic and speaker for making quick audio notes or listening to recorded material. USB Host and Device connectors allow you to connect the LB to a computer or to a USB drive for file transfer. A bright color LCD display lets you monitor system operation, while a second color LCD is dedicated to the unit's onboard editing functions. After editing, audio files can be shared via USB, through the LB's Ethernet port, or with a GSM phone using the LB's Bluetooth capability. The unit operates on 8 AA batteries for easy replacement in the field.
If you own a Nagra portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nagra LB Portable Stereo Audio Recorder LB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nagra LB Portable Stereo Audio Recorder LB:
Specifications
    Type Portable Stereo Audio Recorder
    Recording/Reading Methods CompactFlash Type II/III
    2GB Internal Flash Memory
    Recording Bit Rate 16 and 24-bit (BWF)
    32 to 384kbps (MP3)
    Sampling Frequency 44.1, 48, 88.2, 96, and 192kHz
    Number of Channels 2
    Frequency Response 10Hz - 48kHz
    Signal-to-Noise Ratio > 100dB
    Dynamic Range Not Specified by Manufacturer
    Total Harmonic Distortion (THD) < 0.1% (Mic)
    < 0.01% (Line)
    Connectors 2 x XLR Mic Inputs
    1 x Digital XLR Input
    1 x XLR Line Output
    1 x Digital XLR Output
    1 x 1/4" Headphone Jack
    2 x USB 2.0 Ports (Device, Host)
    1 x RJ-45 Ethernet Port
    Power 8 x AA Batteries
    Battery Life Up to 8 Hours
    Display 2 x Color LCD Displays
    Dimensions (WxHxD) 6.9 x 2.5 x 7.3" (175 x 65 x 185mm)
    Weight 3 lbs (1.4kg) (With Batteries)
    Packaging Info
    Package Weight 5.05 lb
    Box Dimensions (LxWxH) 6.5 x 5.25 x 2.5"
    The user manual for the Nagra LB Portable Stereo Audio Recorder LB can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nagra users keep a unique electronic library for Nagra portable digital recorderss, where you can use our link to download the user manual for the Nagra LB Portable Stereo Audio Recorder LB.

    The user manual lists all of the functions of the Nagra LB Portable Stereo Audio Recorder LB, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nagra service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nagra LB Portable Stereo Audio Recorder LB. User manuals are also available on the Nagra website under Pro Audio - Recording - Portable Digital Recorders.
