User manual for the NEC 23" Widescreen Professional Graphics P232W-BK-SV

The user manual for the NEC 23" Widescreen Professional Graphics P232W-BK-SV provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

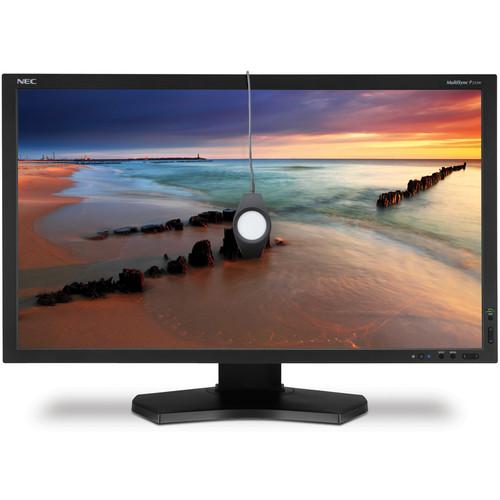

The 23" Widescreen Professional Graphics Desktop Monitor w/ SpectraViewll from NEC offers superior performance, a variety of connectivity options, and a crisp, clear display. The NEC monitor comes equipped with a large 23" viewable display giving you space to work and play. This expansive display comes at you in stunning 1920 x 1080 resolution in 16:9 aspect ratio. The 8ms response time helps to eliminate lag for those fast moving videos or games.

You can view your new NEC monitor in complete comfort with a wide 178° viewing angle. The additional tilt, swivel, and pivot and height adjustment capabilities allow for even more customization for increased viewing comfort. The on-screen display user controls make it simple to adjust the characteristics of the screen to be sure you see the picture clearly.

The no touch auto adjust feature allows for quick and easy configuration of the NEC monitor. With 14-bit 3D LUT, X-Light Pro, Black Level adjustment and AmbiBright you can be sure you are getting the clearest, highest quality picture available. The AmbiBright light sensor technology automatically adjusts the lighting of your monitor to the surrounding light conditions making it easier to view the display in a variety of lighting conditions.

Connecting your NEC monitor is a breeze with a wide variety of connection options including an integrated USB hub, VGA, DVI-D, HDMI and DisplayPort. The VGA port provides traditional analog configuration while the DVI-D, DHMI, and DisplayPort options provide newer digital connections. With DisplaySync Pro you have the ability to control two computers with only one keyboard and mouse.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC 23" Widescreen Professional Graphics P232W-BK-SV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC 23Download user manual for NEC 23" Widescreen Professional Graphics P232W-BK-SV
(PDF file, 4.12 MB)
Additional parameters of the NEC 23" Widescreen Professional Graphics P232W-BK-SV:
Panel/Display
Type LED Backlit IPS LCD Panel
Viewable Size 23"
Brightness 250 cd/m²
Contrast Ratio Typical: 1,000:1
Viewing Angle Horizontal: 178°
Vertical: 178°
Pixel Dot Pitch 0.27 mm
Response Time 8ms
Panel Life Not specified by manufacturer
Colors Supported 1.07 billion out of 4.3 trillion
Signal
Internal Interface USB hub, DisplayPort, DVI-D, HDMI, VGA
Frequency Horizontal: 32.5-83/118.4 kHz
Vertical: 50-85 Hz
Sync Type Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Resolution 1920 x 1080
Aspect Ratio 16:9
Input/Output Connectors
Analog 1 x VGA
Digital 1 x DisplayPort
1 x HDMI
1 x DVI-D
Audio Input None
Headphone Jack None
Hub Ports USB Hub (2up/3down) with DisplaySync Pro
Speakers None
Mount VESA 100 x 100 mm Configuration
Controls
Buttons Not specified by manufacturer
On-Screen Display Yes
Auto Configuration Yes
Touch Screen Yes
Tilt/Swivel Range Not specified by manufacturer
Security Not specified by manufacturer
Compliant Standards Energy Star 5.0, TCO 5.2, RoHS
System Requirements Source with VGA, DVI-D, HDMI, or DisplayPort output
Power Requirements Typical: 29W
Power Saving Mode: 0.3W
Environmental Requirements Operating Temperature: 41-95°F / 5-35°C
Storage Temperature: 14-140°F / -10-60°C
Operating Humidity: 30-80%
Storage Humidity: 10-85%
Operating Altitude: 6,562ft / 2,000m
Storage Altitude: 40,000fr / 12,192m
Dimensions (WxHxD) With Stand: 21.4 x 14.9-20.8 x 9" / 543.6 x 338-488 x 227.6 mm
Without Stand: 21.4 x 12.7 x 2.9" / 543.6 x 322.4 x 74 mm
Weight With Stand: 20.3lb / 9.2kg
Without Stand: Not specified by manufacturer
Packaging Info
Package Weight 29.85 lb
Box Dimensions (LxWxH) 25.0 x 18.0 x 13.0"
The user manual for the NEC 23" Widescreen Professional Graphics P232W-BK-SV can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC 23" Widescreen Professional Graphics P232W-BK-SV.

The user manual lists all of the functions of the NEC 23" Widescreen Professional Graphics P232W-BK-SV, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC 23" Widescreen Professional Graphics P232W-BK-SV. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
