User manual for the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4

The user manual for the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.

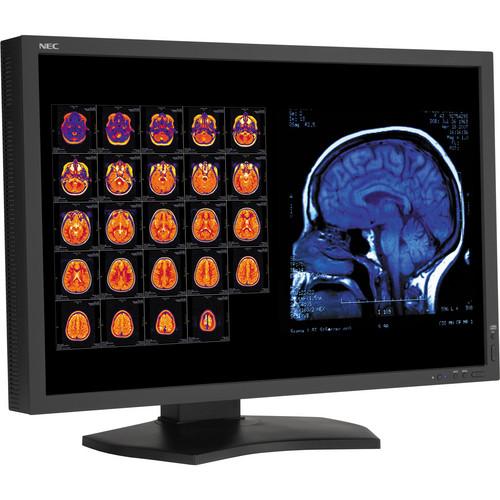

The NEC 30" Color 4-Megapixel Widescreen Medical Diagnostic Monitor is designed for viewing medical imaging and PACS. This 4Mp, 2560 x 1600 native resolution monitor boasts excellent viewing. Out-of-the-box DICOM calibration helps to keep up the high-level of viewing performance over time. Additionally, features like the AmbiBright ambient light sensor, automatic luminance control, and Dual Uniformity Control, among others ensure accurate viewing for the most sensitive of medical needs. Additionally, this 30" screen also provides 2 DisplayPort inputs and 2 DVI-D inputs, along with 2 up / 3 down USB hubs with DisplaySync Pro.
If you own a NEC medical diagnostic displays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC 30Download user manual for NEC 30" Color 4-Megapixel Widescreen Medical MD301C4
(PDF file, 4.34 MB)
Additional parameters of the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4:
Specifications
    Panel/Display
    Type LCD
    Viewable Size 29.8"
    Brightness Calibrated: 250cd/m2
    Max: 350cd/m2
    Contrast Ratio 1000:1
    Viewing Angle 178° vertical, 178° horizontal
    Pixel Dot Pitch 0.25 x 0.25
    Response Time 7ms
    Colors Supported 1.07 billion colors
    Connection/Interface 2 x DisplayPort
    2 x DVI-D
    2 Up / 3 down USB Hubs with DisplaySync Pro
    Frequency Horizontal: 31.5-98.7kHz (digital only)
    Vertical: 30-87Hz
    Sync Type Separate Sync: TTL Level (Positive/Negative); Composite Sync: TTL Level (Positive/Negative); Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
    Resolution 2560 x 1600
    Mount 100 x 100mm, 200 x 100mm
    Power Consumption On: 155W
    Power Savings mode: 1.7W
    Environmental Requirements Operating temperature: 41 to 95°F / 5 to 35°C
    Operating humidity: 30 to 80%
    Operating altitude: 10,000'/3048m
    Storage temperature: 14 to 140°F / -10 to 60°C
    Storage humidity: 10 to 85%
    Storage altitude: 40,000'/12,192m
    Dimensions With stand: 27.1 x 18.4-24.3 x 11.9" / 687.3 x 467.6-617.2 x 302.3mm
    Without stand: 27.1 x 17.6 x 4.9" / 687.3 x 447 x 124.5mm
    Weight With stand: 41.5 lb / 18.8kg
    Without stand: 27.6 lb / 12.5kg
    Packaging Info
    Package Weight 55.2 lb
    Box Dimensions (LxWxH) 33.0 x 24.5 x 17.0"
    The user manual for the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4 can be downloaded in .pdf format if it did not come with your new medical diagnostic displays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC medical diagnostic displayss, where you can use our link to download the user manual for the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4.

    The user manual lists all of the functions of the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4, all the basic and advanced features and tells you how to use the medical diagnostic displays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC 30" Color 4-Megapixel Widescreen Medical MD301C4. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.
