User manual NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK

Operating instructions and pdf manual for use - NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK User manual, User manual NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK, NEC, AS172-BK, 17, LED, Backlit, LCD, Monitor, AS172-BK,


User manual for NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK

NEC AS172-BK 17
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
  • Price: 140 USD
We recommend checking out our discussion threads on the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK

The user manual for the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

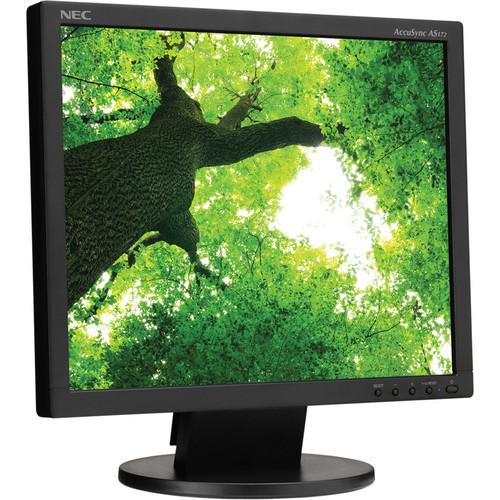

The AS172-BK 17" LED Backlit LCD Monitor from NEC features a 17" viewable display complete with a 1280 x 1024 native resolution, a 1,000:1 contrast ratio, a 5 ms response time, and a brightness rating of 250 cd/m². This 5:4 monitor can be viewed from a variety of angles as it supports 170° horizontal and vertical viewing angles. Setup and configuration of the AS172-BK has also been simplified as it comes equipped with DVI-D and VGA input connectors.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC AS172-BK 17Download user manual for NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK
(PDF file, 3.81 MB)
Additional parameters of the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK:
Display
Panel Technology TN
Viewable Image Size 17.00" / 43.18 cm
Aspect Ratio 5:4
Native Resolution 1280 x 1024
Pixel Pitch 0.26 mm
Pixels Per Inch 96 @ native resolution
Backlight Type W-LED
Brightness 250 cd/m²
Contrast Ratio 1,000:1 (typical)
Viewing Angles Horizontal: 170° (typical)
Vertical: 170° (typical)
(85U/85D/85L/85R) @ CR>5
Response Time 5 ms
Displayable Colors More than 16.7 million
Synchronization Range
Horizontal 31.5 - 81.1 kHz (analog/digital)
Vertical 56 - 76 Hz
Input Signal
Video Analog RGB 0.7 Vp-p / 75 Ohms
Sync Separate Sync: TTL level (positive/negative)
Composite Sync: TTL level (positive/negative)
Composite Sync on Green: (0.3 V p-p negative 0.7 V p-p positive)
Input Connectors
Inputs DVI-D, VGA 15-pin D-sub
Power Consumption Modes
On 11.00 watts
Power Saving Mode 0.15 watts
Other Specifications
VESA Compatibility 100 x 100 mm
Temperature Operating: 41 to 95°F / 5 to 35°C
Storage: 14 to 140°F / -10 to 60°C
Humidity Operating: 20 to 80%
Storage: 10 to 85%
Altitude Operating: 6,562 ft / 2,000 m
Storage: 40,000 ft / 12,192 m
Environmental Compliance ENERGY STAR 6.0, TCO 6.0, EPEAT Silver, RoHS
Dimensions (WxHxD) With Stand: 14.7 x 14.7 x 8.1" / 37.3 x 37.3 x 20.6 cm
Without Stand: 14.7 x 12.2 x 2.7" / 37.3 x 31.0 x 6.9 cm
Weight With Stand: 7.3 lb / 3.3 kg
Without Stand: 6.4 lb / 2.9 kg
Packaging Info
Package Weight 9.9 lb
Box Dimensions (LxWxH) 17.5 x 16.3 x 6.6"
The user manual for the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK.

The user manual lists all of the functions of the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC AS172-BK 17" LED Backlit LCD Monitor AS172-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
