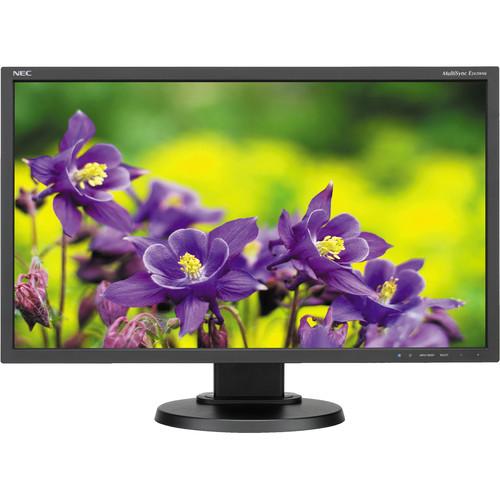

User manual NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK

Operating instructions and pdf manual for use - NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK User manual, User manual NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK, NEC, E243WMI-BK, 24, Widescreen, LED, Backlit, IPS, E243WMI-


User manual for NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
NEC E243WMI-BK 24
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
  • Price: 259 USD
We recommend checking out our discussion threads on the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK

The user manual for the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

The E243WMI-BK 24" Widescreen LED Backlit IPS Monitor from NEC features a widescreen 16:9 aspect ratio with a 1920 x 1080 native resolution. In addition to the Full HD resolution, this IPS (in-plane switching) monitor supports 178° horizontal and vertical viewing angles, allowing for enhanced viewing from nearly angle with reduced distortion. This display supports a 1,000:1 contrast ratio and a 5 ms response time, further enhancing your photos, videos, and other content.

On the back of the monitor, you'll find DisplayPort, DVI-D, and VGA 15-pin D-sub connectors making it simple to connect this monitor to a variety of PC configurations. Once configured, you can tilt, swivel, pivot, and adjust the height of the monitor for enhanced viewing comfort.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC E243WMI-BK 24Download user manual for NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK
(PDF file, 2.63 MB)
Additional parameters of the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK:
Specifications
    Panel Technology IPS
    Viewable Image Size 23.8"
    Aspect Ratio 16:9
    Native Resolution 1920 x 1080
    Pixel Pitch 0.28 mm
    Pixels Per Inch 93 @ native resolutions
    Backlight Type W-LED
    Brightness 250 cd/m² (typical)
    Contrast Ratio 1,000:1 (typical)
    Viewing Angles Horizontal: 178°
    Vertical: 178°
    (89U/89D/89L/89R) @ CR>10
    Response Time 5 ms (typical)
    Displayable Colors More than 16.7 million colors
    Synchronization Range Horizontal
    31.5-81.1 KHz
    Vertical
    56-76 Hz
    Input Signal Video Analog
    RGB 0.7 Vp-p/75 Ohms
    Sync
    Separate Sync: TTL Level (Positive/Negative)
    Composite Sync: TTL Level (Positive/Negative)
    Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
    Input Connectors DisplayPort, DVI-D, VGA 15-pin D-sub
    Power Consumption On
    19 W
    Power Savings Mode
    0.4 W
    VESA Compatibility 100 x 100 mm
    Operating Temperature 41 to 95°F / 5 to 35°C
    Operating Humidity 20 to 80%
    Operating Altitude 6,562 ft / 2,000 m
    Storage Temperature 14 to 140°F / -10 to 60°C
    Storage Humidity 10 to 85%
    Storage Altitude 40,000 ft / 12,192 m
    Environmental Compliance ENERGY STAR 6.0, TCO 6.0, EPEAT Silver, RoHS
    Dimensions (WxHxD) With Stand: 22.0 x 14.9-19.3 x 8.4" / 55.78 x 37.96-48.96 x 21.39 cm
    Without Stand: 22.0 x 13.0 x 2.3" / 55.78 x 33.14 x 5.85 cm
    Weight With Stand: 13.9 lb / 6.3 kg
    Without Stand: 9.5 lb / 4.3 kg
    Packaging Info
    Package Weight 18.35 lb
    Box Dimensions (LxWxH) 26.5 x 17.0 x 8.5"
    The user manual for the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK.

    The user manual lists all of the functions of the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC E243WMI-BK 24" Widescreen LED Backlit IPS E243WMI-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
