User manual NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK

Operating instructions and pdf manual for use - NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK User manual, User manual NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK, NEC, MultiSync, EA275UHD-BK, 27, 4K, UHD, sRGB, IPS, EA275


User manual for NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
NEC MultiSync EA275UHD-BK 27
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
NEC MultiSync EA275UHD-BK 27 NEC MultiSync EA275UHD-BK 27
Click to enlarge image

We recommend checking out our discussion threads on the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK

The user manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

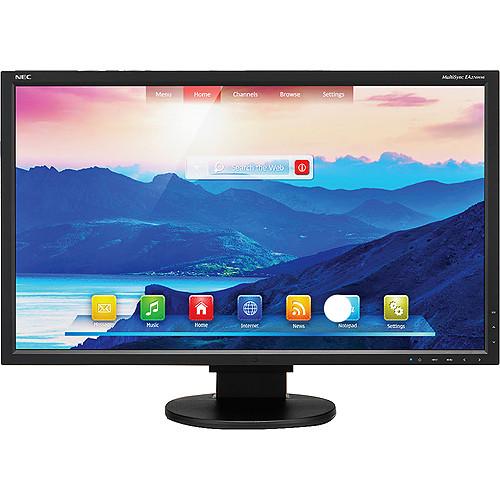

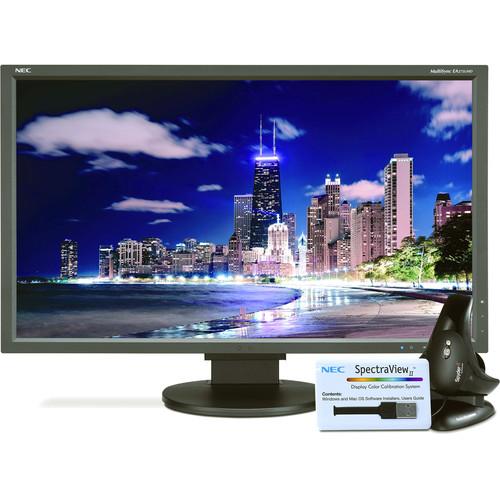

The NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS Monitor features a resolution of 3840 x 2160 that provides a large on-screen workspace so you can easily view the details in images and extra rows in a spreadsheet. It is outfitted with an IPS panel that delivers vivid colors and 178° viewing angles. For connectivity, it's compatible with systems that have a DisplayPort, HDMI, or a DVI-D port. In addition, you can display the visuals from two systems at the same time. Moreover, NEC has equipped this monitor a 3-port USB 3.0 hub to provide your system with extra USB ports.

This NEC MultiSync 4K monitor offers a response time of 6 ms and a 1000:1 contrast ratio. It comes with a 350 cd/m² brightness level for enhanced visibility in a brightly lit room. Furthermore, the integrated sensors detect the amount of light in your environment and automatically adjust the display's brightness. You can attach the monitor to the wall using an optional VESA 100 x 100mm compliant mount to save desk space, or attach the monitor to the included stand and tilt, swivel, or pivot the display to suit your viewing needs.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC MultiSync EA275UHD-BK 27Download user manual for NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK
(PDF file, 3.97 MB)
Additional parameters of the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK:
Specifications
Panel AH-IPS
Viewable Image Size 27.0" / 68.6 cm
Aspect Ratio 16:9
Native Resolution 3840 x 2160
Pixel Pitch 0.16 mm
Pixels Per Inch 163 @ native resolution
Backlight Type LED
Brightness 350 cd/m²
Contrast Ratio 1000:1
Viewing Angle Vertical: 178°
Horizontal: 178°
89U/89D/89L/89R @ CR > 10
Response Time 6 ms
Frequency Horizontal (Digital): 31.5 to 135 kHz
Vertical: 30 to 75 Hz
Color Gamut Adobe RGB Coverage/Size: 78.1% / 81.6%
NTSC Coverage/Size: 75.1% / 78.0%
sRGB Coverage/Size: 100.0% / 110.1%
Colors 1.07 billion out of 4.3 trillion
Input 1 x DisplayPort 1.2
1 x HDMI 2.0
1 x DVI-D dual link
USB 1 x USB 3.0 upstream
3 x USB 3.0 downstream
Power Consumption On: 49 W
Power Savings Mode: 0.37 W
Height Adjustment 5.1" / 130.0 mm
VESA Compatibility 100 x 100 mm
Temperature Operating: 41 to 95°F / 5 to 35°C
Storage: 14 to 140°F / -10 to 60°C
Humidity Operating: 20 to 80%
Storage: 10 to 85%
Altitude Operating: 16,404.2' / 5,000.0 m
Storage: 40,000.0' / 12,192.0 m
Environmental Compliance ENERGY STAR 6.0, TCO 6.0, EPEAT Gold, RoHS
Dimensions (W x H x D) With Stand: 25.2 x 16.5 - 21.6 x 9.1" / 640.1 x 419.1 - 548.6 x 231.1 mm
Without Stand: 25.2 x 14.9 x 2.6" / 640.1 x 378.5 x 66.0 mm
Weight With Stand: 20.1 lb / 9.1 kg
Without Stand: 13.7 lb / 6.2 kg
Packaging Info
Package Weight 26.4 lb
Box Dimensions (LxWxH) 28.0 x 20.0 x 11.0"
4K UHD | NEC Display Solutions
The user manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK.

The user manual lists all of the functions of the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC MultiSync EA275UHD-BK 27" 4K UHD sRGB IPS EA275UHD-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
