User manual NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W

Operating instructions and pdf manual for use - NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W User manual, User manual NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W, NEC, NP-P451W, 4500-Lumen, Widescreen, Multi-Region, NP-P451


User manual for NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W

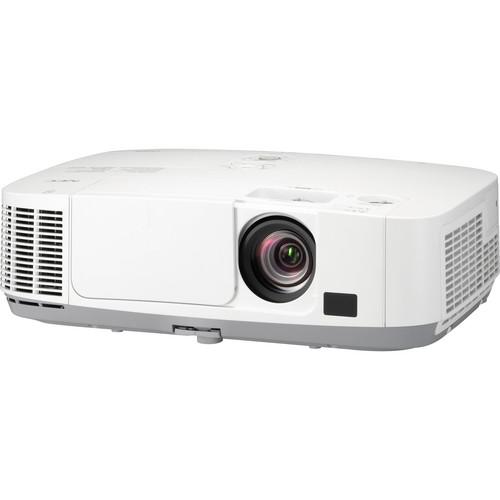

NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W, which address similar problems with connecting and setting up Multimedia Projectors NEC.



User manual for the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W

The user manual for the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The NEC NP-P451W 4500-Lumen Widescreen Multi-Region Installation Projector features a WXGA 1280 x 800 native resolution. For connectivity, it affords dual HDMI inputs with HDCP, a USB viewer, a VGA input and more. It also supports both wireless LAN and wired LAN connectivity. The projector provides up to 4500 lumens of brightness and a contrast ratio of 4000:1. The 6000 hour lamp life and filter life ensure a lower overall cost of ownership as well.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451WDownload user manual for NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W
(PDF file, 11.12 MB)
Additional parameters of the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W:
Specifications
    Image Display
    Display System 0.59" / 14.99 mm Micro Lens Array (MLA) LCD
    Native Resolution PC: WXGA - 1280 x 800
    Mac: WXGA - 1280 x 800
    Supported Resolutions VGA - 640 x 480
    SVGA - 800 x 600
    XGA - 1024 x 768
    SXGA - 1280 x 1024
    SXGA+ - 1400 x 1050
    UXGA - 1600 x 1200
    Format NTSC 4.43
    PAL 60, M, N
    SECAM
    HDTV Compatibility 1080p
    1080i
    720p
    576p
    576i
    480p
    480i
    Pixels 1,024,000
    Brightness Normal Mode: 4500 Lumens
    Eco Mode: 2700 Lumens
    Projection Angle 0.0 - 9.8° (Tele)
    0.0 - 16.5° (Wide)
    Aspect Ratio Native: 16:9
    Contrast Ratio 4000:1
    Scan Horizontal: 15 - 100 kHz
    Vertical: 50 - 120 Hz
    Lens
    Focus Manual
    Lens F 1.7 - 2.1 (f = 17.4 - 29 mm)
    Zoom 1.7x
    Throw Distance 2.3 - 47.8' (0.7 - 14.6 m)
    Throw Ratio 1.3 - 2.2:1
    Projection Size 25 - 300" / 63.50 - 762.00 cm
    Features
    Keystone Correction Auto: ± 30°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Projection Tilt Option Yes
    Built-in Speaker 16 W (Mono)
    Input/Output Connectors
    Inputs/Outputs 2x HDMI Audio/Video (Input)
    1x 15-pin VGA Video (Input)
    1x USB Type-A Female (Input)
    1x RCA Composite Video (Input)
    1x S-Video Video (Input)
    1x RCA Stereo (L/R) Audio (Input)
    2x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x 15-pin VGA Video (Output)
    1x Ethernet LAN
    1x USB Control
    1x RS-232C Control
    1x DDC/CI Control
    1x IR Control
    Wireless LAN Yes
    Sync Compatibility Separate Sync
    Composite Sync
    Sync on Green
    General
    Watts 270 W
    Eco Mode: 160 W
    Life Normal Mode: 3500 Hours
    Eco Mode: 6000 Hours
    Fan Noise Normal Mode: 37 dB
    Eco Mode: 30 dB
    Remote Control Yes
    System Requirements Windows

    Mac
    Power Requirements 100-240 VAC, 50/60 Hz
    Input Current 4.2 A / 1.7 A
    Power Consumption Normal Mode: 357 W
    Eco Mode: 231 W
    Standby Mode: 10 W
    Power Saving Mode: .2 W
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Humidity: 20 - 80%
    Storage
    14 to 122°F (-10 to 50°C)
    Humidity: 20 - 80%
    Dimensions (WxHxD) 15.7 x 4.5 x 11.1" / 398.0 x 115.0 x 282.0 mm
    Weight 9.0 lb / 4.08 kg
    Packaging Info
    Package Weight 12.5 lb
    Box Dimensions (LxWxH) 19.0 x 15.5 x 9.0"
    The user manual for the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W.

    The user manual lists all of the functions of the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC NP-P451W 4500-Lumen Widescreen Multi-Region NP-P451W. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
