User manual NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X

Operating instructions and pdf manual for use - NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X User manual, User manual NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X, NEC, NP-P501X, 5000-Lumen, Multi-Region, Installation, N


User manual for NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

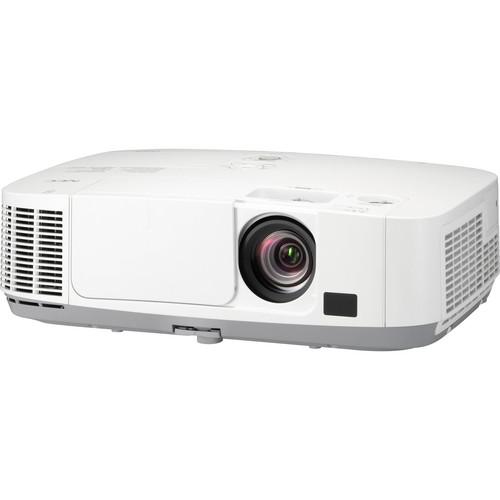

NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X, which address similar problems with connecting and setting up Multimedia Projectors NEC.



User manual for the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X

The user manual for the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The NEC NP-P501X 5000-Lumen Multi-Region Installation Projector features an XGA 1024 x 768 native resolution. For connectivity, it affords dual HDMI inputs with HDCP, a USB viewer, a VGA input and more. It also supports both wireless LAN and wired LAN connectivity. The projector provides up to 5000 lumens of brightness and a contrast ratio of 4000:1. The 6000 hour lamp life and filter life ensure a lower overall cost of ownership as well.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501XDownload user manual for NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X
(PDF file, 11.12 MB)
Additional parameters of the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X:
Image Display
Display System 0.63" / 16.00 mm Micro Lens Array (MLA) LCD
Native Resolution PC: XGA - 1024 x 768
Mac: XGA - 1024 x 768
Supported Resolutions VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 1080p
1080i
720p
576p
576i
480p
480i
Pixels 786,432
Brightness Normal Mode: 5000 Lumens
Eco Mode: 3000 Lumens
Projection Angle 0.0 - 16.5° (Wide)
0.0 - 9.8° (Tele)
Aspect Ratio Native: 4:3
Contrast Ratio 4000:1
Scan Horizontal: 15 - 100 kHz
Vertical: 50 - 120 Hz
Lens
Focus Manual
Lens F 1.7 - 2.1 (f = 17.4 - 29 mm)
Zoom 1.7x
Throw Distance 1.9 - 45.3' (0.6 - 13.8 m)
Throw Ratio 1.3 - 2.2:1
Projection Size 25 - 300" / 63.50 - 762.00 cm
Features
Keystone Correction Manual: ± 30°
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker 16 W (Mono)
Input/Output Connectors
Inputs/Outputs 2x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Input)
1x USB Type-A Female (Input)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x RCA Stereo (L/R) Audio (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 15-pin VGA Video (Output)
1x Ethernet LAN
1x USB Control
1x RS-232C Control
1x DDC/CI Control
1x IR Control
Wireless LAN Yes
Sync Compatibility Separate Sync
Composite Sync
Sync on Green
General
Watts 270 W
Eco Mode: 160 W
Life Normal Mode: 3500 Hours
Eco Mode: 6000 Hours
Fan Noise Normal Mode: 37 dB
Eco Mode: 30 dB
Remote Control Yes
System Requirements Windows

Mac
Power Requirements 100-240 VAC, 50/60 Hz
Input Current 4.2 A / 1.7 A
Power Consumption Normal Mode: 357 W
Eco Mode: 231 W
Standby Mode: 10 W
Power Saving Mode: .2 W
Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 20 - 80%
Dimensions (WxHxD) 15.7 x 4.5 x 11.1" / 398.0 x 115.0 x 282.0 mm
Weight 9.0 lb / 4.08 kg
Packaging Info
Package Weight 12.5 lb
Box Dimensions (LxWxH) 19.0 x 15.3 x 9.0"
The user manual for the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X.

The user manual lists all of the functions of the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC NP-P501X 5000-Lumen Multi-Region Installation NP-P501X. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
