User manual NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X

Operating instructions and pdf manual for use - NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X User manual, User manual NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X, NEC, V, Series, NP-V332X, 3300-Lumen, XGA, DLP, Projec


User manual for NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X

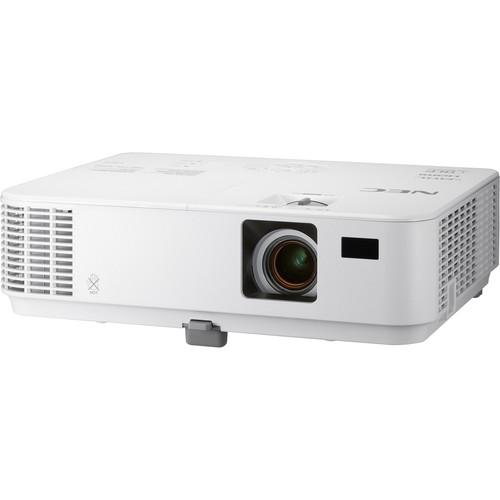

NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X, which address similar problems with connecting and setting up Multimedia Projectors NEC.



User manual for the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X

The user manual for the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

Display detailed images with the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector. It features 3300 lumens of brightness and a 10,000:1 contrast ratio with lamp control. Additionally, this projector sports an XGA 1024 x 768 native resolution for viewing detailed content and supports up to Full HD 1920 x 1080 video signals. The NP-V332X is powered by a DLP display system, and the lamp features a long life of up to 6000 hours in ECO Mode. You can use the NP-V332X to project up to a 300" diagonal screen size, and it features a 1.95 to 2.15:1 throw ratio.

With composite video, VGA, and dual HDMI inputs, this projector is well-equipped for external video sources. As an added convenience, a VGA cable is included. It also support MHL connectivity via HDMI, allowing you to mirror and charge compatible mobile devices. Other features include a 0.35W standby power consumption level and a 1.1x zoom with ten-step image magnification.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332XDownload user manual for NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X
(PDF file, 8.4 MB)
Additional parameters of the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X:
Specifications
Image Display
Display System 1-Chip 0.65" / 1.65 cm DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions VGA
SVGA
XGA
SXGA
SXGA+
UXGA
Full HD 1080p
Format NTSC
NTSC 4.43
PAL
PAL 60, M, N
SECAM
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Brightness Normal Mode: 3300 Lumens
Eco Mode: 2640 Lumens
Projection Angle 12.8° (Tele)
14.0° (Wide)
Contrast Ratio 10000:1
DLP Link 3D Yes
Scan Horizontal: 15 - 100 kHz or 24 kHz
Vertical: 50 - 120 Hz or 24 Hz
Lens
Focus Manual
Lens F 2.41 - 2.55 (f = 21.8 - 24.0 mm)
Zoom Manual: 1.1x
Throw Distance 3.94 - 39.4' (1.2 - 12.0 m)
Throw Ratio 1.95 - 2.15:1
Projection Size 30 - 300" / 76.20 - 762.00 cm
Features
Keystone Correction Manual: Yes, Horizontal: ± 30°
Manual: Yes, Vertical: ± 30°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-in Speaker Yes, 8 W (Mono)
Closed Captioning Yes
Input/Output Connectors
Inputs/Outputs 1x Mini-USB Service
1x Ethernet Control
1x HDMI Audio/Video (Input)
1x HDMI with MHL Support Audio/Video (Input)
1x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Output)
1x RS-232C Control
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
Wireless LAN None
Sync Compatibility Separate Sync
Composite Sync
Sync on Green
General
Replacement Lamp NP35LP
Watts Eco Mode: 170 W
Normal Mode: 218 W
Life Eco Mode: 6000 Hours
Normal Mode: 3500 Hours
Fan Noise Normal Mode: 35 dB
Eco Mode: 32 dB
Remote Control Yes
Security Cable Lock Slot
System Requirements Windows

Mac
Languages Not Specified By Manufacturer
Power Requirements 100-240 VAC, 50/60 Hz
Input Current 2.8 A / 1.1 A
Power Consumption Normal Mode: 275 W
Eco Mode: 213 W
Standby Mode: 3.0 W
Standby Mode (Eco): 0.5 W
Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 80%
Storage
14 to 122°F (-10 to 50°C)
Humidity: 0 - 80%
Dimensions (WxHxD) 12.8 x 4.0 x 9.8" / 324.0 x 101.0 x 250.0 mm
Weight 6.2 lb / 2.81 kg
Packaging Info
Package Weight 10.0 lb
Box Dimensions (LxWxH) 20.0 x 12.0 x 8.0"
The user manual for the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X.

The user manual lists all of the functions of the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC V Series NP-V332X 3300-Lumen XGA DLP Projector NP-V332X. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
