User manual Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG

Operating instructions and pdf manual for use - Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG User manual, User manual Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG, Neutrik, Grounded, BNC, Chassis, Connector, with, D-


User manual for Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG

Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG
  • Manufacturer: Neutrik
  • Basic description and contents of package
  • Product classification: Professional Video - Cables - Video Adapters
  • Safety instructions
  • Startup and operation of the video adapters
  • Tips for setting up your Neutrik
  • Settings and expert assistance
  • Contact Neutrik service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG, which address similar problems with connecting and setting up Video Adapters Neutrik.



User manual for the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG

The user manual for the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG provides necessary instructions for the proper use of the product Professional Video - Cables - Video Adapters.

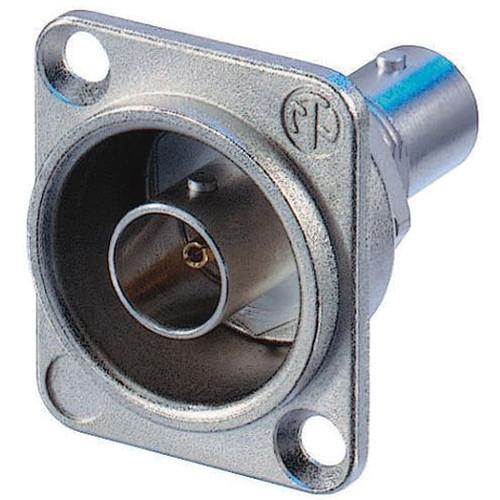

The Grounded BNC Chassis Connector with D-Shape Housing (Nickel) from Neutrik is a feed-through connector which offers a true 75 Ω design for serial and digital (HD) signals. It features a machined brass connector body that provides an extremely rugged and non-abrasive connection over long term use. In addition, it is recessed and therefore well protected in a D-shape housing (audio industry standard).
If you own a Neutrik video adapters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG:
Specifications
    Connection Type Female BNC 75 Ω
    Electrical
    Signal Type HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV, HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
    Contact Resistance ≤ 3 m Ω (inner)
    Comment ≤ 2
    Dielectric Strength 1.5 kV DC
    Impedance 75 Ω
    Insulation Resistance > 5 G Ω
    Rated Voltage 500 V
    VSWR ≤ 1.03 / > 37 dB up to 1 GHz
    ≤ 1.05 / > 32 dB up to 2 GHz
    ≤ 1.08 / > 28 dB u
    Mechanical
    Insertion Force < 25 N
    Lifetime > 1000 mating cycles
    Locking Device Bayonet
    Mounting Direction Front
    Chassis D-shape
    Materials
    Contacts Brass, 0.2 µm AuCo (center contact)
    Insert PTFE
    Shell Polyacetal (POM) (insulation shell)
    Shell Plating Optalloy
    Housing D-shape: Zinc diecast gal nickel plating
    Environmental
    Standard Compliance IEC 6016908, MIL 348A
    Temperature Range -22 to 185°F (-30 to 85°C)
    Packaging Info
    Package Weight 0.1 lb
    Box Dimensions (LxWxH) 1.2 x 1.0 x 1.0"
    The user manual for the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG can be downloaded in .pdf format if it did not come with your new video adapters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Neutrik users keep a unique electronic library for Neutrik video adapterss, where you can use our link to download the user manual for the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG.

    The user manual lists all of the functions of the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG, all the basic and advanced features and tells you how to use the video adapters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Neutrik service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Neutrik Grounded BNC Chassis Connector with D-Shape NBB75DFG. User manuals are also available on the Neutrik website under Professional Video - Cables - Video Adapters.
