User manual for the NewTek TriCaster 410 (Educational Edition) FG-000718-R001
The user manual for the NewTek TriCaster 410 (Educational Edition) FG-000718-R001 provides
necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

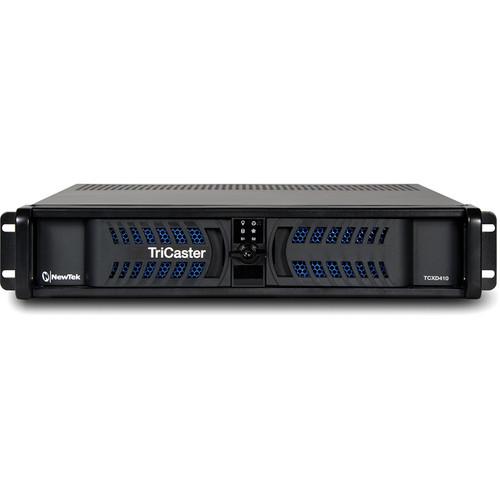

The NewTek TriCaster 410 (Educational Edition) is an all-in-one, 4-camera SDI production solution that allows you to simultaneously broadcast, project, stream, and record. With the TriCaster 410 you get all the gear you need in an all-in-one, 2RU system that's easy to use and ready to travel. This discounted educational edition is available for accredited educators and institutions.
Built for live event producers and web casters on-the-move, the TriCaster 410 delivers a full live production package. Create high-quality shows with custom visuals like 3D holographic virtual sets, and improve your workflow with a wide variety of productivity enhancing tools. Providing creative flexibility, but staying free of workflow and post-production extras, the TriCaster 410 cuts down equipment expenditure to fit your business needs.
You have many choices for handling live operations with compatible TriCaster and third party control surfaces along with support for breakout control of audio, camera, key commands, and even on-camera sequence triggering. The TriCaster 410 gives you complete control, whether you are producing for broadcast, streaming live to the Web, projecting to a big screen, creating an engaging second-screen experience, or all of the above. Included with the unit is a keyboard, mouse, power cord, four rubber feet for desktop use, two set of keys, and a BNC removal tool.
If you own a NewTek production switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NewTek TriCaster 410 (Educational Edition) FG-000718-R001 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NewTek TriCaster 410 (Educational Edition) FG-000718-R001:
| Switcher || 15 Channels: |
4 M/E buses
| Video Input || 4 x SDI |
| Network Sources || 2 live inputs via RJ-45 Gigabit Ethernet connection |
Selectable from any available network sources with support for video, audio, and alpha channel
| Robotic Camera Support || Up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols |
Preset system and user interface control over camera orientation, zoom, focus, and iris
| Media || 4 integrated digital media sources for video, graphics and sounds |
2 x DDRs 1 x GFX 1 x Sound
| Encoding Formats || 2 primary DSK channels |
1 additional key layer per M/E bus, each with independent transition controls, 3D DVE, scaling, cropping, and integrated TransWarp effects
| Hotspots || Up to 8 freely configurable, interactive hotspots per input for macro control |
| Video Output || Configurable for up to 5 output connections, with support for key output and per-connection signal settings |
2 x SDI
1 x HDMI output
| Recording || QuickTime (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio) |
MPEG-2 (high or normal profile)
H.264 (high or web quality)
| Media Publishing || Direct content upload to YouTube, Facebook, Twitter, FTP, local or external volumes, and network servers |
| Live Streaming || HD live streaming with simultaneous archive |
Presets in up to 720p
| Audio Inputs || 4 x SDI embedded |
1 x L/R balanced XLR (mic/line)
1 x L/R balanced 1/4" (mic/line)
| Audio Outputs || 2 x SDI embedded |
1 x L/R balanced XLR
1 x 2 balanced 1/4" (AUX)
1 x Stereo 1/4" (phones)
| Supported Formats || NTSC Model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i |
| Playback Media Formats || AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes) |
| Export Media Formats || Apple ProRes, AVI, DV, DVCPro, DVD, H.264, MOV, MPEG-2, MJPEG, MP4, WebM and more |
| Monitoring || For user interface and multi-view displays |
1 x DVI
1 x HDMI
| Signal Monitoring || Integrated waveform and vectorscope |
Full field rate with digital calibration
Support for ITU-R Rec. 601 and 709
| Latency || Ultra-low, between 1 and 2 frames |
| Processing || Video: 4:4:4, 32-bit floating point |
Audio: 4 channels, 96 kHz, 32-bit floating point
| Standards || A/V Standards: HD-SDI video conforms to SMPTE 292M |
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
| MIDI || Support for standard MIDI protocol enabling third-party MIDI device control of TriCaster operations via macros |
| Power Supply || 430 W |
| Rack Mountable || 2RU rack mount, with 430 W power supply and multi-tiered hardware and software fail-safe |
| Dimensions || 19.0 x 3.5 x 21.5" (48.3 x 8.9 x 54.6 cm) |
| Package Weight || 39.35 lb |
| Box Dimensions (LxWxH) || 25.8 x 25.0 x 9.8" |
