User manual for Nord Piano 2 HA88 NPIANO2-HA88

Nord  Piano 2 HA88 NPIANO2-HA88
  • Manufacturer: Nord
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Stage Pianos & Organs
  • Safety instructions
  • Startup and operation of the stage pianos & organs
  • Tips for setting up your Nord
  • Settings and expert assistance
  • Contact Nord service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Nord Piano 2 HA88 NPIANO2-HA88, which address similar problems with connecting and setting up Stage Pianos & Organs Nord.



User manual for the Nord Piano 2 HA88 NPIANO2-HA88

The user manual for the Nord Piano 2 HA88 NPIANO2-HA88 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Stage Pianos & Organs.

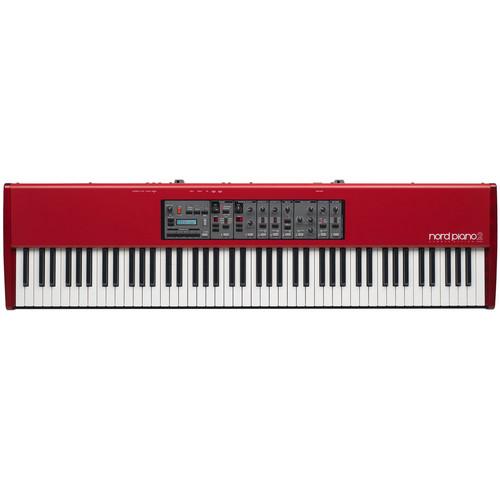

The Piano 2 HA88 by Nord is a professional, 88 key stage piano with hammer action, weighted keys and over 1000 high-end piano and synth sounds from Nord's exclusive sound libraries. It offers several new features that its older brother the Nord Piano didn't have including Split and Layer functionality, Long Release, Sample Library Memory, Transpose plus Stereo Auto-wah, Stereo Phaser, Delay, Tube Distortion and more.
If you own a Nord stage pianos & organs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nord Piano 2 HA88 NPIANO2-HA88 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nord Piano 2 HA88 NPIANO2-HA88:
Specifications
    Display LCD
    Sound Banks 2 with 24 pages each, 5 programs - 240 locations
    Live Mode 5 live programs
    Global Transpose +/- 6 semitones
    Program Transpose +/- 6 semitones
    Fine-tune +/- 50 Cents
    Touch Sensitivity 4 velocity response curves
    Split Yes, with electable split point
    Layers Yes
    Piano 6 types - Grand, Upright, Electric Piano 1, Electric Piano 2, Clavinet and Harpsichord. Each category can contain up to 9 different models.
    40/60 Voices Polyphony (stereo/mono pianos)
    Advanced String Resonance (Generation 2) - adjustable amount
    Selectable Long Release for Grand, Upright, Electric Pianos and Harpsichord
    Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable
    Octave Transpose: -1/+1
    Sample Synth Up to 99 sample instruments
    16 Voices Polyphony
    Attack and Release controls
    Octave Transpose: -1/+3
    Sustenuto pedal can be set as sustain or gate pedal for the Sample Synth section
    Volume controllable with Volume Pedal (not included)
    Effects Effect 1 - Pan, Tremolo, Stereo Auto-wah. Three selectable depths for the pan and tremolo, rate controlled with the Effect 1 Rate knob
    Effect 2 - Stereo Phaser, Flanger and Chorus. Three selectable depths, rate controlled with the Effect 2 Rate knob
    Delay - Four levels of feedback amount, Dry/Wet adjustment. Tempo can be set manually or with Tap Tempo button. Range: 20 ms ~ 750 ms
    Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation (100 Hz, 4 kHz and 200 Hz ~ 8 kHz)
    Comp/Amp - Twin, JC, Small (mono), Tube distortion (stereo) and compressor (stereo). Drive/compression amount controlled with the Drive knob.
    Reverb with six algorithms - Room 1 & 2, Stage 1 & 2, Hall 1 & 2, Dry/Wet control
    Each effect can be assigned to either Piano or Sample Synth section
    Inputs 1 x monitor input - 1/8" (3.5mm) stereo jack 1 x piano pedal input - 1/4" (6.35mm) jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc 1 x volume pedal input - 1/4" (6.35mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
    Outputs 2 x audio outputs L & R - 1/4", (6.35mm) jacks, unbalanced 1 x headphone output - 1/4", (6.35mm) stereo jack
    MIDI MIDI In, MIDI Out - 5 pin DIN connectors
    USB Type B, sound transfer and USB-MIDI
    Power IEC320 C18 connector
    Dimensions Piano: 50.7 x 4.8 x 13.4" (128.7 x 12.1 x 34 cm)
    Pedal: 10.4 x 8.8 x 2.8" (26.4 x 22.4 x 7 cm)
    Weight Piano:40.3 lb (18.27 kg)
    Pedal: 4.4 lb (2 kg)
    Packaging Info
    Package Weight 55.5 lb
    Box Dimensions (LxWxH) 59.5 x 19.0 x 10.5"
    The user manual for the Nord Piano 2 HA88 NPIANO2-HA88 can be downloaded in .pdf format if it did not come with your new stage pianos & organs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nord users keep a unique electronic library for Nord stage pianos & organss, where you can use our link to download the user manual for the Nord Piano 2 HA88 NPIANO2-HA88.

    The user manual lists all of the functions of the Nord Piano 2 HA88 NPIANO2-HA88, all the basic and advanced features and tells you how to use the stage pianos & organs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nord service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nord Piano 2 HA88 NPIANO2-HA88. User manuals are also available on the Nord website under Pro Audio - Musical Instruments - Stage Pianos & Organs.
